PPC-5152-D525 Flat-bezel Panel PC
PPC-5152-D525 Panel PC
MODEL:
PPC-5152-D525
Flat-bezel Panel PC with Touch Screen and Intel® Atom™ CPU,
USB 3.0, Dual Combo (SFP Fiber/RJ-45) Gigabit LAN, Audio,
RS-232/422/485, RoHS Compliant, IP 65 Protection
User Manual
Page i
Rev. 1.10 – 13 November, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-5152-D525 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PPC-5152-D525

Summary of Contents for IEI Technology PPC-5152-D525

  • Page 1 PPC-5152-D525 Flat-bezel Panel PC PPC-5152-D525 Panel PC MODEL: PPC-5152-D525 Flat-bezel Panel PC with Touch Screen and Intel® Atom™ CPU, USB 3.0, Dual Combo (SFP Fiber/RJ-45) Gigabit LAN, Audio, RS-232/422/485, RoHS Compliant, IP 65 Protection User Manual Page i Rev. 1.10 – 13 November, 2013...
  • Page 2 PPC-5152-D525 Flat-bezel Panel PC Revision Date Version Changes 13 November, 2013 1.10 Updated for R11 version 4 July, 2012 1.02 Modified Table 3-4: RS-232/422/485 Serial Port Pinouts Added caution messages regarding the expansion card dimensions in Section 3.8 and Section 3.9 8 December, 2011 1.01...
  • Page 3 PPC-5152-D525 Flat-bezel Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 PPC-5152-D525 Flat-bezel Panel PC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    PPC-5152-D525 Flat-bezel Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 E ....................4 XTERNAL VERVIEW 1.4.1 Front Panel ......................4 1.4.1.1 LED Indicators.................... 5 1.4.2 Bottom Panel......................
  • Page 6 PPC-5152-D525 Flat-bezel Panel PC 3.10.1 Arm Mounting ....................32 3.10.2 Panel Mounting....................34 3.10.3 Rack/Cabinet Mounting ................. 36 3.10.4 Stand Mounting ....................38 3.10.5 Wall Mounting....................39 3.11 B ................42 OTTOM ANEL ONNECTORS 3.11.1 Audio Connectors ................... 42 3.11.2 LAN Connector....................43 3.11.3 Power Input, 2-pin Terminal Block ..............
  • Page 7 PPC-5152-D525 Flat-bezel Panel PC 5.1.2 Using Setup ...................... 66 5.1.3 Getting Help..................... 67 5.1.4 BIOS Menu Bar....................67 5.2 M ........................68 5.3 A ....................... 69 DVANCED 5.3.1 ACPI Settings ....................69 5.3.2 CPU Configuration..................71 5.3.3 IDE Configuration ................... 72 5.3.4 USB Configuration...................
  • Page 8 PPC-5152-D525 Flat-bezel Panel PC B ONE KEY RECOVERY ....................119 B.1 O ..............120 ECOVERY NTRODUCTION B.1.1 System Requirement..................121 B.1.2 Supported Operating System ................. 122 B.2 S ................ 123 ETUP ROCEDURE FOR INDOWS B.2.1 Hardware and BIOS Setup ................124 B.2.2 Create Partitions ...................
  • Page 9 PPC-5152-D525 Flat-bezel Panel PC C.2.2 Cleaning Tools....................164 D WATCHDOG TIMER ....................165 E HAZARDOUS MATERIALS DISCLOSURE ............168 E.1 H IPB P AZARDOUS ATERIAL ISCLOSURE ABLE FOR RODUCTS ERTIFIED AS HS C 2002/95/EC W ........169 OMPLIANT NDER ITHOUT...
  • Page 10 Figure 3-15: VESA Compliant Arm....................32 Figure 3-16: Arm Mounting Retention Screw Holes..............33 Figure 3-17: Suggested Panel Cut Out Size for PPC-5152-D525 (Unit: mm) ......34 Figure 3-18: Panel Mounting Clamp Slots (Side View) .............35 Figure 3-19: Tighten the Panel Mounting Clamp Screws ............36 Figure 3-20: The Rack/Cabinet Bracket..................37...
  • Page 11 PPC-5152-D525 Flat-bezel Panel PC Figure 3-22: Install into a Rack/Cabinet ..................38 Figure 3-23: VESA Compliant Stand...................38 Figure 3-24: Stand Mounting Retention Screw Holes...............39 Figure 3-25: Wall-mounting Bracket ...................40 Figure 3-26: Chassis Support Screws ..................41 Figure 3-27: Secure the Panel PC ....................42 Figure 3-28: RJ-45 Ethernet Connector..................43...
  • Page 12 PPC-5152-D525 Flat-bezel Panel PC Figure 6-7: Graphics Driver Read Me File ................100 Figure 6-8: Graphics Driver Setup Files Extracted ..............100 Figure 6-9: Graphics Driver Welcome Screen ................ 101 Figure 6-10: Graphics Driver License Agreement..............101 Figure 6-11: Graphics Driver Read Me File ................102 Figure 6-12: Graphics Driver Setup Operations ..............
  • Page 13 PPC-5152-D525 Flat-bezel Panel PC Figure B-8: Building the Recovery Partition................130 Figure B-9: Press Any Key to Continue .................. 130 Figure B-10: Press F3 to Boot into Recovery Mode............... 131 Figure B-11: Recovery Tool Menu ................... 131 Figure B-12: About Symantec Ghost Window ................ 132 Figure B-13: Symantec Ghost Path ..................
  • Page 14 PPC-5152-D525 Flat-bezel Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: LED Indicators ......................6 Table 1-3: System Specifications....................14 Table 3-1: LAN Pinouts ........................43 Table 3-2: RJ-45 Ethernet Connector LEDs ................43 Table 3-3: RS-232 Serial Port Pinouts ..................46 Table 3-4: RS-232/422/485 Serial Port Pinouts ................47...

  • Page 15: Introduction

    PPC-5152-D525 Falt-bezel Panel PC Chapter Introduction Page 1...

  • Page 16: Overview

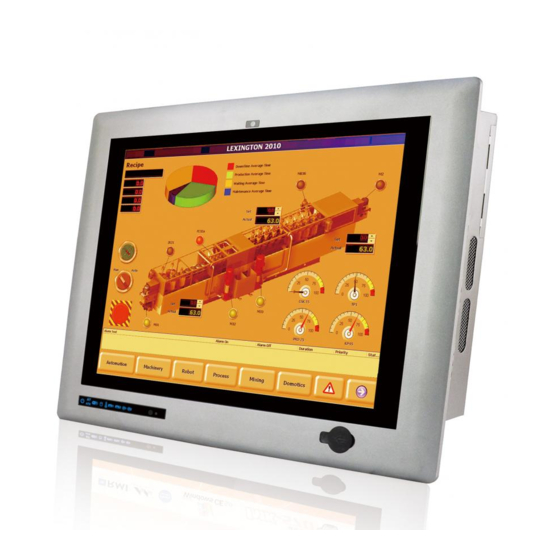

    1.1 Overview Figure 1-1: PPC-5152-D525 Panel PC The fanless PPC-5152-D525 is Intel® Atom™ D525 powered flat-bezel panel PC with a rich variety of functions and peripherals. The PPC-5152-D525 panel PC is designed for easy and simplified integration in to various applications.

  • Page 17: Model Variations

    One PCI slot and one PCIe x1 slot Table 1-1: Model Variations 1.3 Features All the PPC-5152-D525 models feature the following: 15'' 400nits 1024 x 768 LCD with LED backlight 5-wire resistive type touch screen Fanless system with 1.8GHz Intel® Atom™ D525 dual-core processor...

  • Page 18: External Overview

    1.4.1 Front Panel The front side of the PPC-5152-D525 is a flat panel TFT LCD screen surrounded by an aluminum frame. At the top of the front panel features one 2-megapixel webcam that supports auto-exposure (AE) and auto white balance (AWB). The front panel also has following connector, LED indicators and sensors: One USB 2.0 port...

  • Page 19: Led Indicators

    PPC-5152-D525 Falt-bezel Panel PC Figure 1-2: Front View 1.4.1.1 LED Indicators The LED indicators on the front panel of the PPC-5152-D525 are shown below. Figure 1-3: LED Indicators The descriptions of each LED indicator are listed below. Page 5...

  • Page 20: Bottom Panel

    PPC-5152-D525 Falt-bezel Panel PC LED Indicator Description Power Power on. AT/ATX Power Mode Shows the power mode status. Controlled by the AT/ATX power mode switch on the bottom panel. Wi-Fi The Wi-Fi module is enabled or disabled. Controlled by the BIOS (see Section 5.4.2).

  • Page 21: Figure 1-4: Bottom View

    PPC-5152-D525 Falt-bezel Panel PC 2 x RS-232 serial port connector (COM1, COM2) 1 x RS-232/422/485 serial port (COM3) connector 2 x RS-422/485 COM ports by RJ-45 connectors (COM4, COM5) 2 x USB 2.0 connectors 2 x USB 3.0 connectors 1 x VGA connector...

  • Page 22: Side Panels

    PPC-5152-D525 Falt-bezel Panel PC NOTE: The PPC-5152-D525 provides two pairs of combo LANs, one is SFP fiber and the other is GbE. For each pair of combo LAN, only one LAN port can work at one time, and the SFP Fiber port works prior to the RJ-45 one.

  • Page 23: Top Panel

    PPC-5152-D525 Falt-bezel Panel PC 1.4.4 Top Panel The top panel of the flat panel PC have some vents for ventilation and slots for installing the panel mounting clamps. The model with wireless LAN module also includes two wireless LAN antenna connectors on the top panel ( F igure 1-5).

  • Page 24: Backplane Options

    PPC-5152-D525 Falt-bezel Panel PC 1.5 Backplane Options The backplane options of the PPC-5152-D525 are shown below. Figure 1-8: Backplane Option 1 (HPE-2S1) Figure 1-9: Backplane Option 2 (HPE-2S2) The rated voltage and current of the backplane are listed below: Rated Voltage...

  • Page 25: Dimensions

    PPC-5152-D525 Falt-bezel Panel PC 1.6 Dimensions The dimensions of the PPC-5152-D525 are shown in F igure 1-10 and listed below. 5 5 6 Figure 1-10: PPC-5152-D525 Dimensions (mm) Page 11...

  • Page 26: Specifications

    PPC-5152-D525 Falt-bezel Panel PC 1.7 Specifications The technical specifications for the PPC-5152-D525 system are listed in T able 1-3. 5 5 6 Specification PPC-5152-D525 LCD Size 15” Max. Resolution 1024 x 768 (XGA) Brightness 400 cd/m Contrast Ratio 500:1 LCD Color 16.2 M...
  • Page 27 PPC-5152-D525 Falt-bezel Panel PC Wireless LAN Optional 802.11b/g/n wireless module Audio 2 x Audio speakers 1 x Line-out connector 1 x Mic-in connector Expansion Two PCI slots or One PCI slot and one PCIe x1 slot Construction Material Aluminum (front panel)

  • Page 28: Table 1-3: System Specifications

    PPC-5152-D525 Falt-bezel Panel PC Power Requirement DC input: Terminal block: 9 V ~ 36 V DC jack: 9 V ~ 36 V Power Consumption 50 W (without add-on card) I/O Ports and Switches 1 x 9~36 V DC In terminal block...

  • Page 29: Unpacking

    PPC-5152-D525 Falt-bezel Panel PC Chapter Unpacking Page 15...

  • Page 30: Unpacking

    PPC-5152-D525 Falt-bezel Panel PC 2.1 Unpacking To unpack the flat panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the panel PC has been properly installed.

  • Page 31: Packing List

    PPC-5152-D525 Falt-bezel Panel PC 2.2 Packing List The PPC-5152-D525 panel PC is shipped with the following components: Quantity Item Image PPC-5152-D525 panel PC Power adapter (P/N: 63040-010090-020-RS) Power cord (P/N: 32702-000401-100-RS) Power transfer cord (P/N: 32000-089400-RS) RJ-45 to DB-9 COM port cable...
  • Page 32 PPC-5152-D525 Falt-bezel Panel PC HDD installation screws (M3*4) (P/N: 44043-030051-RS) VESA mount screws (M4*6) (P/N: 44033-040062-RS) Backup chassis screws (M3*4) (P/N: 44013-030041-RS) Backup capture card screws (M3*6) (P/N: 44003-030062-RS) Panel mounting clamps (P/N: 19Z00-000024-RS) Touch pen (P/N: 43125-0002C0-00-RS) User manual CD and driver CD...

  • Page 33: Installation

    PPC-5152-D525 Falt-bezel Panel PC Chapter Installation Page 19...

  • Page 34: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-5152-D525. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PPC-5152-D525 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered Wear an anti-static wristband: - Wearing a simple anti-static wristband can help to prevent ESD from damaging the board.

  • Page 35: Preinstalled Components

    PPC-5152-D525 Falt-bezel Panel PC configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband. 3.3 Preinstalled Components The following components are all preinstalled. Motherboard TFT LCD screen DDR3 memory module Resistive type touch screen...

  • Page 36: Usb Devices Installation (Internal)

    Step 3: 3.5 USB Devices Installation (Internal) The PPC-5152-D525 has one internal USB 2.0 port inside the chassis. This USB port is reserved for the USB encryption card, which provides software developers an intelligent software protection tool. The software and data protection can prevent intelligent property from being used illicitly.

  • Page 37: Figure 3-3: Remove The Internal Usb Port Access Panel

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-3: Remove the Internal USB Port Access Panel Locate the internal USB port. See Step 2: F igure 3-4. 5 5 6 Figure 3-4: Internal USB Port Location Install the USB dongle. Correctly align the USB dongle with the connector and Step 3: insert the USB dongle into the connector.

  • Page 38: Sfp Optical Module Installation (Optional)

    PPC-5152-D525 Falt-bezel Panel PC 3.6 SFP Optical Module Installation (Optional) The following SFP optical module can be purchased separately. Figure 3-5: SFP Optical Module To install the SFP optical module, please follow the steps below: Locate the SFP fiber connectors. The locations of the connectors are shown in Step 1: F igure 1-4.

  • Page 39: Hdd Installation

    SFP module into the SFP connector 2. 3.7 HDD Installation The PPC-5152-D525 has one internal HDD bay. To install the HDD, follow the instructions below. Remove a total of ten retention screws from the back cover, eight on the rear of...

  • Page 40: Figure 3-8: Hdd Bracket Retention Screws

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-8: HDD Bracket Retention Screws Lift the HDD bracket out of the PPC-5152-D525. Step 3: Remove the SATA connector from the bracket by removing the two retention Step 4: screws on the bottom of the bracket.

  • Page 41: Figure 3-10: Hdd Bracket Installation

    PPC-5152-D525 Falt-bezel Panel PC Secure the HDD bracket with the PPC-5152-D525 by the four retention screws Step 7: that were previously removed ( F igure 3-10). Figure 3-10: HDD Bracket Installation Connect the SATA cable and the SATA power cable to the corresponding Step 8: connectors on the motherboard.

  • Page 42: Pci Expansion Card Installation

    PPC-5152-D525 Falt-bezel Panel PC 3.8 PCI Expansion Card Installation CAUTION: The maximum dimensions of the expansion card should be 200 mm in length, 100 mm in width and 20 mm in height. The width of the I/O panel should be no more than 73.8 mm. The diagram below shows the dimensions of the expansion slot on the bottom panel of the PPC-5152-D525.

  • Page 43: Figure 3-11: Expansion Slot Retention Screw

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-11: Expansion Slot Retention Screw Insert the expansion card. Align the PCI expansion card edge connector with the Step 3: PCI expansion slot on the PCI riser card. Gently insert the PCI card into the PCI expansion slot.

  • Page 44: Pcie Expansion Card Installation (Optional)

    PPC-5152-D525 Falt-bezel Panel PC 3.9 PCIe Expansion Card Installation (Optional) CAUTION: The maximum dimensions of the expansion card should be 200 mm in length, 100 mm in width and 20 mm in height. The width of the I/O panel should be no more than 73.8 mm. The diagram below shows the dimensions of the expansion slot on the bottom panel of the PPC-5152-D525.

  • Page 45: Figure 3-13: Expansion Slot Retention Screw

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-13: Expansion Slot Retention Screw Insert the expansion card. Align the PCIe expansion card edge connector with Step 3: the PCIe expansion slot on the PCIe riser card. Gently insert the PCIe card into the PCIe expansion slot.

  • Page 46: Mounting The System

    Wall mounting The mounting methods are described below. 3.10.1 Arm Mounting The PPC-5152-D525 can be installed on any arm that supports the standard VESA mounting interface. An example arm is shown below. Figure 3-15: VESA Compliant Arm To install the PPC-5152-D525 on the arm, follow the directions below.

  • Page 47: Figure 3-16: Arm Mounting Retention Screw Holes

    PPC-5152-D525 Falt-bezel Panel PC NOTE: Make sure the arm supports standard VESA mounting. The PPC-5152-D525 uses a VESA mounting to attach to the arm. The arm is purchased separately. Follow the instructions in the arm's user Step 1: manual to securely attach the arm to the wall.

  • Page 48: Panel Mounting

    PPC-5152-D525 Falt-bezel Panel PC 3.10.2 Panel Mounting To mount the PPC-5152-D525 flat panel PC into a panel, please follow the steps below. Select the position in the panel to mount the panel PC. Step 1: Cut out a section from the panel that corresponds to the dimensions of the flat Step 2: panel PC chassis.

  • Page 49: Figure 3-18: Panel Mounting Clamp Slots (Side View)

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-18: Panel Mounting Clamp Slots (Side View) Tighten the screws that pass through the panel mounting clamps until the plastic Step 5: caps at the front of all the screws are firmly secured to the panel ( F igure 3-19).

  • Page 50: Rack/Cabinet Mounting

    Figure 3-19: Tighten the Panel Mounting Clamp Screws 3.10.3 Rack/Cabinet Mounting The PPC-5152-D525 panel PC can be installed into a rack or cabinet. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below:...

  • Page 51: Figure 3-20: The Rack/Cabinet Bracket

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-20: The Rack/Cabinet Bracket Insert the rack mounting clamps into the pre-formed holes along the edges of Step 2: the panel PC, behind the ABS/PC plastic frame. Tighten the screws that pass through the rack mounting clamps until the plastic...

  • Page 52: Stand Mounting

    (Figure 3-22). 3.10.4 Stand Mounting The PPC-5152-D525 can be installed on any stand that supports the standard VESA mounting interface. An example stand is shown below. Figure 3-23: VESA Compliant Stand To install the PPC-5152-D525 on the stand, follow the directions below.

  • Page 53: Wall Mounting

    PPC-5152-D525 Falt-bezel Panel PC Locate the screw holes on the rear of the PPC-5152-D525. This is where the Step 1: stand bracket will be attached. The stand mount retention screw holes are shown in Figure 3-24. Figure 3-24: Stand Mounting Retention Screw Holes Align the bracket with the screw holes.

  • Page 54: Figure 3-25: Wall-Mounting Bracket

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-25: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mounting kit into the Step 6: four screw holes on the real panel of the flat panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-26).

  • Page 55: Figure 3-26: Chassis Support Screws

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-26: Chassis Support Screws NOTE: In the diagram below the bracket is already installed on the wall. Secure the panel PC by fastening the retention screw of the wall-mounting Step 9: bracket. (Figure 3-27). Step 9:...

  • Page 56: Bottom Panel Connectors

    Figure 3-27: Secure the Panel PC 3.11 Bottom Panel Connectors The bottom panel of the PPC-5152-D525 contains I/O connectors, switches and a CF card slot. Detailed descriptions of the connectors can be found in the subsections below. 3.11.1 Audio Connectors The audio jacks connect to external audio devices.

  • Page 57: Lan Connector

    100 Mb/s orange: 1000 Mb/s Table 3-2: RJ-45 Ethernet Connector LEDs To connect the PPC-5152-D525 to a network through the RJ-45 LAN connector, follow the steps below. Locate the RJ-45 connector. The location of the RJ-45 connectors is shown in Step 1: F igure 1-4.

  • Page 58: Power Input, 2-Pin Terminal Block

    PPC-5152-D525 Falt-bezel Panel PC Align the connectors. Align the RJ-45 connector on the LAN cable with one of Step 2: the RJ-45 connectors on the PPC-5152-D525. See F igure 3-29. Figure 3-29: LAN Connection Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable Step 3: RJ-45 connector into the on-board RJ-45 connector.

  • Page 59: Power Input, Din Connector

    PPC-5152-D525 Falt-bezel Panel PC Figure 3-30: 2-pin Terminal Block Pinouts The PPC-5152-D525 comes with a pluggable DC-in terminal block. To install the terminal block into the power input connector, follow the steps below. Locate the 2-pin power input connector. The location of the power input...

  • Page 60: Serial Port (Com1, Com2)

    PPC-5152-D525 Falt-bezel Panel PC The power connector connects to the 9 V ~ 36 V DC power adapter. 3.11.5 RS-232 Serial Port (COM1, COM2) CN Label: COM1, COM2 DB-9 connector CN Type: CN Location: F igure 1-4 CN Pinouts: T able 3-4 and F igure 3-33 An RS-232 device can be connected to the RS-232 serial port on the bottom panel.

  • Page 61: Rs-232/422/485 Serial Port (Com3)

    PPC-5152-D525 Falt-bezel Panel PC 3.11.6 RS-232/422/485 Serial Port (COM3) CN Label: COM3 DB-9 connector CN Type: CN Location: F igure 1-4 CN Pinouts: T able 3-4 and F igure 3-33 An RS-232/422/485 device can be connected to the RS-232/422/485 serial port on the bottom panel.

  • Page 62: Com3 Mode Select Switch

    PPC-5152-D525 Falt-bezel Panel PC Insert the serial connector. Insert the DB-9 connector of a serial device into the Step 2: DB-9 connector on the external peripheral interface. See F igure 3-34. Figure 3-34: Serial Device Connector Secure the connector. Secure the serial device connector to the external Step 3: interface by tightening the two retention screws on either side of the connector.

  • Page 63: Rs-422/485 Serial Port (Com4, Com5)

    PPC-5152-D525 Falt-bezel Panel PC The COM3 RS-232/422/485 Serial Port Select jumper location is shown in F igure 3-35. Figure 3-35: COM3 RS-232/422/485 Serial Port Select Switch Location 3.11.7 RJ-45 RS-422/485 Serial Port (COM4, COM5) CN Label: COM4, COM5 RJ-45 CN Type:...

  • Page 64: Figure 3-37: Rj-45 Rs-422/485 Serial Device Connection

    F igure 1-4. Insert the RJ-45 connector. Insert the RJ-45 connector on the RJ-45 to DB-9 Step 2: COM port cable to the RJ-45 RS-422/485 connector on the PPC-5152-D525. F igure 3-37. Figure 3-37: RJ-45 RS-422/485 Serial Device Connection Insert the serial connector. Insert the DB-9 connector of a serial device into the Step 3: DB-9 connector on the RJ-45 to DB-9 COM port cable.

  • Page 65: Sfp Fiber Connectors

    DATA+ DATA- Table 3-7: RS-422/485 Serial Port Pinouts 3.11.8 SFP Fiber Connectors The PPC-5152-D525 has two SFP fiber connectors. The locations of the connectors are shown in F igure 1-4. To install an SFP module, refer to Section 3 .6.

  • Page 66: Usb 3.0 Connectors

    PPC-5152-D525 Falt-bezel Panel PC Description Description DATA- DATA- DATA+ DATA+ GROUND GROUND Table 3-8: USB 2.0 Port Pinouts 3.11.10 USB 3.0 Connectors CN Label: USB3.0 USB 3.0 port CN Type: CN Location: F igure 1-4 CN Pinouts: T able 3-8 The USB 3.0 ports are for attaching USB 3.0 peripheral devices to the system.

  • Page 67: Vga Connector

    PPC-5152-D525 Falt-bezel Panel PC Locate the USB connectors. The locations of the USB connectors are shown in Step 1: F igure 1-4. Align the connectors. Align the USB device connector with one of the connectors. Step 2: F igure 3-39.

  • Page 68: Figure 3-40: Vga Connector

    HSYNC VSYNC 5VDDCCLK Table 3-10: VGA Connector Pinouts To connect the PPC-5152-D525 to a second display, follow the steps below, Locate the female DB-15 connector. The location of the female DB-15 connector Step 1: is shown in F igure 1-4.

  • Page 69: Power-Up The System

    3.12.1 AT/ATX Power Mode Selection The PPC-5152-D525 supports both AT and ATX power modes. The setting can be made through the AT/ATX power mode switch on the bottom panel as shown below.

  • Page 70: Powering On/Off In Atx Power Mode

    Figure 3-44: Remote Control System On/Off: Press this button to turn the PPC-5152-D525 on or off. LCD On/Off. Press this button to turn the LCD monitor on or off. Auto-Dimming. Press this button to turn the auto-dimming function on or off.

  • Page 71: System Maintenance

    PPC-5152-D525 Falt-bezel Panel PC Chapter System Maintenance Page 57...

  • Page 72: System Maintenance Introduction

    PPC-5152-D525 Falt-bezel Panel PC 4.1 System Maintenance Introduction If the components of the PPC-5152-D525 fail they must be replaced. Components that can be replaced include: SO-DIMM module WLAN Module Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions for the PPC-5152-D525 are described below.

  • Page 73: Turn Off The Power

    Hold down the power switch for six seconds to power off the system. Step 2: Step 0: 4.4 Opening the System To access the PPC-5152-D525 internally the back cover must be removed. To remove the back cover, please follow the steps below. Follow all anti-static procedures. See Section Step 1: 4 .2.

  • Page 74: Replacing Components

    PPC-5152-D525 Falt-bezel Panel PC Remove a total of ten retention screws from the back cover, eight on the rear of Step 3: the frame and two on the rear panel ( F igure 4-1). Figure 4-1: Back Cover Retention Screws...

  • Page 75: Wlan Card Replacement

    Replace the back cover and secure it using nine (9) previously removed Step 11: retention screws. Step 0: 4.5.2 WLAN Card Replacement The PPC-5152-D525 has one WLAN card slot. To replace the WLAN card, follow the instructions below. Follow all anti-static procedures. See Section Step 1: 4 .2.

  • Page 76: Figure4-3: Removing The Antennas

    PPC-5152-D525 Falt-bezel Panel PC Locate the WLAN card. Step 4: Disconnect the main and auxiliary antennas on the WLAN module Step 5: F igure 4-3). Figure 4-3: Removing the Antennas Push the two spring clips in to release the WLAN card.

  • Page 77: Figure4-5: Removing The Wlan Card

    PPC-5152-D525 Falt-bezel Panel PC Grasp the WLAN card by the edges and carefully pull it out of the socket Step 7: F igure 4-5). Figure 4-5: Removing the WLAN card Install a new WLAN card by inserting the card into the slot at an angle Step 8: Push the WLAN card down until the spring retainer clips lock into place.

  • Page 78: Figure4-6: Attaching The Antennas

    PPC-5152-D525 Falt-bezel Panel PC Figure 4-6: Attaching the Antennas Replace the internal aluminum cover and secure it to the chassis using six (6) Step 11: retention screws. Replace the back cover and secure it using nine (9) previously removed Step 12: retention screws.

  • Page 79: Ami Bios Setup

    PPC-5152-D525 Falt-bezel Panel PC Chapter AMI BIOS Setup Page 65...

  • Page 80: Introduction

    PPC-5152-D525 Falt-bezel Panel PC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 81: Getting Help

    PPC-5152-D525 Falt-bezel Panel PC Function Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...

  • Page 82: Main

    PPC-5152-D525 Falt-bezel Panel PC 5.2 Main The Main BIOS menu ( B IOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 83: Advanced

    PPC-5152-D525 Falt-bezel Panel PC System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 5.3 Advanced Use the Advanced menu ( B IOS Menu 2) to configure the CPU and peripheral devices...

  • Page 84: Acpi Sleep State [S1 (Cpu Stop Clock)]

    PPC-5152-D525 Falt-bezel Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced ACPI Sleep State [S1 (CPU Stop Clock)] Select the highest ACPI Power Saving Function [Disable] sleep state the system will enter, when the SUSPEND button is pressed.

  • Page 85: Cpu Configuration

    PPC-5152-D525 Falt-bezel Panel PC 5.3.2 CPU Configuration Use the CPU Configuration menu ( B IOS Menu 4) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Processor Type Intel(R) Atom(TM) CPU D525 @ 1.80GHz...

  • Page 86: Ide Configuration

    PPC-5152-D525 Falt-bezel Panel PC Hyper Threading Function [Enabled] Use the Hyper Threading function to enable or disable the CPU hyper threading function. Disables the use of hyper threading technology Disabled Enables the use of hyper threading technology Enabled EFAULT 5.3.3 IDE Configuration...

  • Page 87: Usb Configuration

    PPC-5152-D525 Falt-bezel Panel PC Configures the on-board ATA/IDE controller to be in Enhanced EFAULT Enhanced mode. In this mode, IDE channels and SATA channels are separated. This mode supports up to 6 storage devices. Some legacy OS do not support this mode.

  • Page 88: Usb Devices

    PPC-5152-D525 Falt-bezel Panel PC USB Devices The USB Devices Enabled field lists the USB devices that are enabled on the system Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 89: Super Io Configuration

    PPC-5152-D525 Falt-bezel Panel PC 5.3.5 Super IO Configuration Use the Super IO Configuration menu ( B IOS Menu 7) to set or change the configurations for the FDD controllers, parallel ports and serial ports. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 90: Serial Port [Enabled]

    PPC-5152-D525 Falt-bezel Panel PC 5.3.5.1.1 Serial Port 1 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 91: Change Settings [Auto]

    PPC-5152-D525 Falt-bezel Panel PC Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. The serial port IO port address and interrupt address Auto EFAULT are automatically detected. Serial Port I/O port address is 2F8h and the interrupt IO=2F8h;...

  • Page 92: Serial Port 3 Mode [Rs232]

    PPC-5152-D525 Falt-bezel Panel PC Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ10, 11 IRQ=10, 11 Serial Port I/O port address is 2E8h and the interrupt IO=2E8h; address is IRQ10, 11 IRQ=10, 11 Serial Port 3 Mode [RS232] Use the Serial Port 3 Mode option shows the Serial Port 3 signaling mode is set to RS-232 and can not be changed.

  • Page 93: Serial Port [Enabled]

    PPC-5152-D525 Falt-bezel Panel PC Serial Port 4 Mode [RS422/485] The Serial Port 4 Mode option shows the Serial Port 4 signaling mode is set to RS-422/485 and can not be changed. 5.3.5.1.5 Serial Port 5 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.

  • Page 94: Change Settings [Auto]

    PPC-5152-D525 Falt-bezel Panel PC Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ3, 4, 5, 6, 7, 10, 11, 12 IRQ=3, 5, 6, 7, 10, 11, 12 Serial Port I/O port address is 2E8h and the interrupt IO=2E8h;...

  • Page 95: H/W Monitor

    PPC-5152-D525 Falt-bezel Panel PC Serial Port I/O port address is 2E0h and the interrupt IO=2E0h; address is IRQ10 IRQ=10 Serial Port I/O port address is 2C0h and the interrupt IO=2C0h; address is IRQ10, 11 IRQ=10, 11 Serial Port I/O port address is 2C8h and the interrupt IO=2C8h;...

  • Page 96: Serial Port Console Redirection

    PPC-5152-D525 Falt-bezel Panel PC PC Health Status The following system parameters and values are shown. The system parameters that are monitored are: System Temperatures: CPU Temperature System Temperature Voltages: VCC3V V_core Vcc12 Vcc1_5VDDR VSB3V VBAT 5.3.7 Serial Port Console Redirection...

  • Page 97: Console Redirection Settings

    PPC-5152-D525 Falt-bezel Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable > Console Redirection Settings COM2 Console Redirection [Disabled] > Console Redirection Settings COM3 Console Redirection [Disabled] >...

  • Page 98: Terminal Type [Ansi]

    PPC-5152-D525 Falt-bezel Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection Settings Enable or Disable Terminal Type [ANSI] Bits per second [115200] --------------------- Data Bits : Select Screen ↑ ↓: Select Item...

  • Page 99: Iei Feature

    PPC-5152-D525 Falt-bezel Panel PC 5.3.8 IEI Feature Use the IEI Feature menu ( B IOS Menu 12) to configure One Key Recovery function. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Disabled] Select Screen ↑...

  • Page 100: Host Bridge Configuration

    PPC-5152-D525 Falt-bezel Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Save & Exit > Host Bridge Host Bridge Parameters > South Bridge > Intel IGD SWSCI OpRegion --------------------- : Select Screen ↑ ↓: Select Item...

  • Page 101: South Bridge Configuration

    PPC-5152-D525 Falt-bezel Panel PC 5.4.2 South Bridge Configuration Use the South Bbridge Configuration menu ( B IOS Menu 15) to configure the Southbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset Restore AC Power Loss [Last State]...
  • Page 102 PPC-5152-D525 Falt-bezel Panel PC USB Function [Enabled] Use the USB Function BIOS option to enable or disable USB function support. USB function support disabled Disabled USB function support enabled Enabled EFAULT USB 2.0 (EHCI) Support [Enabled] This is a workaround for system without EHCI hand-off support. The EHCI is a high speed controller standard.

  • Page 103: Intel Igd Swsci Opregion

    PPC-5152-D525 Falt-bezel Panel PC Enables auto dimming function Enabled EFAULT Disables auto dimming function Disabled 5.4.3 Intel IGD SWSCI OpRegion Use the Intel IGD SWSCI OpRegion menu ( B IOS Menu 16) to configure the video device connected to the system.
  • Page 104 PPC-5152-D525 Falt-bezel Panel PC 128 MB 256 MB Maximum Default IGD - Boot Type [VBIOS Default] Use the IGD - Boot Type option to select the display device used by the system when it boots. Configuration options are listed below.

  • Page 105: Boot

    PPC-5152-D525 Falt-bezel Panel PC 5.5 Boot Use the Boot menu ( B IOS Menu 17) to configure system boot options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Save & Exit Boot Configuration Select the keyboard...

  • Page 106: Save & Exit

    PPC-5152-D525 Falt-bezel Panel PC Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled OEM Logo displayed instead of POST messages Enabled EFAULT Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.
  • Page 107 PPC-5152-D525 Falt-bezel Panel PC Save Changes and Reset Use the Save Changes and Reset option to save the changes made to the BIOS options and reset the system. Discard Changes and Reset Use the Discard Changes and Reset option to exit the system without saving the changes made to the BIOS configuration setup program.

  • Page 108: Software Drivers

    PPC-5152-D525 Falt-bezel Panel PC Chapter Software Drivers Page 94...

  • Page 109: Available Software Drivers

    PPC-5152-D525 Falt-bezel Panel PC 6.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.

  • Page 110: Figure 6-1: Chipset Driver Screen

    PPC-5152-D525 Falt-bezel Panel PC Locate the setup file and double click on it. Step 3: The setup files are extracted as shown in Step 4: F igure 6-1. Figure 6-1: Chipset Driver Screen When the setup files are completely extracted the Welcome Screen in...

  • Page 111: Figure 6-2: Chipset Driver Welcome Screen

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-2: Chipset Driver Welcome Screen The license agreement in F igure 6-3 appears. Step 7: Read the License Agreement. Step 8: Click Yes to continue. Step 9: Figure 6-3: Chipset Driver License Agreement The Read Me file in F igure 6-4 appears.

  • Page 112: Figure 6-4: Chipset Driver Read Me File

    PPC-5152-D525 Falt-bezel Panel PC Click Next to continue. Step 11: Figure 6-4: Chipset Driver Read Me File Setup Operations are performed as shown in Step 12: F igure 6-5. Once the Setup Operations are complete, click Next to continue. Step 13:...

  • Page 113: Graphics Driver Installation

    PPC-5152-D525 Falt-bezel Panel PC The Finish screen in F igure 6-6 appears. Step 14: Select “Yes, I want to restart this computer now” and click Step 15: Finish.Step 0: Figure 6-6: Chipset Driver Installation Finish Screen 6.4 Graphics Driver Installation To install the Graphics driver, please do the following.

  • Page 114: Figure 6-7: Graphics Driver Read Me File

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-7: Graphics Driver Read Me File The installation files are extracted. See Step 6: F igure 6-8. Click Next to continue. Step 7: Figure 6-8: Graphics Driver Setup Files Extracted The Welcome Screen in F igure 6-9 appears.

  • Page 115: Figure 6-9: Graphics Driver Welcome Screen

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-9: Graphics Driver Welcome Screen The License Agreement in F igure 6-10 appears. Step 10: Click Yes to accept the agreement and continue. Step 11: Figure 6-10: Graphics Driver License Agreement The Read Me file in F igure 6-11 appears.

  • Page 116: Figure 6-11: Graphics Driver Read Me File

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-11: Graphics Driver Read Me File Setup Operations are performed as shown in Step 14: F igure 6-12. Once the Setup Operations are complete, click Next to continue. Step 15: Figure 6-12: Graphics Driver Setup Operations The Finish screen in F igure 6-13 appears.

  • Page 117: Lan Driver Installation

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-13: Graphics Driver Installation Finish Screen 6.5 LAN Driver Installation To install the LAN driver, please do the following. Access the driver list. (See Section Step 1: 6 .2) Click “LAN” and select the Realtek folder Step 2: Select the folder which corresponds to the operating system.

  • Page 118: Figure 6-14: Lan Driver Welcome Screen

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-14: LAN Driver Welcome Screen Click Next to continue. Step 6: The Ready to Install screen in F igure 6-15 appears. Step 7: Click Next to proceed with the installation. Step 8: Figure 6-15: LAN Driver Welcome Screen The program begins to install.

  • Page 119: Figure 6-16: Lan Driver Installation

    PPC-5152-D525 Falt-bezel Panel PC The installation progress can be monitored in the progress bar shown in Step 10: F igure 6-16. Figure 6-16: LAN Driver Installation When the driver installation is complete, the screen in F igure 6-17 appears. Step 11:...

  • Page 120: Audio Driver Installation

    PPC-5152-D525 Falt-bezel Panel PC 6.6 Audio Driver Installation To install the audio driver, please do the following. Access the driver list. (See Section Step 1: 6 .2) Click “Audio”. Step 2: Double click the setup file. Step 3: The Audio Driver Welcome Screen in F igure 6-18 appears.

  • Page 121: Figure 6-19: Audio Driver Installation

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-19: Audio Driver Installation When the installation is complete, the screen in F igure 6-20 appears. Step 7: Select “Yes, I want to restart my computer now” and click Finish. Step 8: Step 0: Figure 6-20: AC’97 Driver Installation Complete...

  • Page 122: Touch Screen Driver Installation

    PPC-5152-D525 Falt-bezel Panel PC 6.7 Touch Screen Driver Installation To install the touch panel software driver, please follow the steps below. Access the driver list. (See Section Step 1: 6 .2) Click “Touch Screen.” Step 2: Locate the setup file and double click on it.

  • Page 123: Figure 6-22: Touch Screen Driver License Agreement

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-22: Touch Screen Driver License Agreement Browse for an install location or use the one suggested ( Step 8: F igure 6-23). Click I to continue. Step 9: NSTALL Figure 6-23: Touch Screen Driver Choose Install Location...

  • Page 124: Figure 6-24: Touch Screen Driver Installation Screen

    PPC-5152-D525 Falt-bezel Panel PC Click N to continue. Step 11: Figure 6-24: Touch Screen Driver Installation Screen When the installation is complete, click F to exit setup. ( Step 12: F igure 6-25). INISH Figure 6-25: Touch Screen Driver Update Complete...

  • Page 125: Calibrating The Touch Screen

    PPC-5152-D525 Falt-bezel Panel PC 6.7.1 Calibrating the Touch Screen To calibrate the touch screen cursor with the motion of the touch screen pen (or finger), please follow the steps below: Make sure the touch screen driver is properly installed. Step 1: Locate the PenMount Monitor icon in the bottom right corner of the screen.

  • Page 126: Figure 6-28: Configuration Screen

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-28: Configuration Screen Double click the PenMount 9000 icon as shown in Step 6: F igure 6-28. The calibration initiation screen in F igure 6-29 appears. Step 7: Select the Standard Calibration button as shown in Step 8: F igure 6-29.

  • Page 127: Usb 3.0 Driver Installation

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-30: Calibration Screen Follow the instructions. The user is asked touch the screen at five specified Step 10: points after which the screen is calibrated. Step 0: 6.8 USB 3.0 Driver Installation To install the USB 3.0 driver, please follow the steps below.

  • Page 128: Figure 6-31: Usb 3.0 Driver Welcome Screen

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-31: USB 3.0 Driver Welcome Screen The License Agreement shown in F igure 6-32 appears. Step 6: Click “I accept the terms in the license agreement” to accept and continue. Step 7: Figure 6-32: USB 3.0 Driver License Agreement...

  • Page 129: Figure 6-33: Usb 3.0 Driver Installation Screen

    PPC-5152-D525 Falt-bezel Panel PC Figure 6-33: USB 3.0 Driver Installation Screen When the installation is complete, click F to exit setup. ( Step 9: F igure 6-34). INISH Figure 6-34: USB 3.0 Driver Update Complete Page 115...

  • Page 130: A Bios Configuration Options

    PPC-5152-D525 Falt-bezel Panel PC Appendix BIOS Configuration Options Page 116...

  • Page 131: Bios Configuration Options

    PPC-5152-D525 Falt-bezel Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 6 6 7 　 BIOS Information .........................68 　 System Date [xx/xx/xx] ......................68 　 System Time [xx:xx:xx] .......................69 　 ACPI Sleep State [S1 (CPU Stop Clock)] ................70 　...
  • Page 132 PPC-5152-D525 Falt-bezel Panel PC 　 Restore on AC Power Loss [Last State] ................87 　 HD Audio Controller [Enabled] ...................87 　 USB Function [Enabled]......................88 　 USB 2.0 (EHCI) Support [Enabled] ..................88 　 Set Spread Spectrum function [Disabled].................88 　 WIFI Support [Enabled] .......................88 　...

  • Page 133: B One Key Recovery

    PPC-5152-D525 Falt-bezel Panel PC Appendix One Key Recovery Page 119...

  • Page 134: One Key Recovery Introduction

    PPC-5152-D525 Falt-bezel Panel PC B.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 135: System Requirement

    PPC-5152-D525 Falt-bezel Panel PC After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section B.5. NOTE: The initial setup procedures for Linux system are described in Section B.3.

  • Page 136: Supported Operating System

    PPC-5152-D525 Falt-bezel Panel PC partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows® XPE 776 MB 560 MB Windows® CE 6.0...

  • Page 137: Setup Procedure For Windows

    PPC-5152-D525 Falt-bezel Panel PC Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch) SuSe 11.2 SuSe 10.3 NOTE: Installing unsupported OS versions may cause the recovery tool to fail. B.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore, a few setup procedures are required.

  • Page 138: Hardware And Bios Setup

    PPC-5152-D525 Falt-bezel Panel PC B.2.1 Hardware and BIOS Setup Make sure the system is powered off and unplugged. Step 1: Install a hard drive or SSD in the system. An unformatted and unpartitioned disk Step 2: is recommended. Connect an optical disk drive to the system and insert the recovery CD.

  • Page 139: Figure B-2: Launching The Recovery Tool

    PPC-5152-D525 Falt-bezel Panel PC Figure B-2: Launching the Recovery Tool The recovery tool setup menu is shown as below. Step 3: Figure B-3: Recovery Tool Setup Menu Press <6> then <Enter>. Step 4: Page 125...

  • Page 140: Figure B-4: Command Prompt

    PPC-5152-D525 Falt-bezel Panel PC Figure B-4: Command Prompt The command prompt window appears. Type the following commands (marked Step 5: in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 141: Figure B-5: Partition Creation Commands

    PPC-5152-D525 Falt-bezel Panel PC Figure B-5: Partition Creation Commands Page 127...

  • Page 142: Install Operating System, Drivers And Applications

    PPC-5152-D525 Falt-bezel Panel PC NOTE: Use the following commands to check if the partitions were created successfully. Press any key to exit the recovery tool and automatically reboot the system. Step 6: Please continue to the following procedure: Build the Recovery Partition.S t e p 0 :...

  • Page 143: Building The Recovery Partition

    PPC-5152-D525 Falt-bezel Panel PC B.2.4 Building the Recovery Partition Put the recover CD in the optical drive. Step 1: Start the system. Step 2: Boot the system from the recovery CD. When prompted, press any key to Step 3: boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 144: Figure B-8: Building The Recovery Partition

    PPC-5152-D525 Falt-bezel Panel PC The Symantec Ghost window appears and starts configuring the system to build Step 5: a recovery partition. In this process the partition created for recovery files in Section B.2.2 is hidden and the recovery tool is saved in this partition.

  • Page 145: Create Factory Default Image

    PPC-5152-D525 Falt-bezel Panel PC B.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 146: Figure B-12: About Symantec Ghost Window

    PPC-5152-D525 Falt-bezel Panel PC Figure B-12: About Symantec Ghost Window Use mouse to navigate to the option shown below (Figure B-13). Step 4: Figure B-13: Symantec Ghost Path Select the local source drive (Drive 1) as shown in Figure B-14. Then click OK.

  • Page 147: Figure B-14: Select A Local Source Drive

    PPC-5152-D525 Falt-bezel Panel PC Figure B-14: Select a Local Source Drive Select a source partition (Part 1) from basic drive as shown in Figure B-15. Step 6: Then click OK. Figure B-15: Select a Source Partition from Basic Drive Select 1.2: [Recovery] NTFS drive and enter a file name called Step 7: (Figure B-16).

  • Page 148: Figure B-16: File Name To Copy Image To

    PPC-5152-D525 Falt-bezel Panel PC Figure B-16: File Name to Copy Image to When the Compress Image screen in Figure B-17 prompts, click High to make Step 8: the image file smaller. Figure B-17: Compress Image Page 134...

  • Page 149: Figure B-18: Image Creation Confirmation

    PPC-5152-D525 Falt-bezel Panel PC The Proceed with partition image creation window appears, click Yes to Step 9: continue. Figure B-18: Image Creation Confirmation The Symantec Ghost starts to create the factory default image (Figure B-19). Step 10: Figure B-19: Image Creation Complete When the image creation completes, a screen prompts as shown in Figure B-20.

  • Page 150: Auto Recovery Setup Procedure

    PPC-5152-D525 Falt-bezel Panel PC The recovery tool main menu window is shown as below. Press any key to Step 12: reboot the system. S t e p 0 : Figure B-21: Press Any Key to Continue B.3 Auto Recovery Setup Procedure...

  • Page 151: Figure B-22: Auto Recovery Utility

    PPC-5152-D525 Falt-bezel Panel PC Figure B-22: Auto Recovery Utility Reboot the system from the recovery CD. When prompted, press any key to Step 3: boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 152: Figure B-25: Building The Auto Recovery Partition

    PPC-5152-D525 Falt-bezel Panel PC The Symantec Ghost window appears and starts configuring the system to build Step 5: an auto recovery partition. In this process the partition created for recovery files in Section B.2.2 is hidden and the auto recovery tool is saved in this partition.

  • Page 153: Figure B-27: Image Creation Complete

    PPC-5152-D525 Falt-bezel Panel PC The Symantec Ghost starts to create the factory default image (Figure B-27). Step 7: Figure B-27: Image Creation Complete After completing the system configuration, press any key in the following window Step 8: to restart the system.

  • Page 154: Setup Procedure For Linux

    PPC-5152-D525 Falt-bezel Panel PC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Enabled] Recover from PXE [Disabled] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

  • Page 155: Figure B-29: Partitions For Linux

    PPC-5152-D525 Falt-bezel Panel PC Install Linux operating system. Make sure to install GRUB (v0.97 or earlier) Step 2: MBR type and Ext3 partition type. Leave enough space on the hard drive to create the recover partition later. NOTE: If the Linux OS is not installed with GRUB (v0.97 or earlier) and Ext3, the Symantec Ghost may not function properly.

  • Page 156: Figure B-30: Manual Recovery Environment For Linux

    PPC-5152-D525 Falt-bezel Panel PC DISKPART>create part pri size= DISKPART>assign letter=N DISKPART>exit system32>format N: /fs:ntfs /q /v:Recovery /y system32>exit Build the recovery partition. Press any key to boot from the recovery CD. It will Step 4: take a while to launch the recovery tool. Please be patient. When the recovery tool setup menu appears, type <3>...

  • Page 157: Figure B-31: Access Menu.lst In Linux (Text Mode)

    PPC-5152-D525 Falt-bezel Panel PC Figure B-31: Access menu.lst in Linux (Text Mode) Modify the menu.lst as shown below. Step 6: The recovery tool menu appears. (Figure B-32) Step 7: Figure B-32: Recovery Tool Menu Create a factory default image. Follow...

  • Page 158: Recovery Tool Functions

    PPC-5152-D525 Falt-bezel Panel PC B.5 Recovery Tool Functions After completing the initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. However, if the setup procedure in Section B.3 has been completed and the auto recovery function is enabled, the system will automatically restore from the factory default image without pressing the F3 key.

  • Page 159: Factory Restore

    PPC-5152-D525 Falt-bezel Panel PC WARNING: All data in the system will be deleted during the system recovery. Please backup the system files before restoring the system (either Factory Restore or Restore Backup). B.5.1 Factory Restore To restore the factory default image, please follow the steps below.

  • Page 160: Backup System

    PPC-5152-D525 Falt-bezel Panel PC Figure B-35: Recovery Complete Window B.5.2 Backup System To backup the system, please follow the steps below. Type <2> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to backup the system. A Step 2: backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 161: Restore Your Last Backup

    PPC-5152-D525 Falt-bezel Panel PC Figure B-37: System Backup Complete Window B.5.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Type <3> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to restore the last backup Step 2: image (iei_user.GHO).

  • Page 162: Manual

    PPC-5152-D525 Falt-bezel Panel PC Figure B-39: Restore System Backup Complete Window B.5.4 Manual To restore the last system backup, please follow the steps below. Type <4> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears. Use the Ghost program to backup or Step 2: recover the system manually.

  • Page 163: Restore Systems From A Linux Server Through Lan

    PPC-5152-D525 Falt-bezel Panel PC B.6 Restore Systems from a Linux Server through LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 164: Configure Dhcp Server Settings

    PPC-5152-D525 Falt-bezel Panel PC B.6.1 Configure DHCP Server Settings Install the DHCP Step 1: #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Confirm the operating system default settings: dhcpd.conf. Step 2: CentOS Use the following command to show the DHCP server sample location: #vi /etc/dhcpd.conf...

  • Page 165: Configure Tftp Settings

    PPC-5152-D525 Falt-bezel Panel PC filename “pxelinux.0”; B.6.2 Configure TFTP Settings Install the tftp, httpd and syslinux. Step 1: #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) Enable the TFTP server by editing the “/etc/xinetd.d/tftp” file and make it use the Step 2: remap file.

  • Page 166: Configure One Key Recovery Server Settings

    PPC-5152-D525 Falt-bezel Panel PC Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp B.6.3 Configure One Key Recovery Server Settings Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key...

  • Page 167: Start The Dhcp, Tftp And Http

    PPC-5152-D525 Falt-bezel Panel PC B.6.4 Start the DHCP, TFTP and HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart B.6.5 Create Shared Directory Install the samba.

  • Page 168: Setup A Client System For Auto Recovery

    PPC-5152-D525 Falt-bezel Panel PC Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 Edit “/etc/samba/smb.conf” for your environment. For example: Step 4:...
  • Page 169 PPC-5152-D525 Falt-bezel Panel PC Continue to configure the Boot Option Priorities BIOS option of the client Step 2: system: Boot Option #1 remain the default setting to boot from the original OS. Boot Option #2 select the boot from LAN option.
  • Page 170 PPC-5152-D525 Falt-bezel Panel PC NOTE: A firewall or a SELinux is not in use in the whole setup process. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. Page 156...

  • Page 171: Other Information

    PPC-5152-D525 Falt-bezel Panel PC B.7 Other Information B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 172 PPC-5152-D525 Falt-bezel Panel PC When the following window appears, press <S> to select “Specify Additional Step 5: Device”. In the following window, select a SATA controller mode used in the system. Then Step 6: press <Enter>. The user can now start using the SATA HDD.

  • Page 173: System Memory Requirement

    PPC-5152-D525 Falt-bezel Panel PC After pressing <Enter>, the system will get into the recovery tool setup menu. Step 7: Continue to follow the setup procedure from in Section B.2.2 Create Step 4 Partitions to finish the whole setup process. S t e p 0 : B.7.2 System Memory Requirement...

  • Page 174: C Safety Precautions

    PPC-5152-D525 Falt-bezel Panel PC Appendix Safety Precautions Page 160...

  • Page 175: Safety Precautions

    PPC-5152-D525 Falt-bezel Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the EP series. C.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: C.1.1 General Safety Precautions...

  • Page 176: Anti-Static Precautions

    PPC-5152-D525 Falt-bezel Panel PC C.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the EP series may result in permanent damage to the EP series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the EP series.

  • Page 177: Maintenance And Cleaning Precautions

    PPC-5152-D525 Falt-bezel Panel PC Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method. Within the European Union:...

  • Page 178: Cleaning Tools

    PPC-5152-D525 Falt-bezel Panel PC C.2.2 Cleaning Tools Some components in the EP series may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the EP series.

  • Page 179: D Watchdog Timer

    PPC-5152-D525 Falt-bezel Panel PC Appendix Watchdog Timer Page 165...
  • Page 180 PPC-5152-D525 Falt-bezel Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 181: Example Program

    PPC-5152-D525 Falt-bezel Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 182: E Hazardous Materials Disclosure

    PPC-5152-D525 Falt-bezel Panel PC Appendix Hazardous Materials Disclosure Page 168...

  • Page 183: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    PPC-5152-D525 Falt-bezel Panel PC E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 184 PPC-5152-D525 Falt-bezel Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 185 PPC-5152-D525 Falt-bezel Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
