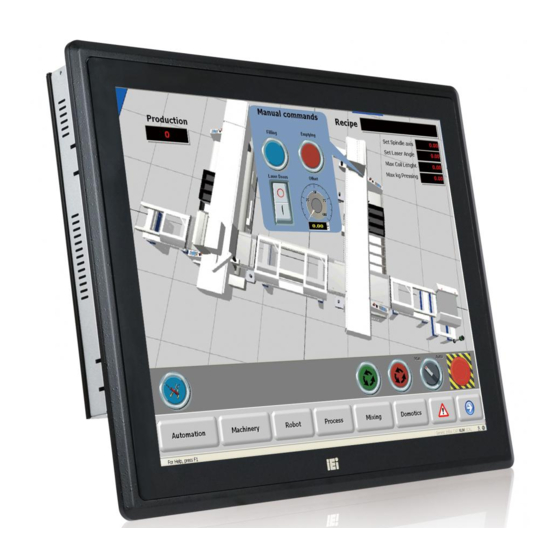

IEI Technology PPC-F12B-BTi User Manual

Industrial panel pc with intel celeron processor j1900, touchscreen, dual pcie mini, usb 3.0, hdmi sata 6gb/s, dual pcie gbe, iris-2400, ip 65 compliant front panel and rohs compliant
Hide thumbs Also See for PPC-F12B-BTi:
Table of Contents

Advertisement

Quick Links

Download this manual
PPC-F12B/15B/17B-BTi Panel PC
PPC-F12B/15B/17B-BTi Panel PC
MODEL:
PPC-F12B/15B/17B-BTi
Industrial Panel PC with Intel® Celeron® Processor J1900,
Touchscreen, Dual PCIe Mini, USB 3.0, HDMI
SATA 6Gb/s, Dual PCIe GbE, iRIS-2400,
IP 65 Compliant Front Panel and RoHS Compliant
User Manual
Page i
Rev. 1.01 – July 31, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-F12B-BTi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PPC-F12B-BTi

Summary of Contents for IEI Technology PPC-F12B-BTi

  • Page 1 PPC-F12B/15B/17B-BTi Panel PC PPC-F12B/15B/17B-BTi Panel PC MODEL: PPC-F12B/15B/17B-BTi Industrial Panel PC with Intel® Celeron® Processor J1900, Touchscreen, Dual PCIe Mini, USB 3.0, HDMI SATA 6Gb/s, Dual PCIe GbE, iRIS-2400, IP 65 Compliant Front Panel and RoHS Compliant User Manual Page i Rev.
  • Page 2 PPC-F12B/15B/17B-BTi Panel PC Revision Date Version Changes July 31, 2015 1.01 Modified Section 1.2: Model Variation Modified Section 1.6: Bottom Panel May 26, 2015 1.00 Initial release Page ii...
  • Page 3 PPC-F12B/15B/17B-BTi Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 PPC-F12B/15B/17B-BTi Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    ANEL 1.6 B ......................5 OTTOM ANEL 1.7 D ....................... 7 IMENSIONS 1.7.1 PPC-F12B-BTi Dimensions ................7 1.7.2 PPC-F15B-BTi Dimensions ................8 1.7.3 PPC-F17B-BTi Dimensions ................9 1.8 S ....................... 10 PECIFICATIONS 2 UNPACKING ....................... 12 2.1 U ......................13 NPACKING 2.2 P...
  • Page 6 PPC-F12B/15B/17B-BTi Panel PC 3.11.2 Panel Mounting ....................31 3.11.3 Rack and Cabinet Installation................ 35 3.11.4 Arm Mounting ....................37 3.11.5 Stand Mounting ....................39 3.12 S ................41 ERIAL EVICE ONNECTION 3.12.1 RS-232 Serial Ports (COM1, COM2) ............41 3.12.2 RS-232/422/485 Serial Port (COM3) ............42 3.13 P ...................
  • Page 7 PPC-F12B/15B/17B-BTi Panel PC 5.3.5.1 Console Redirection Settings..............65 5.3.6 CPU Configuration..................67 5.3.7 IDE Configuration ................... 69 5.3.8 USB Configuration................... 70 5.3.9 iEi Feature ....................... 73 5.4 C ........................74 HIPSET 5.4.1 North Bridge ....................75 5.4.1.1 Intel IGD Configuration................75 5.4.2 South Bridge.....................
  • Page 8 PPC-F12B/15B/17B-BTi Panel PC 6.2.16 Power Button Connector (PWR_BTN1) ............97 6.2.17 Power Source Connector (PWR1) ..............97 6.2.18 Reset Button Connector (RST_BTN2)............97 6.2.19 Resistive Touchscreen Connector (TOUCH1) ..........98 6.2.20 RS-232 Connector (COM4, COM5) .............. 98 6.2.21 SATA 6Gb/s Connectors (SATA1, SATA2) ............99 6.2.22 SATA Power Connectors (SATA_PWR1, SATA_PWR2).........
  • Page 9 PPC-F12B/15B/17B-BTi Panel PC C.2.1 Maintenance and Cleaning ................118 C.2.2 Cleaning Tools....................119 D WATCHDOG TIMER ....................120 E HAZARDOUS MATERIALS DISCLOSURE ............123 E.1 H IPB P AZARDOUS ATERIAL ISCLOSURE ABLE FOR RODUCTS ERTIFIED AS HS C 2002/95/EC W ........124 OMPLIANT NDER ITHOUT...
  • Page 10 Figure 3-16: Mount the Chassis ....................30 Figure 3-17: Secure the Chassis ....................31 Figure 3-18: PPC-F17B-BTi Mounting Bracket Installation ............32 Figure 3-19: PPC-F12B-BTi Panel Cutout Dimensions .............32 Figure 3-20: PPC-F15B-BTi Panel Cutout Dimensions .............33 Figure 3-21: PPC-F17B-BTi Panel Cutout Dimensions .............33 Figure 3-22: Tighten the Mounting Clamp Screws..............34...
  • Page 11 PPC-F12B/15B/17B-BTi Panel PC Figure 3-24: Secure the Rack/Cabinet Bracket................36 Figure 3-25: Install into a Rack/Cabinet ..................37 Figure 3-26: Arm Mounting Retention Screw Holes..............38 Figure 3-27: Arm Mounting (ARM-11-RS)...................39 Figure 3-28: Stand Mounting Retention Screw Holes...............40 Figure 3-29: Stand Mounting (Stand-Axx)..................40 Figure 3-30: Serial Port Locations ....................41 Figure 3-31: Power Input Connector Pinouts ................42 Figure 3-32: Power Connectors and Power Button ..............43...
  • Page 12 PPC-F12B/15B/17B-BTi Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: System Specifications....................11 Table 2-1: Packing List.........................14 Table 2-2: Optional Items......................15 Table 3-1: RS-232 Serial Port (COM1, COM2) Pinouts ..............41 Table 3-2: RS-232/422/485 Serial Port (COM3) Pinouts ............42 Table 5-1: BIOS Navigation Keys ....................52 Table 6-1: Peripheral Interface Connectors ................90 Table 6-2: Audio Connector (AUDIO1) Pinouts .................91...
  • Page 13 PPC-F12B/15B/17B-BTi Panel PC Table 6-25: SPI Flash Connector (JSPI1) Pinouts ..............100 Table 6-26: SPI Flash (EC) Connector (JSPI2) Pinouts............100 Table 6-27: U3 Firmware Programming Connector (JP2) Pinouts ........101 Table 6-28: USB 2.0 Connector (USB1) Pinouts..............101 Table 6-29: Rear Panel Connectors ..................101 Table 6-30: HDMI Connector (HDMI1) Pinouts................

  • Page 15: Introduction

    PPC-F12B/15B/17B-BTi Panel PC Chapter Introduction Page 1...

  • Page 16: Overview

    PPC-F12B/15B/17B-BTi Panel PC 1.1 Overview Figure 1-1: PPC-F12B/15B/17B-BTi Series Panel PC The PPC-F12B/15B/17B-BTi series is a quad-core Intel® Celeron® processor J1900 powered flat bezel panel PC with a rich variety of functions and peripherals. The rugged and trendy design can be applied in harsh industrial environments and enriches aesthetic experience at the same time.

  • Page 17: Model Variations

    The PPC-F12B/15B/17B-BTi series is preinstalled with Intel® Celeron® processor J1900, which has a 10 W TDP. The model numbers and model variations are listed below. Model Size Touchscreen Memory Power 9 V–36 V DC PPC-F12B-BTi-J1/2G/R-R10 Resistive 2 GB DDR3L 12” 9 V–36 V DC PPC-F12B-BTi-J1/2G/PC-R10 12” Projected capacitive 2 GB DDR3L 9 V–36 V DC...

  • Page 18: Front Panel

    PPC-F12B/15B/17B-BTi Panel PC 1.4 Front Panel The front side of the PPC-F12B/15B/17B-BTi (Figure 1-2) is a flat panel LCD screen surrounded by an aluminum frame. Figure 1-2: Front View 1.5 Rear Panel The rear panel has a fan vent, four VESA 100x100 mounting holes and several retention screws.

  • Page 19: Bottom Panel

    2 x RS-232 connectors (COM1and COM2)  1 x RS-232/422/485 connector (COM3)  1 x Audio line-out jack (15” and 17” models only)  1 x VGA connector  1 x HDMI connector  1 x AT/ATX switch Figure 1-4: PPC-F12B-BTi Bottom View Page 5...

  • Page 20: Figure 1-5: Ppc-F15B/F17B-Bti Bottom View

    PPC-F12B/15B/17B-BTi Panel PC Figure 1-5: PPC-F15B/F17B-BTi Bottom View Page 6...

  • Page 21: Dimensions

    PPC-F12B/15B/17B-BTi Panel PC 1.7 Dimensions 1.7.1 PPC-F12B-BTi Dimensions Figure 1-6: PPC-F12B-BTi Dimensions (mm) Page 7...

  • Page 22: Ppc-F15B-Bti Dimensions

    PPC-F12B/15B/17B-BTi Panel PC 1.7.2 PPC-F15B-BTi Dimensions Figure 1-7: PPC-F15B-BTi Dimensions (mm) Page 8...

  • Page 23: Ppc-F17B-Bti Dimensions

    PPC-F12B/15B/17B-BTi Panel PC 1.7.3 PPC-F17B-BTi Dimensions Figure 1-8: PPC-F17B-BTi Dimensions (mm) Page 9...

  • Page 24: Specifications

    PPC-F12B/15B/17B-BTi Panel PC 1.8 Specifications The technical specifications are listed in Table 1-2. PPC-F12B-BT PPC-F15B-BT PPC-F17B-BT 12” (4:3) 15” (4:3) 17” (5:4) LCD Display 1024 (W) x 768 (H) 1024 (W) x 768 (H) 1280 (W) x 1024 (H) Max. Resolution 600 cd/m 400 cd/m 350 cd/m...

  • Page 25: Table 1-2: System Specifications

    PPC-F12B/15B/17B-BTi Panel PC PPC-F12B-BT PPC-F15B-BT PPC-F17B-BT 1 x VGA connector 1 x HDMI connector 2 x RJ-45 GbE connectors (one supports iRIS) 2 x USB 3.0 2 x USB 2.0 2 x RS-232 (COM1and COM2) 1 x RS-232/422/485 (COM3) I/O Ports, Switches and Buttons 1 x Audio line-out jack (15”...

  • Page 26: Unpacking

    PPC-F12B/15B/17B-BTi Panel PC Chapter Unpacking Page 12...

  • Page 27: Unpacking

    PPC-F12B/15B/17B-BTi Panel PC 2.1 Unpacking To unpack the panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the panel PC has been properly installed.

  • Page 28: Packing List

    PPC-F12B/15B/17B-BTi Panel PC 2.2 Packing List The PPC-F12B/15B/17B-BTi panel PC is shipped with the following components: Quantity Item Image PPC-F12B/15B/17B-BTi panel PC Power cord (part number varies by regions) Power adapter (60 W) Screw pack Touch pen (P/N: 43125-0002C0-00-RS) (resistive type models only) User manual and driver CD One Key Recovery CD Table 2-1: Packing List...

  • Page 29: Optional Items

    PPC-F12B/15B/17B-BTi Panel PC 2.3 Optional Items The following items are optional accessories for the PPC-F12B/15B/17B-BTi: Item PPC-F12B-BTi PPC-F15B-BTi PPC-F17B-BTi ARM-31 ARM-31 ARM-31 FPK-09-R10 FPK-10-R10 FPK-10-R10 Panel mounting kit FRK12-R10 FRK15-R10 FRK17-R10 Rack mounting kit STAND-C12 STAND-C19 STAND-C19 Stand STAND-A12 STAND-A19...

  • Page 30: Installation

    PPC-F12B/15B/17B-BTi Panel PC Chapter Installation Page 16...

  • Page 31: Anti-Static Precautions

    PPC-F12B/15B/17B-BTi Panel PC 3.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the EP series may result in permanent damage to the EP series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-F12B/15B/17B-BTi.

  • Page 32: Preinstalled Components

    PPC-F12B/15B/17B-BTi Panel PC  Mounting: The PPC-F12B/15B/17B-BTi is a heavy device. When mounting the system onto a rack, panel, wall or arm, please make sure that at least two people are assisting with the procedure.  Anti-static Discharge: If a user open the rear panel of the panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear an anti-static wristband.

  • Page 33: Removing The

    PPC-F12B/15B/17B-BTi Panel PC 3.5 Removing the Back Cover Remove the back cover retention screws on the back cover. Lift the cover up to remove. NOTE: The number of retention screws on the back cover varies by models. Figure 3-1: PPC-F17B-BTi Back Cover Retention Screws 3.6 SO-DIMM Installation The PPC-F12B/15B/17B-BTi series has two DDR3 SO-DIMM slots.

  • Page 34: Figure 3-2: So-Dimm Slot Location

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-2: SO-DIMM Slot Location Align the SO-DIMM with the socket. Align the notch on the memory with the Step 3: notch on the memory socket. Insert the SO-DIMM. Push the memory in at a 20º angle (Figure 3-3) Step 4: Seat the SO-DIMM.

  • Page 35: Hdd Installation

    PPC-F12B/15B/17B-BTi Panel PC 3.7 HDD Installation To install a 2.5” HDD into the PPC-F12B/15B/17B-BTi series, please follow the steps below: Remove the back cover. See Section Step 1: 3 .5. Remove the HDD bracket from the PPC-F12B/15B/17B-BTi. The HDD Step 2: bracket is secured on the panel PC with four retention screws ( F igure 3-4).

  • Page 36: Figure 3-5: Hdd Retention Screws

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-5: HDD Retention Screws Reinstall the HDD bracket into the PPC-F12B/15B/17B-BTi and fasten the four Step 5: hard drive bracket screws (Figure 3-6) Connect the SATA and SATA power cables. Figure 3-6: PPC-F17B-BTi HDD Installation Page 22...

  • Page 37: Msata Module Installation

    PPC-F12B/15B/17B-BTi Panel PC 3.8 mSATA Module Installation One of the PCIe Mini card slots on the motherboard of the PPC-F12B/15B/17B-BTi supports mSATA module. To install an mSATA module, please follow the steps below. Remove the back cover. See Section Step 1: 3 .5.

  • Page 38: Figure 3-8: Removing The Retention Screws

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-8: Removing the Retention Screws Insert into the socket at an angle. Line up the notch on the card with the notch Step 4: on the slot. Slide the PCIe Mini card into the socket at an angle of about 20º (Figure 3-9).

  • Page 39: Iris-2400 Module Installation

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-10: Securing the PCIe Mini Card 3.9 iRIS-2400 Module Installation WARNING: The iRIS-2400 module slot is designed to install the iRIS-2400 module only. DO NOT install other modules into the iRIS-2400 module slot. Doing so may cause damage to the PPC-F12B/15B/17B-BTi. To install the iRIS-2400 module, please follow the steps below.

  • Page 40: Figure 3-11: Motherboard Retention Screws

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-11: Motherboard Retention Screws Locate the iRIS-2400 module slot. Lift the motherboard and turn it over to Step 3: locate the slot. Figure 3-12: iRIS-2400 Module Slot Location Align the iRIS-2400 module with the iRIS-2400 module slot. Align the notch Step 4: on the module with the notch on the iRIS-2400 module slot (Figure 3-13).

  • Page 41: Figure 3-13: Iris-2400 Module Installation

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-13: iRIS-2400 Module Installation Insert the iRIS-2400 module. Push the module in at a 20º angle (Figure 3-13). Step 5: Seat the iRIS-2400 module. Gently push downwards and the arms clip into Step 6: place (Figure 3-13). NOTE: After installing the iRIS-2400 module, use the LAN port with iRIS label (Figure 1-5) to establish a network connection.

  • Page 42: At/Atx Mode Selection

    PPC-F12B/15B/17B-BTi Panel PC 3.10 AT/ATX Mode Selection AT and ATX power modes can both be used on the PPC-F12B/15B/17B-BTi panel PC. The selection is made through an AT/ATX switch on the I/O interface panel. The switch is shown below. Figure 3-14: AT/ATX Mode Selection 3.11 Mounting the System WARNING! When mounting the PPC-F12B/15B/17B-BTi panel PC, it is advisable...

  • Page 43: Figure 3-15: Wall-Mounting Bracket

    PPC-F12B/15B/17B-BTi Panel PC Carefully mark the locations of the four bracket screw holes on the wall. Step 2: Drill four pilot holes at the marked locations on the wall for the bracket retention Step 3: screws. Align the wall-mounting bracket screw holes with the pilot holes. Step 4: Secure the mounting bracket to the wall by inserting the retention screws into Step 5:...

  • Page 44: Figure 3-16: Mount The Chassis

    PPC-F12B/15B/17B-BTi Panel PC NOTE: In the diagram below the bracket is already installed on the wall. Figure 3-16: Mount the Chassis Secure the panel PC with the wall-mounting kit. To do this, stick the protective Step 9: cushion to the wall-mounting kit first. Then, put the wall-mounting kit on the top panel of the panel PC.

  • Page 45: Panel Mounting

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-17: Secure the Chassis 3.11.2 Panel Mounting To mount the PPC-F12B/15B/17B-BTi panel PC into a panel, please follow the steps below. Install two mounting brackets onto the rear panel (Figure 3-18). Step 1: Page 31...

  • Page 46: Figure 3-18: Ppc-F17B-Bti Mounting Bracket Installation

    Cut out a section of the panel that corresponds to the rear panel dimensions of Step 3: the PPC-F12B/15B/17B-BTi. The recommended cutout sizes are shown below F igure 3-20 and Figure 3-21). F igure 3-19, Figure 3-19: PPC-F12B-BTi Panel Cutout Dimensions Page 32...

  • Page 47: Figure 3-20: Ppc-F15B-Bti Panel Cutout Dimensions

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-20: PPC-F15B-BTi Panel Cutout Dimensions Figure 3-21: PPC-F17B-BTi Panel Cutout Dimensions Slide the PPC-F12B/15B/17B-BTi through the hole until the aluminum frame is Step 4: flush against the panel. Page 33...

  • Page 48: Figure 3-22: Tighten The Mounting Clamp Screws

    PPC-F12B/15B/17B-BTi Panel PC Insert the mounting clamps into the mounting brackets and pre-formed holes Step 5: along the edges of the PPC-F12B/15B/17B-BTi, behind the aluminum frame (Figure 3-22). The required number of mounting clamps may vary by models. Tighten the screws that pass through the mounting clamps until the plastic caps Step 6: at the front of all the screws are firmly secured to the panel ( F igure 3-22).

  • Page 49: Rack And Cabinet Installation

    PPC-F12B/15B/17B-BTi Panel PC 3.11.3 Rack and Cabinet Installation The PPC-F12B/15B/17B-BTi flat panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below: NOTE: When purchasing the cabinet/rack installation bracket, make sure it is compatible with both the PPC-F12B/15B/17B-BTi flat panel PC and the rack/cabinet into which the PPC-F12B/15B/17B-BTi is installed.

  • Page 50: Figure 3-24: Secure The Rack/Cabinet Bracket

    PPC-F12B/15B/17B-BTi Panel PC Tighten the screws that pass through the mounting clamps until the plastic caps Step 4: at the front of all the screws are firmly secured to the bracket (Figure 3-24). Figure 3-24: Secure the Rack/Cabinet Bracket Slide the PPC-F12B/15B/17B-BTi with the attached rack/cabinet bracket into a Step 5: rack or cabinet (Figure 3-25).

  • Page 51: Arm Mounting

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-25: Install into a Rack/Cabinet Once the flat panel PC with the attached rack/cabinet bracket has been properly Step 6: inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (Figure 3-25).Step 0: 3.11.4 Arm Mounting The PPC-F12B/15B/17B-BTi is VESA (Video Electronics Standards Association)

  • Page 52: Figure 3-26: Arm Mounting Retention Screw Holes

    PPC-F12B/15B/17B-BTi Panel PC NOTE: When purchasing the arm please ensure that it is VESA compliant and that the arm has a 100 mm interface pad. If the mounting arm is not VESA compliant, it cannot be used to support the PPC-F12B/15B/17B-BTi panel Once the mounting arm has been firmly attached to its surface, lift the Step 2: PPC-F12B/15B/17B-BTi panel PC onto the interface pad of the mounting arm.

  • Page 53: Stand Mounting

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-27: Arm Mounting (ARM-11-RS) 3.11.5 Stand Mounting To mount the PPC-F12B/15B/17B-BTi using the stand mounting kit, please follow the steps below. Locate the screw holes on the rear of the PPC-F12B/15B/17B-BTi. This is where Step 1: the bracket will be attached.

  • Page 54: Figure 3-28: Stand Mounting Retention Screw Holes

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-28: Stand Mounting Retention Screw Holes Align the bracket with the screw holes. Step 2: To secure the bracket to the PPC-F12B/15B/17B-BTi, insert the retention screws Step 3: into the screw holes and tighten them.S t e p 0 : Figure 3-29: Stand Mounting (Stand-Axx) Page 40...

  • Page 55: Serial Device Connection

    PPC-F12B/15B/17B-BTi Panel PC 3.12 Serial Device Connection The PPC-F12B/15B/17B-BTi series has three serial ports, one RS-232/422/484 port and two RS-232 ports. The port locations are shown in Figure 3-30. The pinouts of the serial ports are listed in the following sections. Figure 3-30: Serial Port Locations 3.12.1 RS-232 Serial Ports (COM1, COM2) The pinouts of the RS-232 serial ports are listed in the following table.

  • Page 56: Rs-232/422/485 Serial Port (Com3)

    PPC-F12B/15B/17B-BTi Panel PC 3.12.2 RS-232/422/485 Serial Port (COM3) The RS-232/422/485 mode selection of COM3 is made through the system BIOS. Please refer to Section 5.3.2.1.3 for selecting COM port mode. The COM3 pinouts are listed in the following table. PIN NO. RS-232 RS-422 RS-485...

  • Page 57: Reset The System

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-32: Power Connectors and Power Button 3.14 Reset the System The reset button enables users to reboot the system when the system is turned on. The reset button location is shown in Figure 3-33. Press the reset button to reboot the system. Figure 3-33: Reset Button Location 3.15 Clear CMOS If the PPC-F12B/15B/17B-BTi fails to boot due to improper BIOS settings, the clear CMOS...

  • Page 58: Driver Installation

    PPC-F12B/15B/17B-BTi Panel PC 3.16 Driver Installation NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates. All the drivers for the PPC-F12B/15B/17B-BTi are on the utility CD that came with the system.

  • Page 59: Keypad Ap

    PPC-F12B/15B/17B-BTi Panel PC 3.16.1 Keypad AP Keypad AP is an OSD control tool developed by IEI. After the installation, the Keypad AP can be accessed by clicking the icon on the notification area. It allows users to control screen brightness and audio volume. Figure 3-35: Keypad AP 3.17 IPMI Setup Procedure The PPC-F12B/15B/17B-BTi features Intelligent Platform Management Interface (IPMI)

  • Page 60: Figure 3-36: Iei Iman Web Address

    PPC-F12B/15B/17B-BTi Panel PC To manage a client system from a remote console using IEI iMAN Web GUI, follow the steps below. Obtain the IP address of the managed system. It is recommended to use the Step 1: IPMI Tool on the managed system to obtain the IP address. To use IPMI Tool to obtain IP address, follow the steps below: a.

  • Page 61: Figure 3-37: Iei Iman Web Gui

    PPC-F12B/15B/17B-BTi Panel PC Figure 3-37: IEI iMAN Web GUI NOTE: To understand how to use the IEI iMAN Web GUI, please refer to the iRIS-2400 Web GUI user manual in the utility CD came with the PPC-F12B/15B/17B-BTi. The user manual describes each function in detail.

  • Page 62: System Maintenance

    PPC-F12B/15B/17B-BTi Panel PC Chapter System Maintenance Page 48...

  • Page 63: System Maintenance Introduction

    PPC-F12B/15B/17B-BTi Panel PC 4.1 System Maintenance Introduction The following system components may require maintenance.  Motherboard  Memory module If these components fail, they must be replaced. Please contact the system reseller or vendor to purchase replacement parts. Replacement instructions for the above listed components are described below.

  • Page 64: Bios Setup

    PPC-F12B/15B/17B-BTi Panel PC Chapter BIOS Setup Page 50...

  • Page 65: Introduction

    PPC-F12B/15B/17B-BTi Panel PC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 66: Getting Help

    PPC-F12B/15B/17B-BTi Panel PC Function Decrease the numeric value or make changes Page up Move to the next page Page down Move to the previous page Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option Page Setup Menu...

  • Page 67: Main

    PPC-F12B/15B/17B-BTi Panel PC  Security – Sets User and Supervisor Passwords.  Save & Exit – Selects exit options and loads default settings The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. 5.2 Main The Main BIOS menu ( B IOS Menu 1) appears when the BIOS Setup program is entered.

  • Page 68: Advanced

    PPC-F12B/15B/17B-BTi Panel PC The Main menu has two user configurable fields:  System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 69: Acpi Settings

    PPC-F12B/15B/17B-BTi Panel PC Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Server Mgmt > ACPI Settings System ACPI Parameters > F81866 Super IO Configuration > iWDD H/M Monitor > RTC Wake Settings >...

  • Page 70: F81866 Super Io Configuration

    PPC-F12B/15B/17B-BTi Panel PC  ACPI Sleep State [S3 (Suspend to RAM)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.  The caches are flushed and the CPU is powered S3 only (Suspend EFAULT off.

  • Page 71: Serial Port N Configuration

    PPC-F12B/15B/17B-BTi Panel PC 5.3.2.1 Serial Port n Configuration Use the Serial Port n Configuration menu ( B IOS Menu 5) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced Serial Port n Configuration Enable or Disable Serial Port (COM) Serial Port...

  • Page 72: Serial Port [Enabled]

    PPC-F12B/15B/17B-BTi Panel PC  Serial Port I/O port address is 3F8h and the interrupt IO=3F8h; address is IRQ3, 4 IRQ=3, 4  Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4  Serial Port I/O port address is 3E8h and the interrupt IO=3E8h;...

  • Page 73: Serial Port [Enabled]

    PPC-F12B/15B/17B-BTi Panel PC  Serial Port I/O port address is 2E8h and the interrupt IO=2E8h; address is IRQ3, 4 IRQ=3, 4 5.3.2.1.3 Serial Port 3 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. ...

  • Page 74: Serial Port Mode [Rs232]

    PPC-F12B/15B/17B-BTi Panel PC  Serial Port Mode [RS232] The Serial Port Mode option is used to set the Serial Port 3 signaling mode.  Enables serial port RS-232 support. RS232 EFAULT  Enables serial port RS-422 support. RS422  Enables serial port RS-485 support. RS485 5.3.2.1.4 Serial Port 4 Configuration ...

  • Page 75: Serial Port [Enabled]

    PPC-F12B/15B/17B-BTi Panel PC  Serial Port I/O port address is 2E8h and the interrupt IO=2E8h; address is IRQ10, 11 IRQ=10, 11  Serial Port I/O port address is 2E0h and the interrupt IO=2E0h; address is IRQ10, 11 IRQ=10, 11 5.3.2.1.5 Serial Port 5 Configuration ...

  • Page 76: Iwdd H/W Monitor

    PPC-F12B/15B/17B-BTi Panel PC  Serial Port I/O port address is 2E0h and the interrupt IO=2E0h; address is IRQ10, 11 IRQ=10, 11 5.3.3 iWDD H/W Monitor The iWDD H/W Monitor menu ( B IOS Menu 6) displays operating temperature and fan speeds.

  • Page 77: Rtc Wake Settings

    PPC-F12B/15B/17B-BTi Panel PC +5VSB +3.3V +3.3VSB 5.3.4 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 7) enables the system to wake at the specified time. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 78: Serial Port Console Redirection

    PPC-F12B/15B/17B-BTi Panel PC selected: Wake up date Wake up hour Wake up minute Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 5.3.5 Serial Port Console Redirection The Serial Port Console Redirection menu ( B IOS Menu 8) allows the console redirection options to be configured.

  • Page 79: Console Redirection Settings

    PPC-F12B/15B/17B-BTi Panel PC  Disabled the console redirection function Disabled EFAULT  Enabled the console redirection function Enabled 5.3.5.1 Console Redirection Settings Use the Console Redirection Settings menu ( B IOS Menu 9) to configure console redirection settings of the specified serial port. This menu appears only when the Console Redirection is enabled.

  • Page 80: Bits Per Second [115200]

    PPC-F12B/15B/17B-BTi Panel PC  Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.  Sets the serial port transmission speed at 9600. 9600 ...

  • Page 81: Cpu Configuration

    PPC-F12B/15B/17B-BTi Panel PC  Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit. ...

  • Page 82: Intel Virtualization Technology [Enabled]

    PPC-F12B/15B/17B-BTi Panel PC  Processor Cores: Lists the number of the processor core  Intel HT Technology: Indicates if Intel HT Technology is supported by the CPU. Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the  CPU.

  • Page 83: Ide Configuration

    PPC-F12B/15B/17B-BTi Panel PC 5.3.7 IDE Configuration Use the IDE Configuration menu ( B IOS Menu 11) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced IDE Configuration Enable or disable Serial...

  • Page 84: Usb Configuration

    PPC-F12B/15B/17B-BTi Panel PC 5.3.8 USB Configuration Use the USB Configuration menu ( B IOS Menu 12) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 85: Xhci Hand-Off [Enabled]

    PPC-F12B/15B/17B-BTi Panel PC  Legacy USB support disabled Disabled  Legacy USB support disabled if no USB devices are Auto connected  XHCI Hand-off [Enabled] Use the XHCI Hand-off BIOS option to enable or disable XHCI hand-off support. This option is a workaround for OS without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

  • Page 86: Usb Transfer Time-Out [20 Sec]

    PPC-F12B/15B/17B-BTi Panel PC  XHCI hand-off support disabled Disabled  XHCI hand-off support enabled Enabled EFAULT  USB transfer time-out [20 sec] Use the USB transfer time-out option to configure time-out value for control, bulk and interrupt transfers.  1 sec ...

  • Page 87: Iei Feature

    PPC-F12B/15B/17B-BTi Panel PC 5.3.9 iEi Feature Use the iEi Feature menu (BIOS Menu 13) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function [Disabled] system automatically within 10 min, when OS...

  • Page 88: Chipset

    PPC-F12B/15B/17B-BTi Panel PC 5.4 Chipset Use the Chipset menu ( B IOS Menu 14) to access the PCH and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. Aptio Setup Utility –...

  • Page 89: North Bridge

    PPC-F12B/15B/17B-BTi Panel PC 5.4.1 North Bridge Use the North Bridge menu ( B IOS Menu 15) to configure the north bridge parameters. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Chipset > Intel IGD Configuration Config Intel IGD Settings Memory Information --------------------- : Select Screen...

  • Page 90: Primary Display [Auto]

    PPC-F12B/15B/17B-BTi Panel PC  Primary Display [Auto] Use the Primary Display option to select the display device used by the system when it boots. Configuration options are listed below.  Auto EFAULT   PCIe  DVMT Pre-Allocated [256M] Use the DVMT Pre-Allocated option to specify the amount of system memory that can be used by the internal graphics device.

  • Page 91: South Bridge

    PPC-F12B/15B/17B-BTi Panel PC   HDMI LVDS  5.4.2 South Bridge Use the South Bridge menu (BIOS Menu 17) to configure the south bridge parameters. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Chipset Auto Power Button Status [Enable (AT)] PCI Express Configuration settings...

  • Page 92: Pci Express Configuration

    PPC-F12B/15B/17B-BTi Panel PC  Allow the use of USB 3.0 devices prior to OS boot. Smart EFAULT USB 3.0 ports function as USB 3.0 ports even during a Auto reboot. 5.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 18) to configure the PCI Express slots.

  • Page 93: Security

    PPC-F12B/15B/17B-BTi Panel PC 5.5 Security Use the Security menu (BIOS Menu 19) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Server Mgmt Password Description Set Administrator Password If ONLY the Administrator’s password is set,...

  • Page 94: Boot

    PPC-F12B/15B/17B-BTi Panel PC 5.6 Boot Use the Boot menu ( B IOS Menu 20) to configure system boot options. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Server Mgmt Boot Configuration Select the keyboard Bootup NumLock State [On]...

  • Page 95: Quiet Boot [Enabled]

    PPC-F12B/15B/17B-BTi Panel PC  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  OEM Logo displayed instead of POST messages Enabled EFAULT  UEFI Boot [Disabled] Use the UEFI Boot option to enable or disable to boot from the UEFI devices.

  • Page 96: Save & Exit

    PPC-F12B/15B/17B-BTi Panel PC 5.7 Save & Exit Use the Save & Exit menu ( B IOS Menu 21) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset...

  • Page 97: Server Mgmt

    PPC-F12B/15B/17B-BTi Panel PC  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. 5.8 Server Mgmt Use the Server Mgmt menu (BIOS Menu 22) to configure system event log and BMC network parameters.

  • Page 98: System Event Log

    PPC-F12B/15B/17B-BTi Panel PC 5.8.1 System Event Log Use the System Event Log menu (BIOS Menu 23) to configure system event log options. Aptio Setup Utility – Copyright (C) 2013 American Megatrends, Inc. Server Mgmt Enabling/Disabling Options Change this to enable or SEL Components Disabled[Enabled] disable all features of...

  • Page 99: Bmc Network Configuration

    PPC-F12B/15B/17B-BTi Panel PC  Erase SEL on every reset Yes, On every reset  When SEL is Full [Do Nothing] Use the When SEL is Full option to select an option for reaction to a full SEL.  Do nothing when SEL is full Do Nothing EFAULT ...

  • Page 100: Configuration Address Source [Unspecified]

    PPC-F12B/15B/17B-BTi Panel PC  Configuration Address source [Unspecified] Use the Configuration Address source to configure LAN channel parameters statically or dynamically (by BIOS or BMC).  BMC network parameters will not be Unspecified EFAULT modified during BIOS phase.  Select to modify the following BMC Static network parameters: ...

  • Page 101: Interface Connectors

    PPC-F12B/15B/17B-BTi Panel PC Chapter Interface Connectors Page 87...

  • Page 102: Peripheral Interface Connectors

    PPC-F12B/15B/17B-BTi Panel PC 6.1 Peripheral Interface Connectors The PPC-F12B/15B/17B-BTi panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1 and Figure 6-2. The Pin 1 locations of the on-board connectors are also indicated in the diagrams.

  • Page 103: Internal Peripheral Connectors

    PPC-F12B/15B/17B-BTi Panel PC Figure 6-2: Main Board Layout Diagram (Solder Side) 6.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the PPC-F12B/15B/17B-BTi motherboard.

  • Page 104: Table 6-1: Peripheral Interface Connectors

    PPC-F12B/15B/17B-BTi Panel PC Connector Type Label C connector 4-pin wafer I2C1 IPMI active LED connector 2-pin header LEDCN1 iRIS module slot iRIS-2400 slot IPMI1 Keyboard and mouse connector 6-pin wafer KB_MS1 Keypad connector (for RD test) 9-pin wafer OSD1 LAN active LED connectors 2-pin header LAN_LED1 LVDS connector...

  • Page 105: Audio Connector (Audio1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.1 Audio Connector (AUDIO1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION   SPK_OUT-R LINE_IN-R     SPK_OUT-L LINE_IN-L     MIC-R MIC-L Table 6-2: Audio Connector (AUDIO1) Pinouts 6.2.2 Chassis Intrusion Connector (CHASSIS1) PIN NO.

  • Page 106: Dio Connector (Dio1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.4 DIO Connector (DIO1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION     Output 3 Output 2   Output 1 Output 0   Input 3 Input 2   Input 1 Input 0 Table 6-5: DIO Connector (DIO1) Pinouts 6.2.5 EC Debug Port (CN2) PIN NO.

  • Page 107: Fan Connector (Cpu_Fan1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.6 Fan Connector (CPU_FAN1) PIN NO. DESCRIPTION +12V FANIO Table 6-7: Fan Connector (CPU_FAN1) Pinouts 6.2.7 Front Panel Connector (F_PANEL1) PIN NO. DESCRIPTION PWR_LED+ PWR_LED- HDD_LED+ HDD_LED- Table 6-8: Front Panel Connector (F_PANEL1) Pinouts 6.2.8 I C Connector (I2C1) PIN NO.

  • Page 108: Ipmi Active Led Connector (Ledcn1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.9 IPMI Active LED Connector (LEDCN1) PIN NO. DESCRIPTION IPMI_LED+ IPMI_LED- Table 6-10: IPMI Active LED Connector (LEDCN1) Pinouts 6.2.10 Keyboard and Mouse Connector (KB_MS1) PIN NO. DESCRIPTION VCC5_KBMS MSDATA MSCLK KBDATA KBCLK KBGND Table 6-11: Keyboard and Mouse Connector (KB_MS1) Pinouts 6.2.11 Keypad Connector (OSD1) PIN NO.

  • Page 109: Lan Active Led Connectors (Lan_Led1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.12 LAN Active LED Connectors (LAN_LED1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION   LAN1_LINK_ACT1- +V3.3LAN1   LAN2_LINK_ACT1- +V3.3LAN2 Table 6-13: LAN Active LED Connectors (LAN_LED1) Pinouts 6.2.13 LVDS Connector (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDS_A_TX0-P LVDS_A _TX0-N...

  • Page 110: Lvds Backlight Connector (Inverter1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.14 LVDS Backlight Connector (INVERTER1) PIN NO. DESCRIPTION +12V +12V Backlight ON/OFF Backlight Brightness Control Table 6-15: LVDS Backlight Connector (INVERTER1) Pinouts 6.2.15 PCIe Mini (MINI_PCIE1) and mSATA (M_SATA1) Card Slots PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# +3.3V +1.5V...

  • Page 111: Power Button Connector (Pwr_Btn1)

    PPC-F12B/15B/17B-BTi Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION USBD+ +1.5V MSATA_SEL# +3.3V Table 6-16: PCIe Mini (MINI_PCIE1) and mSATA (M_SATA1) Card Pinouts 6.2.16 Power Button Connector (PWR_BTN1) PIN NO. DESCRIPTION PWR_BTN+ PWR_BTN- Table 6-17: Power Button Connector (PWR_BTN1) Pinouts 6.2.17 Power Source Connector (PWR1) PIN NO.

  • Page 112: Resistive Touchscreen Connector (Touch1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.19 Resistive Touchscreen Connector (TOUCH1) PIN NO. 8-Wire 4-Wire 5-Wire Right Sense Left Sense Bottom Sense Top Sense Sense (S) Right Excite Right LR (X) Left Excite Left LL (L) Bottom Excite Bottom UR (H) Top Excite UL (Y) Table 6-20: Resistive Touchscreen Connector (TOUCH1) Pinouts 6.2.20 RS-232 Connector (COM4, COM5)

  • Page 113: Sata 6Gb/S Connectors (Sata1, Sata2)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.21 SATA 6Gb/s Connectors (SATA1, SATA2) PIN NO. DESCRIPTION SATA_TX+ SATA_TX- SATA_RX- SATA_RX+ Table 6-22: SATA 6Gb/s Connectors (SATA1, SATA2) Pinouts 6.2.22 SATA Power Connectors (SATA_PWR1, SATA_PWR2) PIN NO. DESCRIPTION +12V Table 6-23: SATA Power Connectors (SATA_PWR1, SATA_PWR2) Pinouts 6.2.23 SMBus Connector (SMB1) PIN NO.

  • Page 114: Spi Flash Connector (Jspi1)

    PPC-F12B/15B/17B-BTi Panel PC 6.2.24 SPI Flash Connector (JSPI1) PIN NO. DESCRIPTION +V3.3M_SPI_CON SPI_CS SPI_SO_SW SPI_CLK_SW SPI_SI_SW Table 6-25: SPI Flash Connector (JSPI1) Pinouts 6.2.25 SPI Flash (EC) Connector (JSPI2) PIN NO. DESCRIPTION +V3.3M_SPI_CON_EC SPI_CS#0_CN_EC SPI_SO_SW_EC SPI_CLK_SW_EC SPI_SI_SW_EC Table 6-26: SPI Flash (EC) Connector (JSPI2) Pinouts 6.2.26 U3 Firmware Programming Connector (JP2) PIN NO.

  • Page 115: Usb 2.0 Connector (Usb1)

    PPC-F12B/15B/17B-BTi Panel PC AUTO_DATA Table 6-27: U3 Firmware Programming Connector (JP2) Pinouts 6.2.27 USB 2.0 Connector (USB1) PIN NO. DESCRIPTION USB_DATA- USB_DATA+ Table 6-28: USB 2.0 Connector (USB1) Pinouts 6.3 External Interface Panel Connectors The table below lists the rear panel connectors on the PPC-F12B/15B/17B-BTi motherboard.

  • Page 116: Hdmi Connector (Hdmi1)

    PPC-F12B/15B/17B-BTi Panel PC 6.3.1 HDMI Connector (HDMI1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2+ HDMI_CLK# HDMI_DATA2#- HDMI_DATA1+ HDMI_SCL HDMI_DATA1#- HDMI_SDA HDMI_DATA0+ +5VCC HDMI_DATA0#- HDMI_HPD HDMI_CLK+ Table 6-30: HDMI Connector (HDMI1) Pinouts 6.3.2 GbE Connectors (LAN1, LAN2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDIA0- MDIA2+...

  • Page 117: Rs-232/422/485 Serial Port (Com3)

    PPC-F12B/15B/17B-BTi Panel PC 6.3.4 RS-232/422/485 Serial Port (COM3) PIN NO. RS-232 RS-422 RS-485 TXD422- TXD485- TXD422+ TXD485+ RXD422+ RXD422- Table 6-33: RS-232/422/485 Serial Port (COM3) Pinouts 6.3.5 USB 2.0 Connectors (USB_CON1) PIN NO. DESCRIPTION USB_DATA- USB_DATA+ Table 6-34: USB 2.0 Connector (USB_CON1) Pinouts 6.3.6 USB 3.0 Connectors (USB3_CON1) PIN NO.

  • Page 118: Vga Connector (Vga1)

    PPC-F12B/15B/17B-BTi Panel PC USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ Table 6-35: USB 3.0 Connector (USB3_CON1) Pinouts 6.3.7 VGA Connector (VGA1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN GROUND BLUE DDCDA GROUND HSYNC GROUND VSYNC GROUND DDCCLK GROUND Table 6-36: VGA Connector (VGA1) Pinouts 6.4 Preconfigured Jumpers The following jumpers are preconfigured for the PPC-F12B/15B/17B-BTi.

  • Page 119: Backlight Voltage Selection Jumper (Jp1)

    PPC-F12B/15B/17B-BTi Panel PC 6.4.1 Backlight Voltage Selection Jumper (JP1) Description Short 1-2 Short 2-3 +3.3V (Default) Table 6-38: Panel Voltage Selection Jumper (JP1) Settings 6.4.2 LVDS Panel Resolution Selection Switch (SW1) * ON=0, OFF=1; Single=S, Dual=D SW1 (4-3-2-1) Description 0000 800x600 18-bit S (default) 0001 1024x768 18-bit S...

  • Page 120: Panel Voltage Selection Jumper (Jlcd_Pwr1)

    PPC-F12B/15B/17B-BTi Panel PC 6.4.3 Panel Voltage Selection Jumper (JLCD_PWR1) Description Short 1-2 +3.3V (Default) Short 3-4 Short 5-6 +12V Table 6-40: Panel Voltage Selection Jumper (JLCD_PWR1) Settings Page 106...

  • Page 121: A Regulatory Compliance

    PPC-F12B/15B/17B-BTi Panel PC Appendix Regulatory Compliance Page 107...
  • Page 122 PPC-F12B/15B/17B-BTi Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive 2004/108/EC  Low-Voltage Directive 2006/95/EC  RoHS II Directive 2011/65/EU  Ecodesign Directive 2009/125/EC  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 123 PPC-F12B/15B/17B-BTi Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
  • Page 124 PPC-F12B/15B/17B-BTi Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 1999/5/CE. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
  • Page 125 PPC-F12B/15B/17B-BTi Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and  This device must accept any interference received, including interference ...

  • Page 126: B Bios Configuration Options

    PPC-F12B/15B/17B-BTi Panel PC Appendix BIOS Configuration Options Page 112...

  • Page 127: Bios Configuration Options

    PPC-F12B/15B/17B-BTi Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 6 6 5 5 　 System Date [xx/xx/xx] ......................54 　 System Time [xx:xx:xx] .......................54 　 ACPI Sleep State [S3 (Suspend to RAM)]................56 　 Serial Port [Enabled]......................57 　...
  • Page 128 PPC-F12B/15B/17B-BTi Panel PC 　 USB transfer time-out [20 sec] ...................72 　 Device transfer time-out [20 sec] ..................72 　 Device power-up delay [Auto] ....................72 　 Auto Recovery Function [Disabled]...................73 　 Primary Display [Auto] ......................76 　 DVMT Pre-Allocated [256M] ....................76 　 DVMT Total Gfx Mem [Max]....................76 　...

  • Page 129: C Safety Precautions

    PPC-F12B/15B/17B-BTi Panel PC Appendix Safety Precautions Page 115...

  • Page 130: Safety Precautions

    PPC-F12B/15B/17B-BTi Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the EP series. C.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: C.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 131: Anti-Static Precautions

    PPC-F12B/15B/17B-BTi Panel PC C.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the EP series may result in permanent damage to the EP series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the EP series.

  • Page 132: Maintenance And Cleaning Precautions

    PPC-F12B/15B/17B-BTi Panel PC  Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method. Within the European Union: ...

  • Page 133: Cleaning Tools

    PPC-F12B/15B/17B-BTi Panel PC C.2.2 Cleaning Tools Some components in the EP series may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the EP series. ...

  • Page 134: D Watchdog Timer

    PPC-F12B/15B/17B-BTi Panel PC Appendix Watchdog Timer Page 120...
  • Page 135 PPC-F12B/15B/17B-BTi Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 136: Example Program

    PPC-F12B/15B/17B-BTi Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 137: E Hazardous Materials Disclosure

    PPC-F12B/15B/17B-BTi Panel PC Appendix Hazardous Materials Disclosure Page 123...

  • Page 138: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    PPC-F12B/15B/17B-BTi Panel PC E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 139 PPC-F12B/15B/17B-BTi Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery This toxic or hazardous substance is contained in all of the homogeneous materials for the part is below...
  • Page 140 PPC-F12B/15B/17B-BTi Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 Page 126...

This manual is also suitable for:

Ppc-f15b-btiPpc-f17b-btiPpc-f12bPpc-f15bPpc-f12b-bti seriesPpc-f15b-bti series ... Show all

Table of Contents
