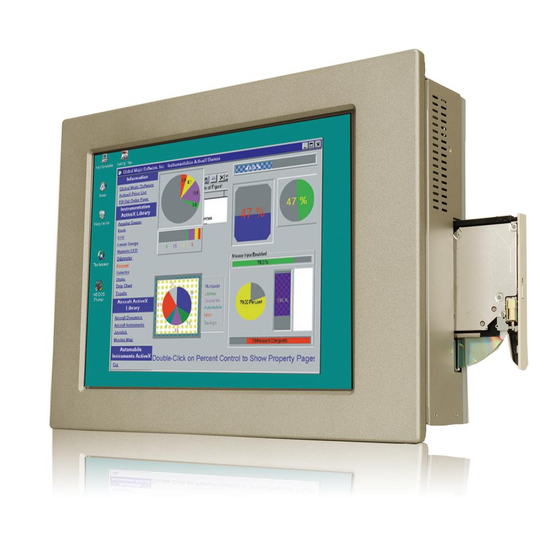

IEI Technology PPC-5150A-G41 User Manual

Ppc-51xxa-g41 series; wids-51xa-g41 industrial panel pc for lga775 intel qaud core cpu tft lcd, dual gigabit ethernet, touchscreen, ip 65 front panel , rohs compilian
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PPC-51xxA-G41/WIDS-51xA-G41 Panel PC
IEI Technology Corp.
MODEL:
PPC-51xxA-G41
WIDS-51xA-G41
Industrial Panel PC for LGA775 Intel® Qaud Core CPU
TFT LCD, Dual Gigabit Ethernet, Touchscreen,
IP 65 Front Panel, RoHS Compliant
Rev. 1.00 – 25 November, 2010
User Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-5150A-G41 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PPC-5150A-G41

Summary of Contents for IEI Technology PPC-5150A-G41

  • Page 1 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC IEI Technology Corp. MODEL: PPC-51xxA-G41 WIDS-51xA-G41 Industrial Panel PC for LGA775 Intel® Qaud Core CPU TFT LCD, Dual Gigabit Ethernet, Touchscreen, IP 65 Front Panel, RoHS Compliant User Manual Page i Rev. 1.00 – 25 November, 2010...
  • Page 2 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Revision Date Version Changes 25 November, 2010 1.00 Initial release Page ii...
  • Page 3 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    2.1.1.1 PPC-51xxA-G41 Specifications ..............11 2.1.1.2 WIDS-51xA-G41Specifications ............... 14 2.2 D ......................16 IMENSIONS 2.2.1 PPC-5150A-G41 Dimensions ................17 2.2.2 PPC-5170A-G41 Dimensions ................18 2.2.3 PPC-5190A-G41 Dimensions ................19 2.2.4 WIDS-515A-G41 Dimensions ................20 2.2.5 WIDS-517A-G41 Dimensions ................21 2.3 G ....................
  • Page 5 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.6.1 Flat Screen ....................... 24 2.6.2 Touch Screen ....................24 2.7 P ......................25 OWER UPPLY 2.7.1.1 ACE-A622A-RS Specifications..............25 2.7.1.2 ACE-4520C-RS Specifications..............25 2.8 E ....................26 XPANSION LOTS 2.9 W LAN (WIDS S ) ..............26 IRELESS ERIES 3 UNPACKING .......................
  • Page 6 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.11.2 Panel/ Mounting..................... 58 4.11.3 Rack and Cabinet Installation................ 63 4.11.4 Arm Mounting ....................63 5 BIOS SETUP ........................ 65 5.1 I ......................67 NTRODUCTION 5.1.1 Starting Setup....................67 5.1.2 Using Setup ...................... 67 5.1.3 Getting Help..................... 68 5.1.4 Unable to Reboot after Configuration Changes ..........
  • Page 7 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 6.2 M ................108 OTHERBOARD EPLACEMENT 6.3 B ..................108 OVER EMOVAL 6.4 DIMM R ................... 109 EPLACEMENT 6.5 E ................110 LEVATED LATFORM EMOVAL 6.6 PSU M .................112 ODULE EPLACEMENT 6.6.1 Remove the Old PSU..................112 6.6.2 Install the New PSU ..................114 6.7 S ..............115 YSTEM...
  • Page 8 Figure 1-7: Left View........................8 Figure 1-8: Right View ........................8 Figure 1-9: Internal Components ....................9 Figure 2-1: PPC-5150A-G41 Dimensions (units in mm)............17 Figure 2-2: PPC-5170A-G41 Dimensions (units in mm)............18 Figure 2-3: PPC-5190A-G41 Dimensions (units in mm)............19 Figure 2-4: WIDS-515A-G41 Dimensions (units in mm)............20 Figure 2-5: WIDS-517A-G41 Dimensions (units in mm)............21...
  • Page 9 Figure 4-28: Wall-mounting Bracket ...................56 Figure 4-29: Mount the Chassis ....................57 Figure 4-30: Secure the Chassis ....................58 Figure 4-31: PPC-5150A-G41 Panel Cutout Dimensions ............59 Figure 4-32: PPC-5170A-G41 Panel Cutout Dimensions ............59 Figure 4-33: PPC-5190A-G41 Panel Cutout Dimensions ............60 Figure 4-34: WIDS-515A-G41 Panel Cutout Dimensions ............60 Figure 4-35: WIDS-517A-G41 Panel Cutout Dimensions ............61...
  • Page 10 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 6-8: PSU Rear Panel Screws..................114 Figure 6-9: System Cooling Fans Motherboard Connector ..........115 Figure 6-10: System Cooling Fans Left Panel Retention Screws......... 116 Page x...
  • Page 11 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC List of Tables Table 1-1: PPC-51xxA-G41 Model Variations................3 Table 1-2: WIDS-51xA-G41 Model Variations................3 Table 2-1: PPC-51xxA-G41 Series System Specifications ............13 Table 2-2: WIDS-51xA-G41 Series System Specifications ............16 Table 3-1: Package List Contents ....................31 Table 4-1: Jumpers ........................36 Table 4-2: Preconfigured Jumpers .....................37 Table 4-3: CF Card Setup Jumper Settings ................37 Table 4-4: COM1 to COM5 Pin 9 Setting Jumper Settings ............38...
  • Page 12 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC BIOS Menus BIOS Menu 1: Main ........................69 BIOS Menu 2: Advanced ......................71 BIOS Menu 3: CPU Configuration ....................71 BIOS Menu 4: IDE Configuration....................72 BIOS Menu 5: IDE Master and IDE Slave Configuration ............74 BIOS Menu 6: Super IO Configuration..................78 BIOS Menu 7: Hardware Health Configuration ................83 BIOS Menu 8: Power Configuration....................86 BIOS Menu 9: ACPI Settings .......................87...

  • Page 13: Introduction

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Chapter Introduction Page 1...

  • Page 14: General Overview

    1.1.1 Model Variations Twelve IEI PPC-51xxA-G41 models are available. The models are listed in Table 1-1. Model Power Screen PPC-5150A-G41-E15/R/1G AC input 15” 2.2 GHz Intel® Celeron® E1500 PPC-5150AD-G41-E15/R/1G 18~36 V DC input 15”...

  • Page 15: Applications

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Model Power Screen PPC-5170A-G41-E15/R/1G AC input 17” 2.2 GHz Intel® Celeron® E1500 PPC-5170AD-G41-E15/R/1G 18~36 V DC input 17” PPC-5170A-G41-Q94/R/1G AC input 17” 2.66 GHz Intel® Quad Core Q9400 PPC-5170AD-G41-Q94/R/1G 18~36 V DC input 17” PPC-5190A-G41-E15/R/1G AC input 19”...

  • Page 16: Features

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Automated manufacturing processes Public information gathering point Plant environment monitoring system Factory automation Manufacturing shop flow Equipment and device control 1.1.3 Features Some of the features of the PPC-51xxA-G41/WIDS-51xA-G41 flat panel PC include: Mainstream panel PC design with dual display function. Aluminum die-casting front panel meet IP 65 water proof standard Support LGA755 Intel®...

  • Page 17: Front Panel

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 1.2.1 Front Panel The front panel of the PPC-51xxA-G41/WIDS-51xA-G41 (Figure 1-2) is a flat panel TFT LCD screen surrounded by an aluminum frame. Figure 1-2: PPC-51xxA-G41 Front View The WIDS-51xA-G41 also has wireless antenna and two USB ports protected by waterproof cover on the front panel.

  • Page 18: Rear Panel

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 1.2.2 Rear Panel The rear panel has a fan vent, four VESA standard mounting holes and several retention screw holes. The VESA mounting holes are circled in Figure 1-4. Figure 1-4: Rear View 1.2.3 Top Panel The top panel has three sets of mounting clamp slot, fan vents and retention screws for securing the drive bay bracket.

  • Page 19: Bottom Panel

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 1.2.4 Bottom Panel The bottom panel shown in Figure 1-6 has the following interfaces: 1 x Power input connector 1 x Power switch 4 x USB connectors (six USB ports for PPC-5190A-G41) 1 x Reset button 2 x RJ-45 GbE connectors 1 x PS/2 mouse connector 1 x PS/2 keyboard connector 4 x RS-232 connectors (COM1, COM2, COM3 and COM4)

  • Page 20: Left Panel

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 1.2.5 Left Panel The left side panel hosts three cooling fans that cool the interior of the system (Figure 1-7). Figure 1-7: Left View 1.2.6 Right Panel The right panel has a CD-ROM drive bay for CD-ROM drive installation (Figure 1-8). Figure 1-8: Right View Page 8...

  • Page 21: Internal Overview

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 1.3 Internal Overview The PPC-51xxA-G41/WIDS-51xA-G41 internal components are configured in three levels. The PSU cover bracket to the left (Figure 1-9) supports the hard drive and optical drive brackets. Below the PSU cover bracket is the power supply. On the same level as the power supply is the motherboard.

  • Page 22: Specifications

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Chapter Specifications Page 10...

  • Page 23: Introduction

    2 x Cooling fans The technical specifications for these components and the system are shown in the sections below. 2.1.1 System Specifications 2.1.1.1 PPC-51xxA-G41 Specifications The technical specifications for the PPC-51xxA-G41 system are listed below. PPC-5150A-G41 PPC-5170A-G41 PPC-5190A-G41 Size 15” 17”...
  • Page 24 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC PPC-5150A-G41 PPC-5170A-G41 PPC-5190A-G41 Two 2.0 GB 800/1066 MHz DDR3 SDRAM DIMM (system max. Memory 4.0 GB) Solid State Drive One CompactFlash® Type II socket (SSD) One 2.5” SATA 3Gb/s or IDE anti-shock drive bay Drive Bay One slim type CD-ROM bay...

  • Page 25: Table 2-1: Ppc-51Xxa-G41 Series System Specifications

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC PPC-5150A-G41 PPC-5170A-G41 PPC-5190A-G41 Operating -10ºC ~ 50ºC Temperature Storage Temperature -20ºC ~ 60ºC 5 Hz ~ 17 Hz 0.1” double amplitude displacement Vibration 17 Hz ~ 640 Hz 1.5G acceleration peak-to-peak Shock 10G acceleration peak-to-peak (11 ms)

  • Page 26: Wids-51Xa-G41Specifications

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.1.1.2 WIDS-51xA-G41 Specifications The technical specifications for the WIDS-51xA-G41 system are listed below. WIDS-515A-G41 WIDS-517A-G41 Size 15” 17” Resolution 1024 x 768 (XGA) 1280 x 1024 (SXGA) Brightness 350 cd/m 380 cd/m Contrast Ratio 700:1 1000:1 Specs. Pixel Pitch (mm) 0.297 x 0.297 0.264 x 0.264...
  • Page 27 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC WIDS-515A-G41 WIDS-517A-G41 1 x RS-232/422/485 4 x RS-232 6 x USB 2.0 (two on front panel are waterproof) 2 x PS/2 for keyboard and mouse 1 x Parallel port connector 1 x VGA-out connector I/O ports 2 x LAN connectors 3 x Audio connectors (line-in, line-out and mic-in) 1 x CMOS reset button 1 x AT/ATX switch...

  • Page 28: Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC WIDS-515A-G41 WIDS-517A-G41 Dimensions (W x H x D) 410 x 309 x 110.5 452 x 356 x 115 ACE-A622A-RS 220 W AC Input ATX Input: 90 V AC~264 V AC, 50/60 Hz (A Model) Output(max.): 3.3 A@14 A, 5 V@16 A, 12 V@10 A, -12 V@0.8 A Power Supply ACE-4520C-RS...

  • Page 29: Ppc-5150A-G41 Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.2.1 PPC-5150A-G41 Dimensions The dimensions of the PPC-5150A-G41 flat panel PC are shown in Figure 2-1 below. Figure 2-1: PPC-5150A-G41 Dimensions (units in mm) Page 17...

  • Page 30: Ppc-5170A-G41 Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.2.2 PPC-5170A-G41 Dimensions The dimensions of the PPC-5170A-G41 flat panel PC are shown in Figure 2-2 below. Figure 2-2: PPC-5170A-G41 Dimensions (units in mm) Page 18...

  • Page 31: Ppc-5190A-G41 Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.2.3 PPC-5190A-G41 Dimensions The dimensions of the PPC-5190A-G41 flat panel PC are shown in Figure 2-3 below. Figure 2-3: PPC-5190A-G41 Dimensions (units in mm) Page 19...

  • Page 32: Wids-515A-G41 Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.2.4 WIDS-515A-G41 Dimensions The dimensions of the WIDS-515A-G41 flat panel PC are shown below. Figure 2-4: WIDS-515A-G41 Dimensions (units in mm) Page 20...

  • Page 33: Wids-517A-G41 Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.2.5 WIDS-517A-G41 Dimensions The dimensions of the WIDS-517A-G41 flat panel PC are shown below. Figure 2-5: WIDS-517A-G41 Dimensions (units in mm) Page 21...

  • Page 34: Graphics Support

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.3 Graphics Support The Intel® G41 chipset has an integrated graphics engine, Intel® Graphics Media Accelerator X4500 that supports analog CRT display devices. The VGA port on the external peripheral interface connector panel connects a peripheral monitor to the PPC-51xxA-G41/WIDS-51xA-G41 system.

  • Page 35: Storage

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 2.5 Storage There following storage options are available: CompactFlash® SATA hard drive ® 2.5.1 CompactFlash The CompactFlash® socket supports standard CompactFlash® Type II cards. The chipset flash interface is multiplexed with an IDE interface and can be connected to an array of industry standard NAND Flash or NOR Flash devices.

  • Page 36: Front Panel

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 2-8: SATA Hard Drive Slot 2.6 Front Panel The front panel of the PPC-51xxA-G41/WIDS-51xA-G41 consists of an LCD monitor and a touch screen panel. 2.6.1 Flat Screen The PPC-51xxA-G41/WIDS-51xA-G41 comes with a TFT LCD monitor. The tough construction of the TFT monitor allows the PPC-51xxA-G41/WIDS-51xA-G41 to withstand the conditions it is likely to be exposed to during regular use.

  • Page 37: Power Supply

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 78% transmission Control chipset built onto the motherboard C to 50 C operating temperature 7 V maximum voltage 2.7 Power Supply The PPC-51xxA-G41/WIDS-51xA-G41 flat panel PC comes with either an ACE-A662A 220 W AC 1U, or ACE-4520C 200 W DC 1U RoHS compliant ATX power supply. The PSUs have an MTBF greater than 100,000 hours.

  • Page 38: Expansion Slots

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 3.3 V 12 V -12 V Output (max) 12 A 12 A 15.4 A 0.5 A 2.8 Expansion Slots The riser card with either a PCI or PCIe x1 expansion card slot can be separately purchased and installed in the PPC-51xxA-G41/WIDS-51xA-G41. The expansion card slots add additional functionality to the PPC-51xxA-G41/WIDS-51xA-G41.

  • Page 39: Figure 2-10: Wireless Lan Module (Installed By Users)

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 2-10: Wireless LAN Module (Installed by Users) The wireless module is then connected directly to the front panel PIFA antenna. Figure 2-11: Antenna Page 27...

  • Page 40: Unpacking

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Chapter Unpacking Page 28...

  • Page 41: Anti-Static Precautions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 3.1 Anti-static Precautions WARNING! Failure to take ESD precautions during the installation of the PPC-51xxA-G41/WIDS-51xA-G41 may result in permanent damage to the PPC-51xxA-G41/WIDS-51xA-G41 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-51xxA-G41/WIDS-51xA-G41.

  • Page 42: Package Contents

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 3.3 Package Contents NOTE: If any components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the PPC-51xxA-G41/WIDS-51xA-G41 was purchased from or contact an sales representative directly sending email sales@iei.com.tw.

  • Page 43: Table 3-1: Package List Contents

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Quantity Item and Part Number Image User manual CD and driver CD Touch pen Table 3-1: Package List Contents Page 31...

  • Page 44: Installation And Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Chapter Installation and Configuration Page 32...

  • Page 45: Installation Precautions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.1 Installation Precautions When installing the PPC-51xxA-G41/WIDS-51xA-G41, please follow the precautions listed below: Turn power off: When installing the PPC-51xxA-G41/WIDS-51xA-G41 make sure the power is off. Failing to turn off the power may cause severe injury to the body and/or damage to the system.

  • Page 46: Installation And Configuration Steps

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Removal and reinstallation of some of the components are described in Chapter 4. 4.3 Installation and Configuration Steps The following installation steps must be followed. Step 1: Unpack the PPC-51xxA-G41/WIDS-51xA-G41. Step 2: Set the jumper settings. Step 3: Install HDD, CompactFlash®...

  • Page 47: Remove The

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.4 Remove the Back Cover Remove all the retention screws on the back cover. Lift the cover up to remove (Figure 4-1). Figure 4-1: Back Cover Retention Screws Page 35...

  • Page 48: Jumper Settings

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.5 Jumper Settings NOTE: A jumper is a metal bridge that is used to close an electrical circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.

  • Page 49: Preconfigured Jumpers

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.5.2 Preconfigured Jumpers WARNING: Do not change the settings on the jumpers in described here. Doing so may disable or damage the system The following jumpers are preconfigured for the PPC-51xxA-G41/WIDS-51xA-G41. Users should no change these jumpers. Jumper Name Label Type...

  • Page 50: Com1 To Com5 Pin 9 Select

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-2: CF Card Setup Jumper Location 4.5.4 COM1 to COM5 Pin 9 Select Jumper Label: J_COM_V1, J_COM_V2, J_COM_V3, J_COM_V4 and J_COM_V5 Jumper Type: 6-pin header Jumper Settings: See Table 4-4 Jumper Location: See Figure 4-3 Four jumpers configure pin 9 on the COM1, COM2, COM3 COM4 and COM5 connectors. Pin 9 on these connectors can be set as either +5 V, +12 V or as the ring (RI) signal.

  • Page 51: Com5 Rs-232/422/485 Serial Port Select Jumper

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC The COM1 to COM5 Pin 9 Setting jumper locations are shown in Figure 4-3 below. Figure 4-3: COM1 to COM5 Pin 9 Setting Jumper Locations 4.5.5 COM5 RS-232/422/485 Serial Port Select Jumper Jumper Label: UART_SEL1 and UART_SEL2 12-pin header and 8-pin header Jumper Type: Jumper Settings:...

  • Page 52: Com 5 Rs-422 And Rs-485 Pinouts

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-4: COM5 RS-232/422/485 Serial Port Select Jumper Location 4.5.5.1 COM 5 RS-422 and RS-485 Pinouts The pinouts for RS-422 and RS-485 operation of external serial port COM 5 are detailed below. COM 5 RS-422 Description Pin 1 Pin 2 Pin 6 Pin 7...

  • Page 53: Drive Installation

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.6 Drive Installation The drive installation process is shown in the sections below. 4.6.1 Hard Drive Installation To install a HDD, please follow the steps below: Step 1: Remove the back cover (Section 4.4). Step 2: The HDD bracket is attached to the elevated platform by four retention screws. Remove the four retention screws from the elevated platform (Figure 4-5).

  • Page 54: Figure 4-6: Hdd Sata Connector

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-6: HDD SATA Connector Step 4: Attach the hard drive in the bracket. To do this, slide the hard drive onto the bracket until it connects with the SATA connector at the back. Fasten the four retention screws on the side.

  • Page 55: Compactflash Installation

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-8: HDD Retention Screws ® 4.6.2 CompactFlash Installation To install the CompactFlash® card, please follow the steps below: Step 1: Undo the CompactFlash® slot cover screw and remove the CompactFlash® cover plate. Figure 4-9: CompactFlash® Cover Plate Page 43...

  • Page 56: Cd Drive Installation

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 2: Insert the CompactFlash® card into the slot. Figure 4-10: CompactFlash® Slot Step 3: Fasten the CompactFlash® cover plate.Step 0: Figure 4-11: CompactFlash® Cover Plate 4.6.3 CD Drive Installation To install a CD drive, please follow the steps below. Step 1: Remove the back cover (Section 4.4).

  • Page 57: Figure 4-12: Cd Drive Adapter Installation

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 4: Insert two retention screws and secure the adapter to the CD drive (Figure 4-12). Figure 4-12: CD Drive Adapter Installation Step 5: Undo the optical drive bracket screws and remove the optical drive bracket. Figure 4-13: CD Drive Retention Screws Page 45...

  • Page 58: Figure 4-14: Optical Drive Blank Plate Assembly

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 6: Remove the four screws from the optical drive bracket assembly. Remove the blank drive plate. Figure 4-14: Optical Drive Blank Plate Assembly Page 46...

  • Page 59: Figure 4-15: Optical Drive Screws

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 7: Install the optical drive in the same position as the previously removed blank optical drive plate. Fasten the same four screws to attach the optical drive to the bracket. Figure 4-15: Optical Drive Screws Page 47...

  • Page 60: Figure 4-16: Optical Drive Sata Cable

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 8: Attach the SATA cable to the back of the optical drive and fasten the SATA cable screws. Figure 4-16: Optical Drive SATA Cable Step 9: Reinstall the optical drive bracket into the PPC-51xxA-G41/WIDS-51xA-G41 and fasten the optical bracket screws.Step 0: Figure 4-17: Optical Drive Bracket Screws Page 48...

  • Page 61: Pci Expansion Card Installation (Optional)

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.7 PCI Expansion Card Installation (Optional) To install a PCI expansion card, please do the following. Step 1: Remove the back panel. See Section 4.4. Step 2: Install the PCI riser card. Insert the PCI riser card into the PCI slot on the motherboard of the system.

  • Page 62: Figure 4-19: Expansion Slot Retention Screw

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-19: Expansion Slot Retention Screw Step 4: Insert the expansion card. Align the PCI expansion card edge connector with the PCI expansion slot on the PCI riser card. Gently insert the PCI card into the PCI expansion slot. Step 5: Secure the expansion card.

  • Page 63: Pcie Expansion Card Installation (Optional)

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.8 PCIe Expansion Card Installation (Optional) To install a PCI expansion card, please do the following. Step 1: Remove the back panel. See Section 4.4. Step 2: Install the PCIe riser card. Insert the PCIe riser card into the PCI slot and PCIe x4 slot on the motherboard of the system.

  • Page 64: Figure 4-22: Expansion Slot Retention Screw

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-22: Expansion Slot Retention Screw Step 4: Insert the expansion card. Align the PCIe expansion card edge connector with the PCIe expansion slot on the PCIe riser card. Gently insert the PCIe card into the PCIe expansion slot. Step 5: Secure the expansion card.

  • Page 65: At/Atx Mode Selection

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.9 AT/ATX Mode Selection AT and ATX power modes can both be used on the PPC-51xxA-G41/WIDS-51xA-G41 flat panel PC. The selection is made through an AT/ATX switch on the I/O interface panel. The switch is shown below. Figure 4-24: AT/ATX Power Switch Selection 4.10 Activating the Front USB Connectors (WIDS Series Only) A USB switch on the I/O panel of the WIDS-51xA-G41 activates the two USB connectors...

  • Page 66: Figure 4-25: Access The Front Usb Connectors

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-25: Access the Front USB Connectors Step 2: Activate the USB connectors. To activate the USB connectors, move the USB switch to the left. Figure 4-26: USB Switch Step 3: Check the USB connector status. When the USB switches are activated, a green LED next to the connectors turns on.Step 0: Page 54...

  • Page 67: Mounting The System

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-27: Green LED 4.11 Mounting the System WARNING! When mounting the PPC-51xxA-G41/WIDS-51xA-G41 flat panel PC onto an arm, wall or into a panel, it is advisable to have more than one person help with the installation to prevent accidental damage to the panel and avoid personal injury.

  • Page 68: Figure 4-28: Wall-Mounting Bracket

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 1: Select the location on the wall for the wall-mounting bracket. Step 2: Carefully mark the locations of the four bracket screw holes on the wall. Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention screws.

  • Page 69: Figure 4-29: Mount The Chassis

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC NOTE: In the diagram below the bracket is already installed on the wall. Figure 4-29: Mount the Chassis Step 9: Secure the panel PC with the wall-mounting kit. To do this, stick the protective cushion to the wall-mounting kit first. Then, put the wall-mounting kit on the top panel of the panel PC.

  • Page 70: Panel/ Mounting

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-30: Secure the Chassis 4.11.2 Panel/ Mounting To mount the PPC-51xxA-G41/WIDS-51xA-G41 flat panel PC into a panel, please follow the steps below. NOTE: The maximum panel thickness should be no more than 6 mm. Step 1: Select the position on the panel to mount the PPC-51xxA-G41/WIDS-51xA-G41.

  • Page 71: Figure 4-31: Ppc-5150A-G41 Panel Cutout Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-31: PPC-5150A-G41 Panel Cutout Dimensions Figure 4-32: PPC-5170A-G41 Panel Cutout Dimensions Page 59...

  • Page 72: Figure 4-33: Ppc-5190A-G41 Panel Cutout Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-33: PPC-5190A-G41 Panel Cutout Dimensions Figure 4-34: WIDS-515A-G41 Panel Cutout Dimensions Page 60...

  • Page 73: Figure 4-35: Wids-517A-G41 Panel Cutout Dimensions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-35: WIDS-517A-G41 Panel Cutout Dimensions Step 3: Slide the PPC-51xxA-G41/WIDS-51xA-G41 through the hole until the metal frame is flush against the panel. Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of the PPC-51xxA-G41/WIDS-51xA-G41, behind the metal frame (Figure 4-36).

  • Page 74: Figure 4-36: Panel Mounting Clamp Positions

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 4-36: Panel Mounting Clamp Positions Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic caps at the front of all the screws are firmly secured to the panel (Figure 4-37). Figure 4-37: Tighten the Panel Mounting Clamp Screws Page 62...

  • Page 75: Rack And Cabinet Installation

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 4.11.3 Rack and Cabinet Installation To mount the PPC-51xxA-G41/WIDS-51xA-G41 into a rack/cabinet, please follow the steps below. Step 1: Secure the rack mounting bracket to two sides of the monitor using the supplied retention screws (Figure 3-17). Each bracket requires four screws. Step 2: Secure the rack mounting bracket to the rack by inserting and tightening the supplied mounting nuts and bolts (Figure 3-17).

  • Page 76: Figure 4-38: Arm Mount Retention Screw Holes

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC PPC-51xxA-G41/WIDS-51xA-G41 flat panel PC arm mount retention screw holes are shown in Figure 3-18. Figure 4-38: Arm Mount Retention Screw Holes Step 4: Secure the PPC-51xxA-G41/WIDS-51xA-G41 to the interface pad by inserting four retention screws through the mounting arm interface pad and into the PPC-51xxA-G41/WIDS-51xA-G41 flat panel PC.

  • Page 77: Bios Setup

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Chapter BIOS Setup Page 65...
  • Page 78 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Page 66...

  • Page 79: Introduction

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 80: Getting Help

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Function F2 /F3 key Change color from total three colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 81: Main

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit System Overview ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 82: Advanced

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.

  • Page 83: Cpu Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ WARNING: Setting wrong values in below sections may cause system to malfunction > CPU Configuration > IDE Configuration Select Screen > SuperIO Configuration ↑ ↓ Select Item >...

  • Page 84: Ide Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Frequency: Lists the CPU processing speed FSB Speed: Lists the FSB speed Cache L1: Lists the CPU L1 cache size Cache L2: Lists the CPU L2 cache size 5.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system.
  • Page 85 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Enhanced Configures the on-board ATA/IDE controller to be in EFAULT Enhanced mode. In this mode, IDE channels and SATA channels are separated. This mode supports up to 6 storage devices. Some legacy OS do not support this mode.

  • Page 86: Ide Master, Ide Slave

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC The IDE Configuration menu (BIOS Menu 4) allows changes to the configurations for the IDE devices installed in the system. If an IDE device is detected and one of the above listed four BIOS configuration options are selected, the IDE configuration options shown in Section 5.3.2.1 appear.
  • Page 87 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Block Mode: Block mode boosts IDE drive performance by increasing the amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt.
  • Page 88 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB. Disabled BIOS is prevented from using the LBA mode control on the specified channel.

  • Page 89: Super Io Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC PIO mode 3 selected with a maximum transfer rate of 11.1 MB/s PIO mode 4 selected with a maximum transfer rate of 16.6 MB/s (This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.) DMA Mode [Auto] Use the DMA Mode BIOS selection to adjust the DMA mode options.

  • Page 90: Bios Menu 6: Super Io Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Super I/O Chipset ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Parallel Port Address [378] Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7] Serial Port1 Address [3F8/IRQ4] Serial Port1 Mode [Normal] Serial Port2 Address [2F8/IRQ3] Serial Port2 Mode [Normal]...
  • Page 91 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC The parallel port operates in the enhanced parallel port mode (EPP). The EPP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode.
  • Page 92 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Serial Port1 Mode [Normal] Use the Serial Port1 Mode option to select the transmitting and receiving mode for the first serial port. Normal Serial Port 1 mode is normal EFAULT Serial Port 1 mode is IrDA IrDA ASK IR Serial Port 1 mode is ASK IR Serial Port2 Address [2F8]...
  • Page 93 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Serial Port 3 I/O port address is 2F8 Serial Port 3 I/O port address is 3E8 EFAULT Serial Port 3 I/O port address is 2E8 Serial Port 3 I/O port address is 2E0 Serial Port3 IRQ [IRQ11] Use the Serial Port3 IRQ option to select the Serial Port 3 interrupt address.
  • Page 94 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Disabled No base address is assigned to Serial Port 5 Serial Port 5 I/O port address is 3E8 Serial Port 5 I/O port address is 2E8 Serial Port 5 I/O port address is 2E0 Serial Port 5 I/O port address is 2D8 Serial Port 5 I/O port address is 2D0 EFAULT Serial Port5 IRQ [IRQ11]...

  • Page 95: Hardware Health Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.3.4 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan speeds and system voltages. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hardware Health Event Monitoring ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ SYS_FAN1 Mode Setting [Full On Mode] SYS_FAN2 Mode Setting [Full On Mode]...
  • Page 96 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC PWM Manual mode The fan spins at the speed set in: Fan PWM control Temp. Limit of OFF [000] WARNING: CPU failure can result if this value is set too high The fan will turn off if the temperature falls below this value. Minimum Value: 0°C Maximum Value: 127°C Temp.
  • Page 97 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 0 PWM 1 PWM 2 PWM 4 PWM 8 PWM 16 PWM 32 PWM 64 PWM CPU Fan PWM Control [070] This value specifies the speed of the fan. PWM Minimum Mode: 0 PWM Maximum Mode: 127 Hardware Health Monitoring The following system parameters and values are shown.

  • Page 98: Power Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5V Dual VBAT 5.3.5 Power Configuration Use the Power Configuration menu (BIOS Menu 9) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit >...

  • Page 99: Acpi Settings

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.3.5.1 ACPI Settings Use the General ACPI Settings menu (BIOS Menu 9) to select the ACPI state when the system is suspended. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit ACPI Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Suspend mode [S1 (POS)] Select Screen ↑...

  • Page 100: Bios Menu 10: Apm Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit APM Configuration Power Off ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Power On Last State Restore on AC Power Loss [Last State] Advanced Resume Event Controls Resume on Keyboard/Mouse [Disabled] Resume On Ring [Disabled] Resume on PCI RME# [Disabled]...
  • Page 101 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Resume Wake event generated by activity on the mouse Mouse Wake event generated by activity on the keyboard or Enabled mouse Resume on Ring [Disabled] Use the Resume on Ring BIOS option to enable activity on the RI (ring in) modem line to rouse the system from a suspend or standby state.

  • Page 102: Remote Access Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Disabled The real time clock (RTC) cannot generate a wake EFAULT event If selected, the following appears with values that Enabled can be selected: RTC Alarm Date (Days) System Time After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.
  • Page 103 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Disabled Remote access is disabled. EFAULT Remote access configuration options shown below Enabled appear: Serial Port Number Serial Port Mode Redirection after BIOS POST Terminal Type These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option to select the serial port used for remote access. COM1 System is remotely accessed through COM1 EFAULT...
  • Page 104 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 57600 8,n,1 38400 8,n,1 19200 8,n,1 09600 8,n,1 NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.

  • Page 105: Usb Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.3.7 USB Configuration Use the USB Configuration menu (BIOS Menu 12) to read USB configuration information and configure the USB settings. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit USB Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Module Version – 2.24.3-13.4 USB Devices Enabled: None Select Screen...
  • Page 106 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC USB 2.0 Controller [Enabled] Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller USB 2.0 controller enabled Enabled EFAULT Disabled USB 2.0 controller disabled Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.

  • Page 107: Pci/Pnp

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.4 PCI/PnP Use the PCI/PnP menu (BIOS Menu 13) to configure advanced PCI and PnP settings. WARNING! Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunction. BIOS SETUP UTILITY Main Advanced PCIPNP...
  • Page 108 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Available The specified IRQ is available to be used by EFAULT PCI/PnP devices The specified IRQ is reserved for use by Legacy ISA Reserved devices Available IRQ addresses are: IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available]...

  • Page 109: Boot

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Reserved Memory Size [Disabled] Use the Reserved Memory Size BIOS option to specify the amount of memory that should be reserved for legacy ISA devices. Disabled No memory block reserved for legacy ISA devices EFAULT 16 KB reserved for legacy ISA devices 32 KB reserved for legacy ISA devices 54 KB reserved for legacy ISA devices 5.5 Boot...

  • Page 110: Boot Settings Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 15) to configure advanced system boot options. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Boot Settings Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Quick Boot [Enabled] Quiet Boot [Enabled] AddOn ROM Display Mode [Force BIOS]...
  • Page 111 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. Force BIOS The system forces third party BIOS to display EFAULT during system boot. The system displays normal information during Keep Current system boot.

  • Page 112: Security

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.6 Security Use the Security menu (BIOS Menu 16) to set system and user passwords. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Security Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Supervisor Password :Not Installed User Password :Not Installed Change Supervisor Password Change User Password Select Screen ↑...

  • Page 113: Chipset

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.7 Chipset Use the Chipset menu (BIOS Menu 17) to access the Northbridge and Southbridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. BIOS SETUP UTILITY Main Advanced...

  • Page 114: North Bridge Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 5.7.1 North Bridge Configuration Use the North Bridge Chipset Configuration menu (BIOS Menu 18) to configure the Northbridge chipset. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit North Bridge Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Memory Remap Feature [Enabled] PCI MMIO Allocation: 4GB To 3072MB Memory Hole [Disabled]...

  • Page 115: Video Function Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 15 MB–16 MB Between 15 MB and 16 MB of memory is reserved for ISA expansion cards Initiate Graphic Adapter Use the Initiate Graphic Adapter option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of PCI graphics controller, a PCI express (PEG) controller or an IGD.

  • Page 116: South Bridge Configuration

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Video Function Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Boot Display Device [Auto] Flat Panel Type [1024x768 18bits] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

  • Page 117: Exit

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Audio Controller [Auto] Use the Audio Controller option to enable the audio controller. Audio controller automatically detected and enabled Auto EFAULT Disabled Audio controller disabled Spread Spectrum [Disabled] Use the Spread Spectrum option to reduce the EMI. Excess EMI is generated when the system clock generator pulses have extreme values.
  • Page 118 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program. Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system.

  • Page 119: System Maintenance

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Chapter System Maintenance Page 107...

  • Page 120: System Maintenance Introduction

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 6.1 System Maintenance Introduction The following system components may require maintenance. Motherboard DIMM module PSU module Cooling fans If these components fail, they must be replaced. Please contact the system reseller or vendor to purchase replacement parts. Replacement instructions for the above listed components are described below.

  • Page 121: Dimm Replacement

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC WARNING! Please take antistatic precautions when working with the internal components. The interior of the PPC-51xxA-G41/WIDS-51xA-G41 contains very sensitive electronic components. These components are easily damaged by electrostatic discharge (ESD). Before working with the internal components, make sure all anti-static precautions described earlier have been observed.

  • Page 122: Elevated Platform Removal

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure 6-1: DIMM Socket Clip Locations Step 3: Push the new DIMM module until it engages and the white plastic end clips click into place. Make sure the end clips are fully secured after installation. Step 0: 6.5 Elevated Platform Removal The elevated platform supports the optical drive and the hard drive.

  • Page 123: Figure 6-3: Side Panel Elevated Platform Screws

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 2: Unfasten the elevated platform screws on the side panel (Figure 6-3). Figure 6-3: Side Panel Elevated Platform Screws Step 3: Unfasten the elevated platform screws on the bottom panel (Figure 6-4). Figure 6-4: Bottom Panel Elevated Platform Screws Page 111...

  • Page 124: Psu Module Replacement

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 4: Unfasten the internal elevated platform screws (Figure 6-5). Figure 6-5: Internal Elevated Platform Screws Step 5: Slide the elevated platform out of the chassis. Step 0: 6.6 PSU Module Replacement Please read the warnings at the beginning of Section 4.3 before attempting to access any PPC-51xxA-G41/WIDS-51xA-G41 internal components.

  • Page 125: Figure 6-6: Psu Power Cables

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 3: Disconnect all PSU connections including those to the motherboard (Figure 6-6) and any disk drives. Figure 6-6: PSU Power Cables Step 4: Unfasten the screws on the inside panel (Figure 6-7). Figure 6-7: PSU Bottom Panel Retention Screws Page 113...

  • Page 126: Install The New Psu

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 5: Remove the retention screws that connect the PSU bracket to the chassis (Figure 6-8). Figure 6-8: PSU Rear Panel Screws Step 6: Remove the retention screws that connect the PSU to the PSU bracket.Step 0: 6.6.2 Install the New PSU Installation is done in the reverse order to removal.

  • Page 127: System Cooling Fan Replacement

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 6.7 System Cooling Fan Replacement If the system cooling fans have been damaged, they must be replaced. To replace the system cooling fans, please follow the steps below. 6.7.1 Remove the Old System Cooling Fans Step 1: Remove the back cover (Section 4.4).

  • Page 128: Install The New System Cooling Fans

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Step 4: Remove the system cooling fans retention screws from the left panel (Figure 6-10). Figure 6-10: System Cooling Fans Left Panel Retention Screws Step 5: Remove the system cooling fans from the chassis. Step 0: 6.7.2 Install the New System Cooling Fans To install the new system cooling fans, please follow the steps below.

  • Page 129: Abios Options

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Appendix BIOS Options Page 117...
  • Page 130 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Below is a list of BIOS configuration options in the BIOS chapter. 　 System Overview .........................69 　 System Time [xx:xx:xx] .......................70 　 System Date [xx/xx/xx] ......................70 　 ATA/IDE Configurations [Compatible]................72 　 Configure SATA as [IDE].....................73 　 Configure SATA Channels [Before PATA] ................73 　...
  • Page 131 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 　 Start PWM [070]........................84 　 Slope PWM [1 PWM] ......................84 　 CPU Fan PWM Control [070] ....................85 　 Hardware Health Monitoring ....................85 　 Suspend Mode [S1(POS)]....................87 　 Restore on AC Power Loss [Last State] ................88 　 Resume on Keyboard/Mouse [Disabled] ................88 　...
  • Page 132 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 　 Initiate Graphic Adapter ....................103 　 IGD Graphics Mode Select [Enable, 32 MB] ..............103 　 Audio Controller [Auto] ....................105 　 Spread Spectrum [Disabled].................... 105 　 Save Changes and Exit ....................106 　 Discard Changes and Exit....................106 　...

  • Page 133: B Terminology

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Appendix Terminology Page 121...
  • Page 134 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 135 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 136 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 137: C Digital I/O Interface

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Appendix Digital I/O Interface Page 125...

  • Page 138: Introduction

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC C.1 Introduction The DIO connector on the PPC-51xxA-G41/WIDS-51xA-G41 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 139: Assembly Language Samples

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input AX, 6F08H Initiates the INT 15H BIOS call C.3.2 Enable the DIO Output Function...

  • Page 140: D Watchdog Timer

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Appendix Watchdog Timer Page 128...
  • Page 141 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 142 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 143: E Address Mapping

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Appendix Address Mapping Page 131...

  • Page 144: Direct Memory Access (Dma)

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC E.1 Direct Memory Access (DMA) Figure E-1: Direct Memory Access (DMA) Page 132...

  • Page 145: Input/Output (Io)

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC E.2 Input/Output (IO) Figure E-2: Input/Output (IO) (1 of 2) Page 133...
  • Page 146 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Figure E-3: Input/Output (IO) (2 of 2) Page 134...

  • Page 147: Interrupt Request (Irq)

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC E.3 Interrupt Request (IRQ) Figure E-4: Interrupt Request (IRQ) Page 135...

  • Page 148: Memory

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC E.4 Memory Figure E-5: Memory Page 136...

  • Page 149: F Hazardous Materials Disclosure

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Appendix Hazardous Materials Disclosure Page 137...

  • Page 150: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    PPC-51xxA-G41/WIDS-51xA-G41 Panel PC F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 151 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery This toxic or hazardous substance is contained in all of the homogeneous materials for the part is...
  • Page 152 PPC-51xxA-G41/WIDS-51xA-G41 Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 Page 140...
