2. Serial Protocols

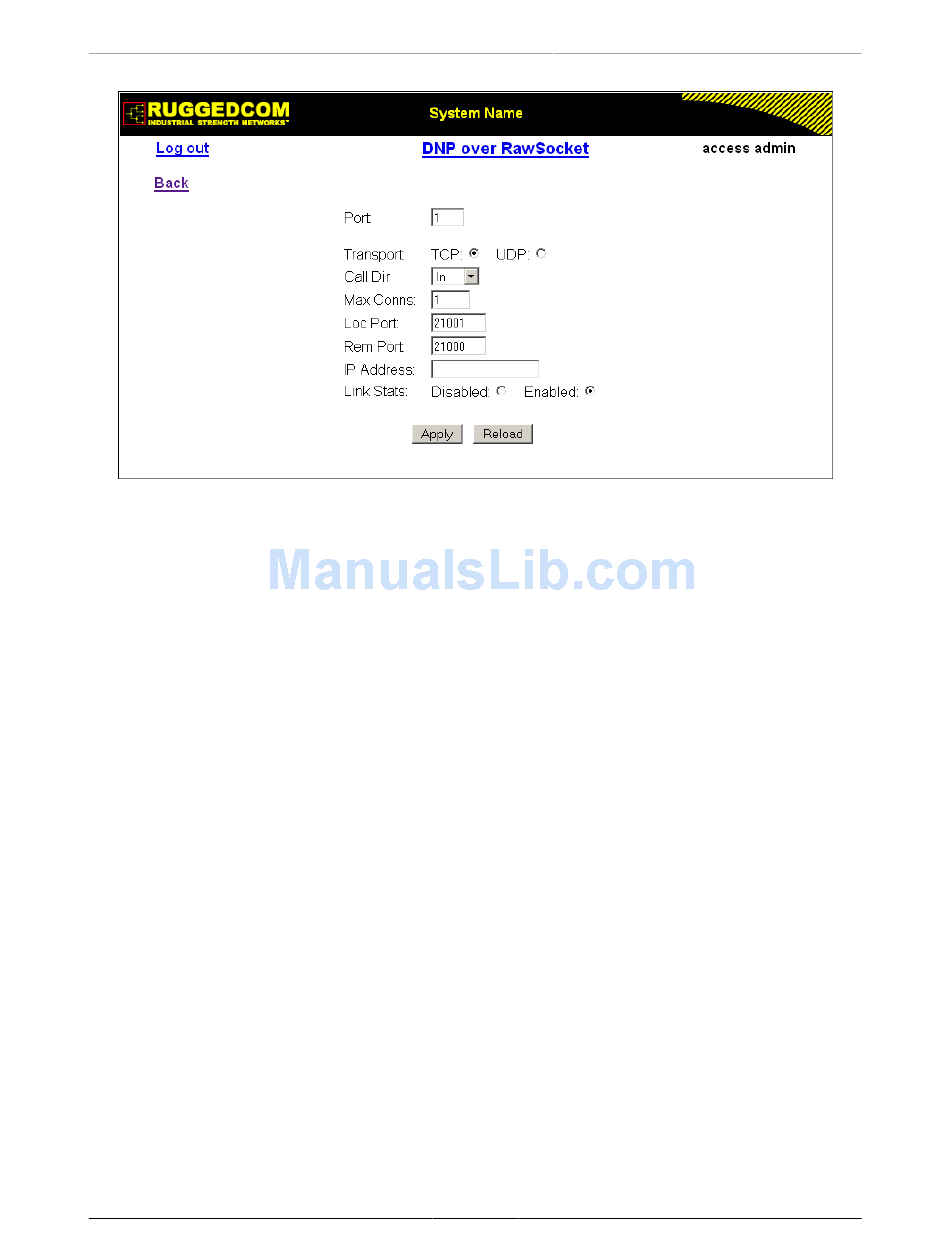

Figure 2.25. DNP over Raw Socket Form
Port
Synopsis: 1 to 4
Default: 1
The port number as seen on the front plate silkscreen on the switch.
Transport
Synopsis: { TCP, UDP }
Default: TCP
The network transport used to transport protocol data over the IP network.
Call Dir
Synopsis: { In, Out, Both }
Default: In
The Call direction for TCP Tranport.
• In: accepts an incoming connection.
• Out: places an outgoing connection.
• Both: places an outgoing connection and waits for as incomming connection (both
directions).
Max Conns
Synopsis: 1 to 64
Default: 1
The maximum number of allowed incoming TCP connections.
Loc Port
Synopsis: 1 to 65535
Default: 21001
The local IP port to use when listening for an incoming connection or UDP data.
ROS® v3.11User Guide 72 RMC30
