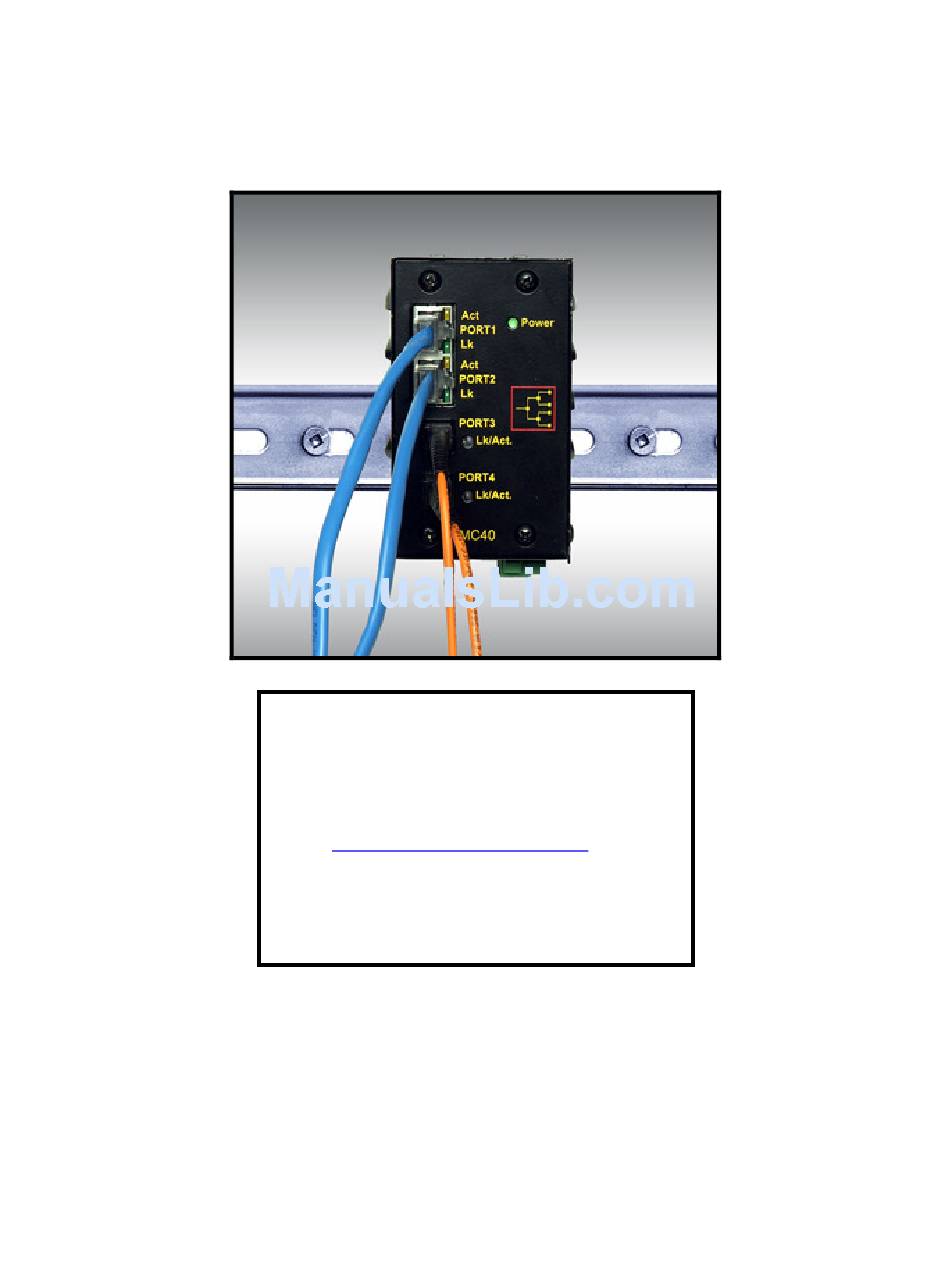

- Page 1 Rugged Rugged Rugged Rugged ™ ™ ™ ™ RMC40 RMC40 RMC40 RMC40 Installation Guide RuggedCom Inc. 30 Whitmore Road Woodbridge, Ontario Canada L4L 7Z4 Web: http://www.ruggedcom.com/ Tel: (905) 856-5288 Fax: (905) 856-1995 Toll Free: (888) 264-0006...
- Page 2 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference on his own expense. Warning: Changes or modifications not expressly approved by RuggedCom Inc. could void the user’s authority to operate the equipment.
-
Page 3: Table Of Contents
Twisted-Pair Port Specifications ................... 11 Fiber Optical Port Specifications................... 12 Networking Standards Supported ................. 12 Operational Specifications .................... 13 Mechanical Specifications .................... 14 Type Test Specifications ....................... 15 Operating Environment....................16 Agency Approvals......................16 Warranty..........................16 © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 4: Product Overview
2 - 100BaseFX (100Mbps) MTRJ (multimode) or LC (single-mode) style transceivers Full-Duplex operation on all ports (no collisions) Non-blocking, low latency switching with IEEE 802.3x flow-control protocol results in high- speed reliable communications. © 2006 RuggedCom Inc. All rights reserved Rev101... -

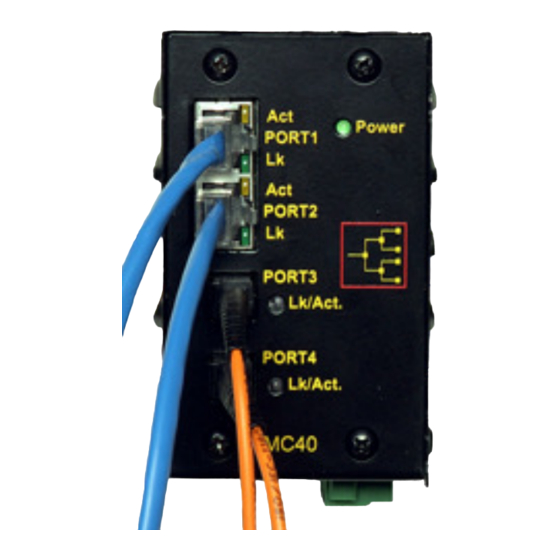

Page 5: Ruggedmc Tm Front Panel Description
RJ45: Lk/Act Blinking (Yellow) Tx, Rx Activity Solid (Yellow) 100Mbps Operation RJ45: 100 10Mbps Operation Solid (Yellow) Link Established Fiber: Lk/Act Blinking (Yellow) Tx, Rx Activity Power LED Solid (Green) Power On © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 6: Ruggedmc Tm Side And Bottom View
1.4 RuggedMC Side and Bottom View Fig. 1.4.1 RuggedMC Side and Bottom View © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 7: Installation
2 Installation 2.1 DIN Rail Mounting Fig. 2.1.1 RuggedMC DIN Rail Mounting © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 8: Panel Mounting
Figure 2.2.1: RuggedMC panel mounted using optional panel mount mounting adapter. © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 9: Power Supply Wiring And Grounding
3. A circuit breaker is not required for 48 or 24VDC rated equipment. 4. For multiple supplies, separate circuit breakers must be installed. Equipment must be installed according to the applicable country wiring codes. © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 10: Rj45 Ports - Signal Description
RMC40 and its link partners. In general, RuggedCom strongly recommends limiting connections used by the RJ45 ports to those that are less than 3m in length, or limited to environments sufficiently protected from such transients. -
Page 11: Specifications
Parameter Specification Notes Speed 10/100 Mbps Auto-negotiating Duplex FDX / HDX Auto-negotiating Cable-Type > Category 5 Shielded/Unshielded Wiring Standard TIA/EIA T568A/B Auto-Crossover, Auto-polarity Max Distance 100m Connector RJ45 Isolation 1.5kV RMS 1-minute © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 12: Fiber Optical Port Specifications
Notes: 1. Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. 2. To convert from average to peak add 3 dBm. To convert from peak to average, subtract 3 dBm. -
Page 13: Operational Specifications
3.5 Operational Specifications Parameter Specification Notes Conversion Type Cut-Through High-speed, non-blocking Mac Address Table Length 2048 Frame Buffer Memory 1Mbit © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 14: Mechanical Specifications
3.6 Mechanical Specifications Parameter Value Comments 4.30 x 2.40 x 3.30 inches (Length x Width x Height) Dimensions (110) x (61) x (84) mm Weight 1.5 lb (0,68 Kg) Enclosure 18 gauge Galvanized Steel © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 15: Type Test Specifications
Temperature (Dry Cold) -40°C Test Ad: 16 hrs @ -40°C IEC 60068-2-2 Temperature (Dry Heat) 85°C Test Bd: 16 hrs @ 85°C IEC 60068-2-30 Humidity Test Db: 6 cycles, 55°C, 95% Non-condensing Humidity © 2006 RuggedCom Inc. All rights reserved Rev101... -
Page 16: Operating Environment
IEC/EN Compliant A2:2001 5 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com/ or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
