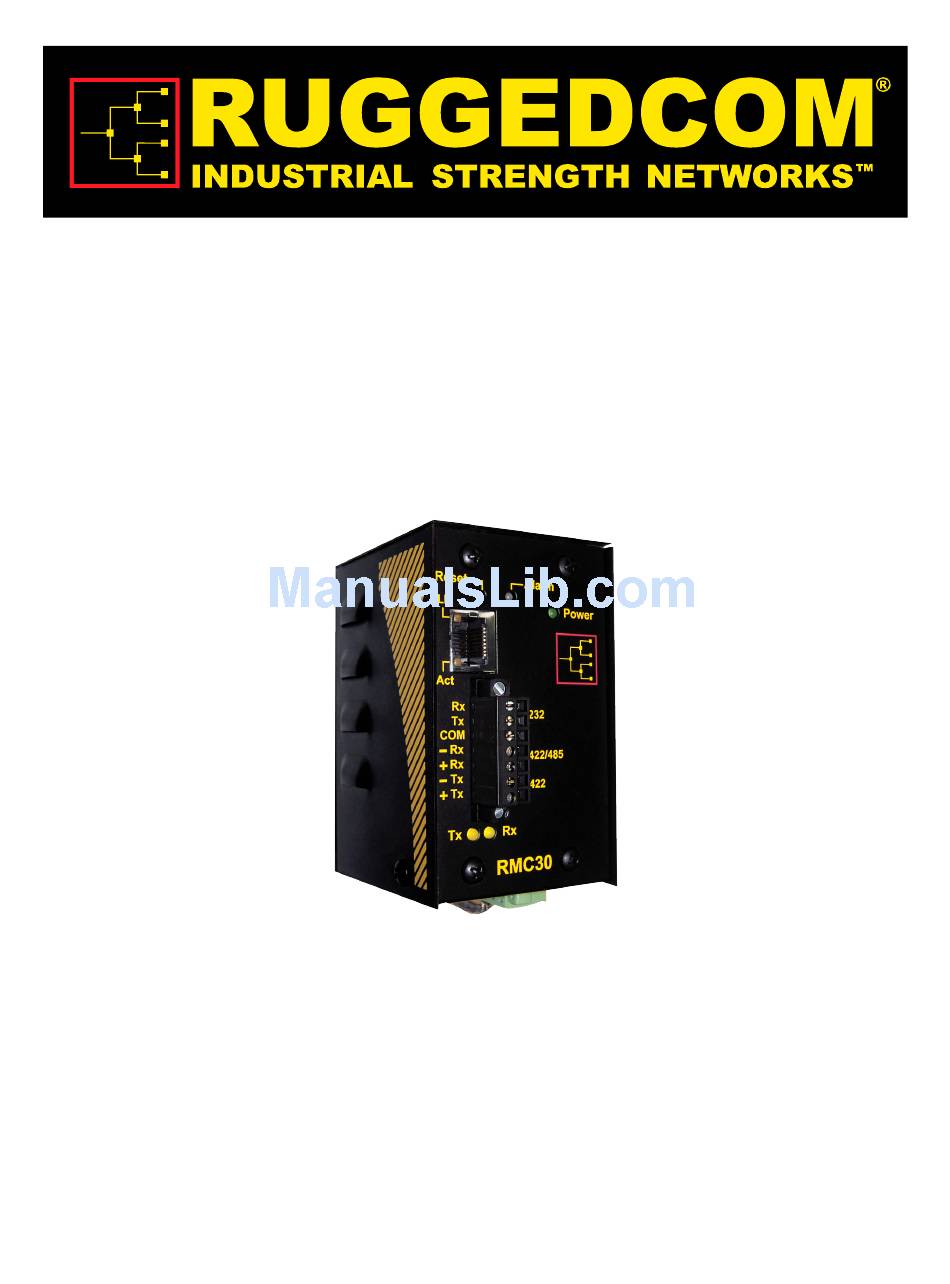

- Page 1 RuggedMC™ RMC30 Hardware Installation Guide Revision 106 - November 1, 2012 www.RuggedCom.com...
- Page 2 We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot be completely ruled out. RuggedCom shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
3.4. Type Test Specifications ................... 20 3.4.1. IEC 61850-3 Type Tests ................20 3.4.2. IEEE 1613 Type Tests ................... 21 3.4.3. IEC Environmental Type Tests ..............22 3.5. Agency Approvals ..................... 22 A. Warranty ..........................23 RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... - Page 4 2.3. Power Supply Wiring and Grounding ................12 2.4. Serial RS232, RS485, and RS422 terminal block connections ......... 14 2.5. RS232 DB9 Cable Wiring ....................15 2.6. Conceptual RS485 Wiring Diagram .................. 16 3.1. Mechanical Dimensions ....................19 RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106...
- Page 5 3.2. Mechanical Specifications ....................19 3.3. Operating Environment ..................... 20 3.4. IEC 61850-3 Type Tests ....................20 3.5. IEEE 1613 Type Tests ..................... 21 3.6. IEC Environmental Type Tests ..................22 3.7. Agency Approvals ......................22 RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106...
-
Page 6: Fcc Statement And Cautions
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could invalidate specifications, test results, and agency approvals, and void the user’s authority to operate the equipment. -
Page 7: Product Overview
• Screw down terminal blocks ensure reliable maintenance free connections • CSA/UL 60950 safety approved to +85°C Designed for Harsh Environments • Exceeds IEC 61850-3 requirements for electric power substations • Exceeds IEC 61000-6-2 for industrial environments RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... - Page 8 • Rich set of diagnostics with logging and alarms • Ethernet and Serial LED indicators aid in field troubleshooting • Flash memory for easy upgrades • System watchdog with automatic reset • Built in real time clock and SNTP time synchronization RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106...
-
Page 9: Rmc30 Front Panel Description
Solid (Yellow) Ethernet link established. Blinking (Yellow) Transmitting/receiving Ethernet data. Blinking (Yellow) Transmitting serial data Blinking (Yellow) Receiving serial data The Tx/Rx LEDs blink for either RS232 and RS422/485 data. Table 1.1. RMC30 LED Definitions RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 10: Rmc30 Side And Bottom Views
1. Product Overview 1.2. RMC30 Side and Bottom Views Figure 1.2. RMC30 Side and Bottom Views RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 11: Installation
The panel mount adapter can be secured to a panel with three screws. The RuggedMC product is easily mounted onto the panel mount adapter via the two metal clips on either side of the unit, and a single screw located on the bottom. RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 12: Power Supply Wiring And Grounding
2. Installation Figure 2.2. Panel Mounting 2.3. Power Supply Wiring and Grounding Figure 2.3. Power Supply Wiring and Grounding The RuggedMC power supply inputs are identical and are connected as follows: RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 13: Serial Ports - Signal Description
The RMC30 is equipped with a seven-terminal Phoenix-style connector. This connector can accommodate one RS232 connection, and one RS485/422 connection. Drawing 6 shows the connections for RS232, RS485, and RS422 communications. The following sections describe installation details for respective ports. RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 14: Rs232 Data Port
To activate console configuration mode, press and hold <CTRL>Z for approximately 10 seconds during power up. To deactivate console mode, reset the RMC30. RMC30 Connector DB9 Connector Pin:Signal RS232:Tx 2:RD (Receive Data) RS232:Rx 3:TD (Transmit Data) 5:SGND (Singnal Ground) Table 2.1. RS232 DB9 Pinouts RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 15: Rs422 And Rs485 Data Ports
Transient protection is provided on all RMC30 terminals. Lightning strikes and ground surge currents can cause large momentary voltage differences between ends of communication links. To ensure maximum reliability of the entire link, all equipment should have similar transient protection installed. RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 16: Rmc30 Quick Start Recommendations
(Administration, Configure IP Services, Configure Passwords). See Chapter 1 for more details. 6. The serial ports may be configured to support Serial encapsulation or TcpModbus, placing connections to or accepting connections from a remote host. See Chapter 2 for more details RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... - Page 17 (Administration, IP Services). If remote SNMP management or traps are desired, configure the appropriate manage station (Administration, Configure SNMP Management Stations). 8. Further concerns such as fine-tuning serial port parameters, measuring and optimizing performance are dealt with by reading the guide fully. RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106...
-
Page 18: Specifications
HI (88/300 VDC) 88 VDC 300 VDC 3.15A(T) HI (120/240 VAC) 85 VAC 264 VAC (T) Denotes time-delay fuse This is the same power supply for both AC and DC. Table 3.1. Power Supply Specifications RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 19: Mechanical Specifications
Value Comments 4.30 × 2.40 × 3.30 inches Dimensions (Length × Width × Height) (110) × (61) × (84) mm Weight 1.5 lb (0.68 Kg) Enclosure 18 gauge Galvanized Steel Table 3.2. Mechanical Specifications RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 20: Operating Environment
Damped Oscillatory D.C. Power ports diff. mode@1MHz 2.5kV common, 1kV A.C. Power ports diff. mode@1MHz 30V Continuous, Signal ports 300V for 1s Mains Frequency IEC 61000-4-16 Voltage 30V Continuous, D.C. Power ports 300V for 1s RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 21: Ieee 1613 Type Tests
Signal ports Relay output) IEEE C37.90 H.V. Impulse D.C. Power ports A.C. Power ports Signal ports 2kVac IEEE C37.90 Dielectric Strength D.C. Power ports 1.5kVdc A.C. Power ports 2kVac Table 3.5. IEEE 1613 Type Tests RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 22: Iec Environmental Type Tests
UL 60950, EN 60950 Approved EN 61000-6-2 FCC Part 15, Class A Approved CISPR EN55022, Class A Approved FDA/CDRH 21 CFR Chapter 1, Subchapter J Compliant IEC/EN EN60825-1:1994 + A11:1996 + A2:2001 Compliant Table 3.7. Agency Approvals RuggedCom® RuggedMC™ RMC30 Installation Guide Rev106... -
Page 23: Warranty
Appendix A. Warranty Appendix A. Warranty RuggedCom warrants this product for a period of five (5) years from the date of purchase. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. For warranty details, visit www.RuggedCom.com...
