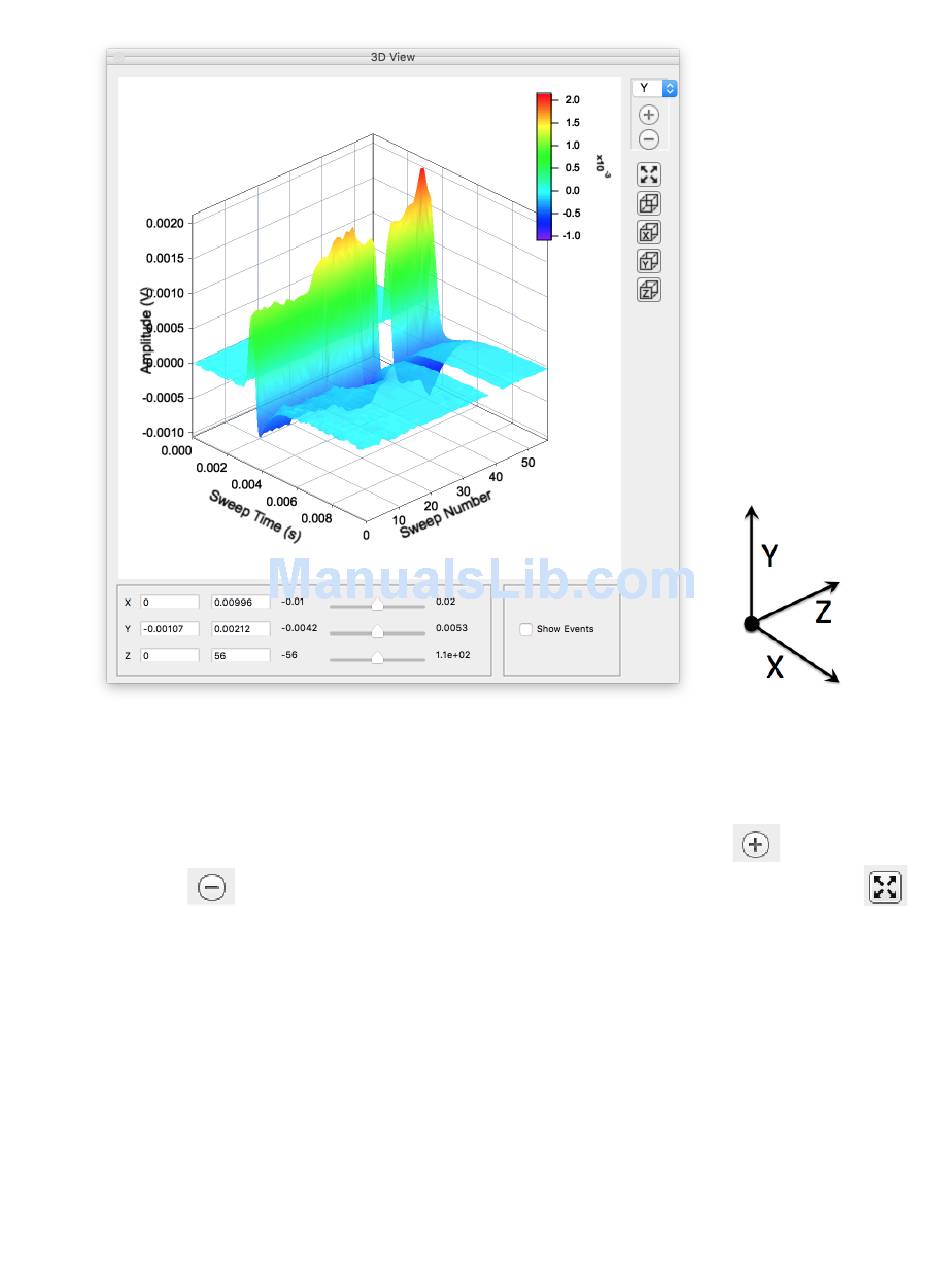

Figure 4-11. 3D View and axis definition.
1. A "heat map" bar illustrates the color measurement units.
2. Magnification buttons are located in the upper right corner of the window. A selection button
allows X, Y, Z or "All" views to be selected for magnification. The Zoom In
(magnify) and
Zoom Out
(unmagnified) buttons are located below, as well as the Autoscale button
which resets all zoomed axes to the initial (default) magnification.
