Select signal display mode
Signal pane arrangements are available via the 'Select signal display mode' button in
the lower left corner of the Scope window:
• Single pane (applies to the active pane)
• Vertically stacked panes
• Tiled configurations: [m x n]
INTEGRATED PATCH AMPLIFIER OPERATION - M

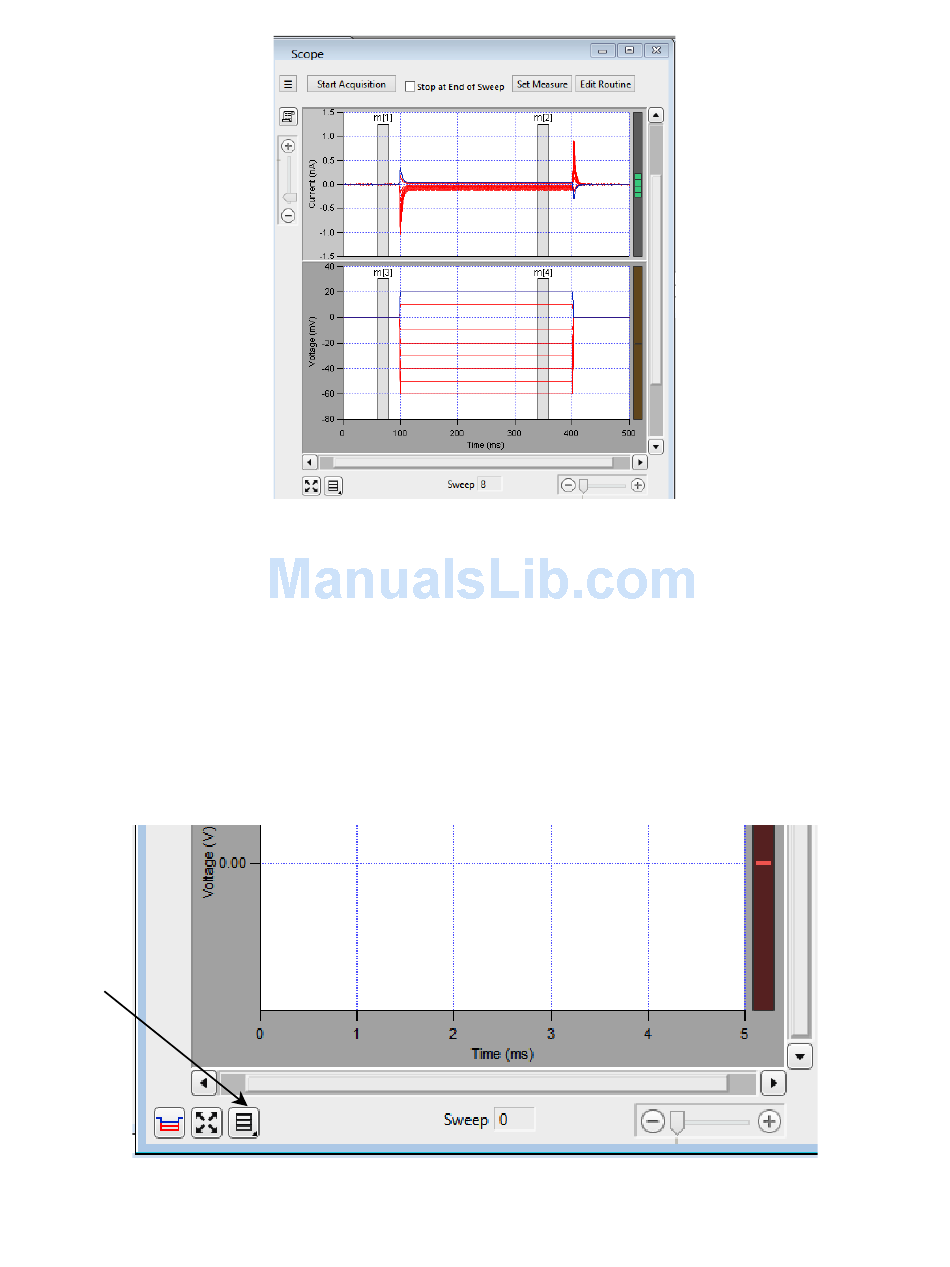

Figure 4-3 Signals
Figure 4-4. Signal Display Mode
ANUAL
– R
. 1.0.6 (20160729)
EV
29
