The magnification box can be used as an alternate method of scrolling through the signal's data.
When the mouse cursor is placed over the magnification box, it changes into a 'hand' icon, which can
then be used to click and drag the magnification box throughout the navigation pane, in both the X
and Y directions. As the magnification box is moved in the navigation pane, the active signal's data is
scrolled to match its view.
Persistence Display
Autoscale
Signal Display
Sweeps Display

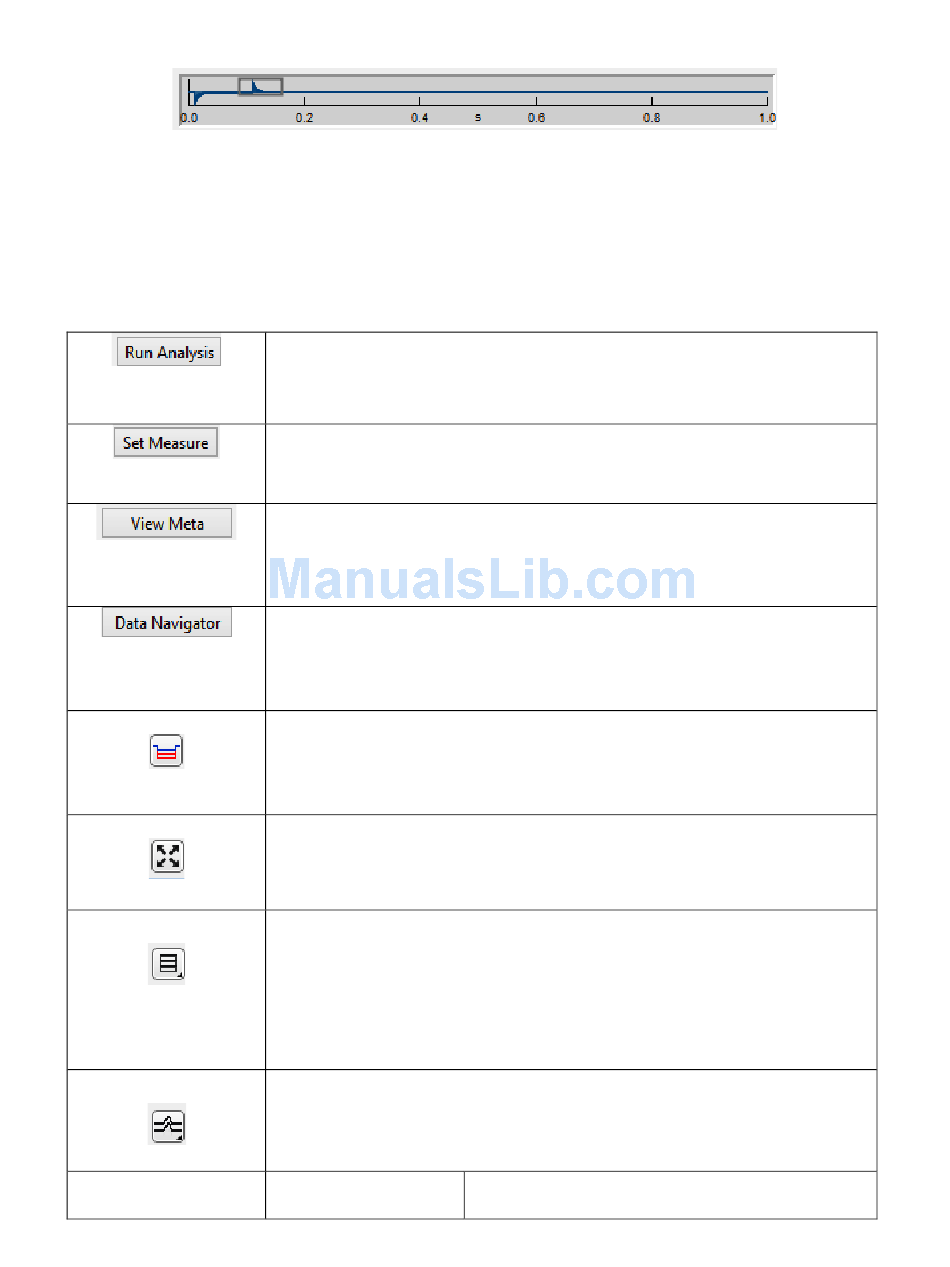

Figure 4-10. Navigation Pane.

The button re-runs previously defined analyses for the data series,
and graphs the results in the Analysis window.
Operates as previously described for the Scope window.
Displays any extra information (metadata) associated with the cur-
rent data Series, such as the operator, preparation details, solution
information, etc.
Opens a Data Navigator window. All of your experiment's data and
metadata are available in a tree structure, such as Routine Series
data and Paradigm data.
In persistence display mode, recorded sweeps are kept on display un-
til another acquisition is started. Otherwise prior sweeps are cleared
from the Scope window whenever a new sweep is recorded.
Rescale the X and Y axes so that all data is visible within 90% of the
Y-axis and 100% of the X axis.
Select how input signals are graphically arranged.
Stack: a vertical column of signals
Single: just show the active signal
m x n: tiled configurations of signals
The 'Select sweeps display mode' button has 3 states
Sweeps
INTEGRATED PATCH AMPLIFIER OPERATION - M
Each trace is displayed as starting at time
zero, and overlaid for the duration of the ac-
