I/O Parameters

I/O Parameters

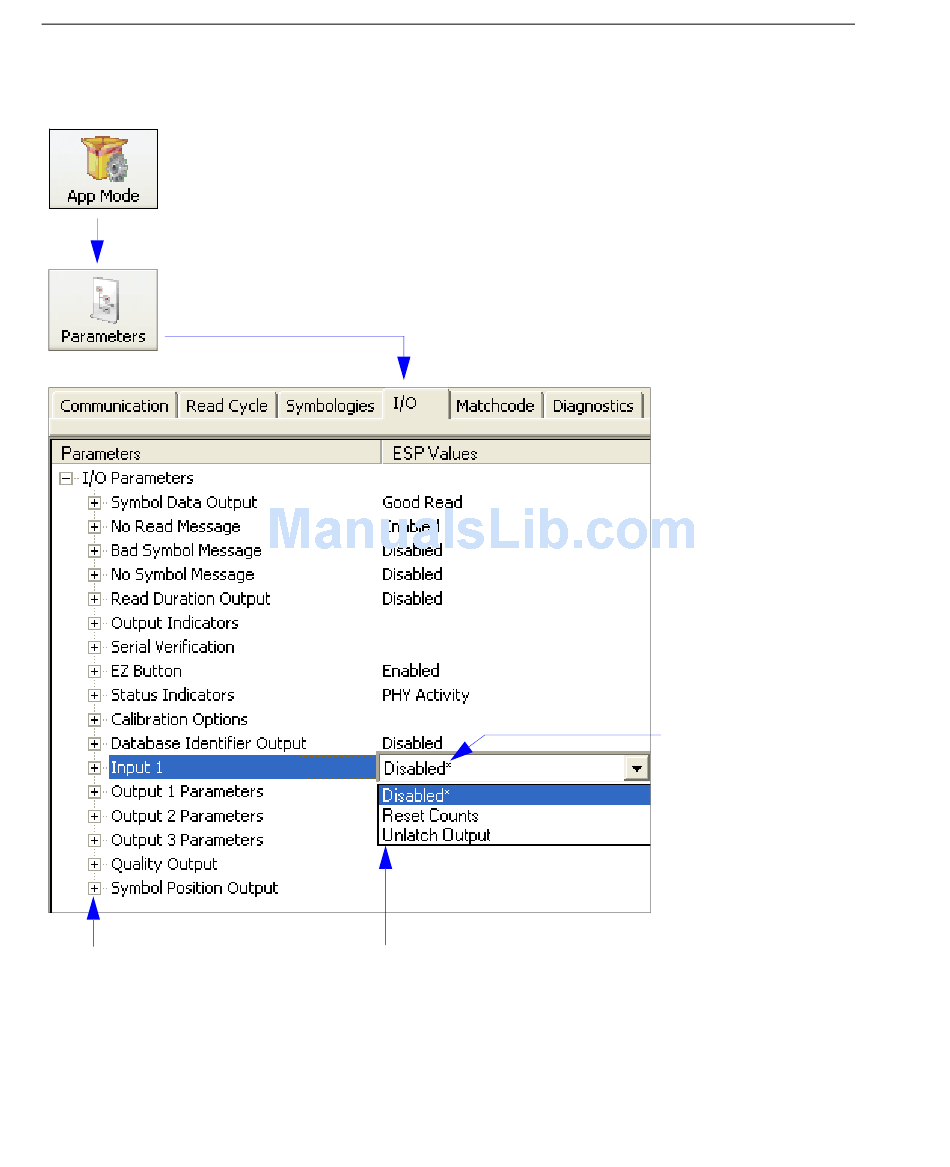

Click the App Mode button and then the Parameters button to display
the tree control tabs.
Then click the I/O tab to display the I/O Parameters tree control.
To open nested options,
single-click the +.
Note: I/O Parameters settings can also be sent to the scanner from ESP's Terminal using
Microscan's K command format. Refer to the
5-106
To change a setting, double-click the
setting and use the cursor to scroll
through the options.
I/O Parameters
QX-870 Industrial Raster Scanner User Manual
*
The indicates
that the setting
is the default.
section of Appendix E.
