Appendix D — Flying Lead Cordset Pinouts

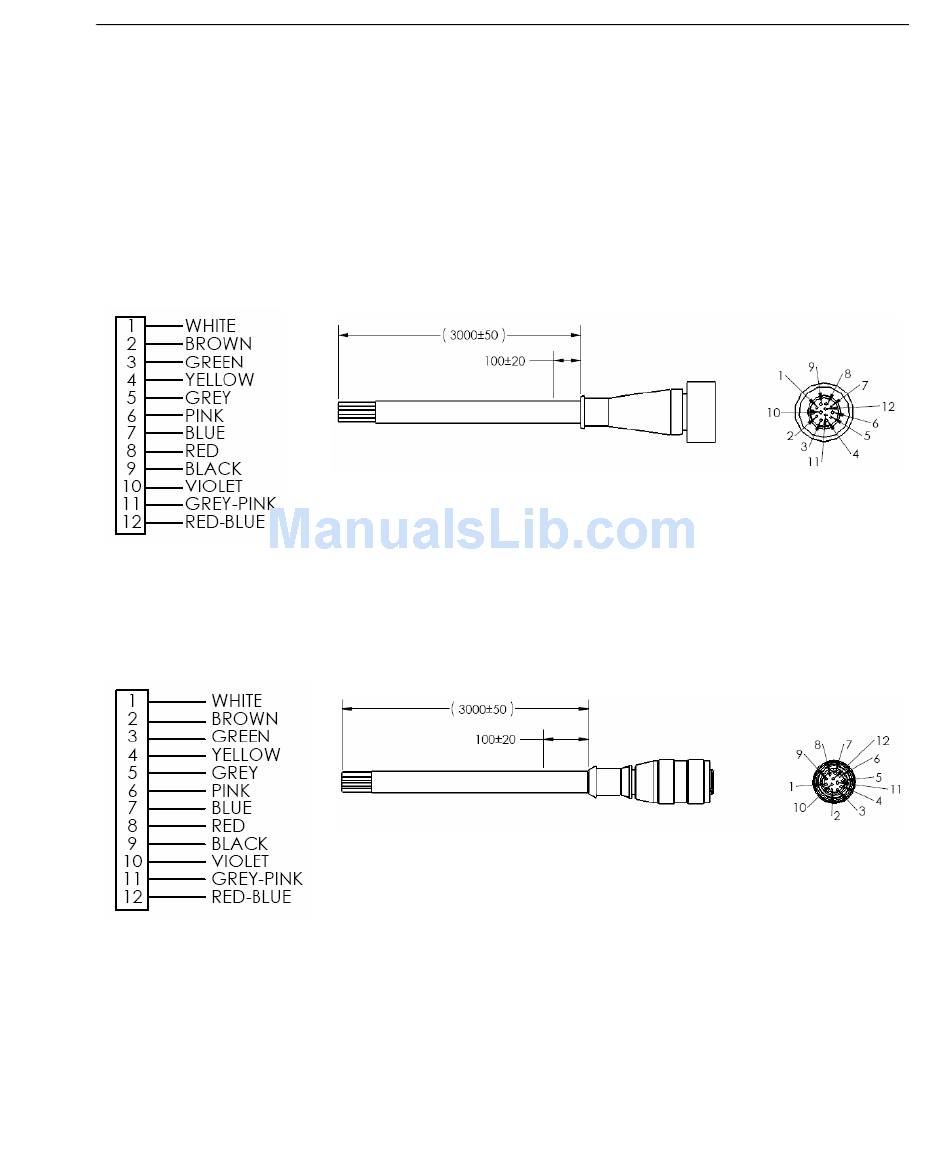

Microscan offers two flying leads cordsets—61-000166-02 and 61-000167-02—for use in
QX hardware configurations. The diagrams below show the correspondence of wire colors
to pins.
61-000166-02 — QX Cordset, M12 12-Pin Plug, Flying Leads
The 61-000166-02 cordset connects to QX-870 Connector B (serial) and QX-1 Connector 2.
61-000167-02 — QX Cordset, M12 12-Pin Socket, Flying Leads
The 61-000167-02 cordset connects to QX-870 Connectors A and P/M, and QX-1 Connectors
1 and 3.
QX-870 Industrial Raster Scanner User Manual
Appendices
A-17
