Optoisolated Outputs
The reader has optoisolated outputs that can transfer signals from the reader to peripherals.
Outputs can be configured as either NPN or PNP, but NPN and PNP cannot be mixed in a
system, because the output common is shared by all outputs.

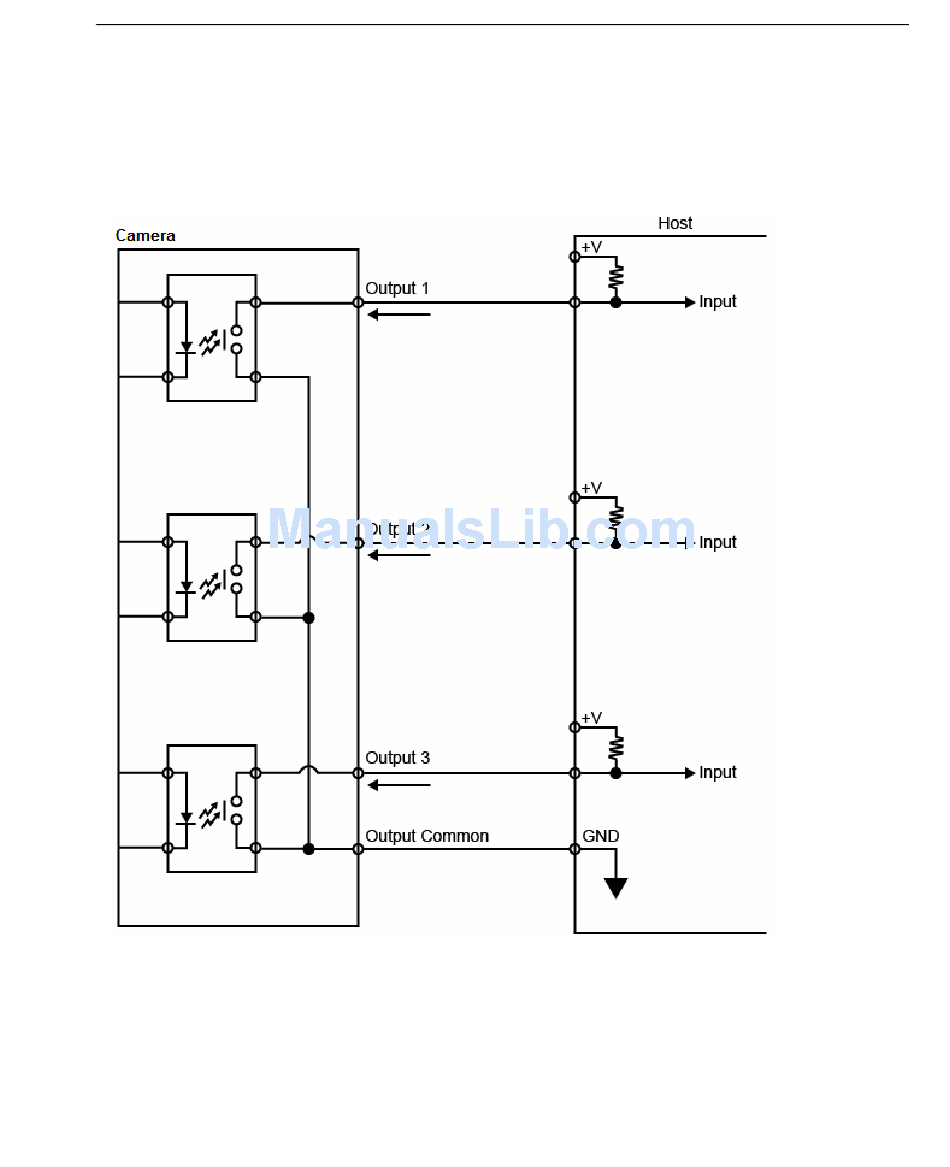

NPN Output for Host Input
A-9
