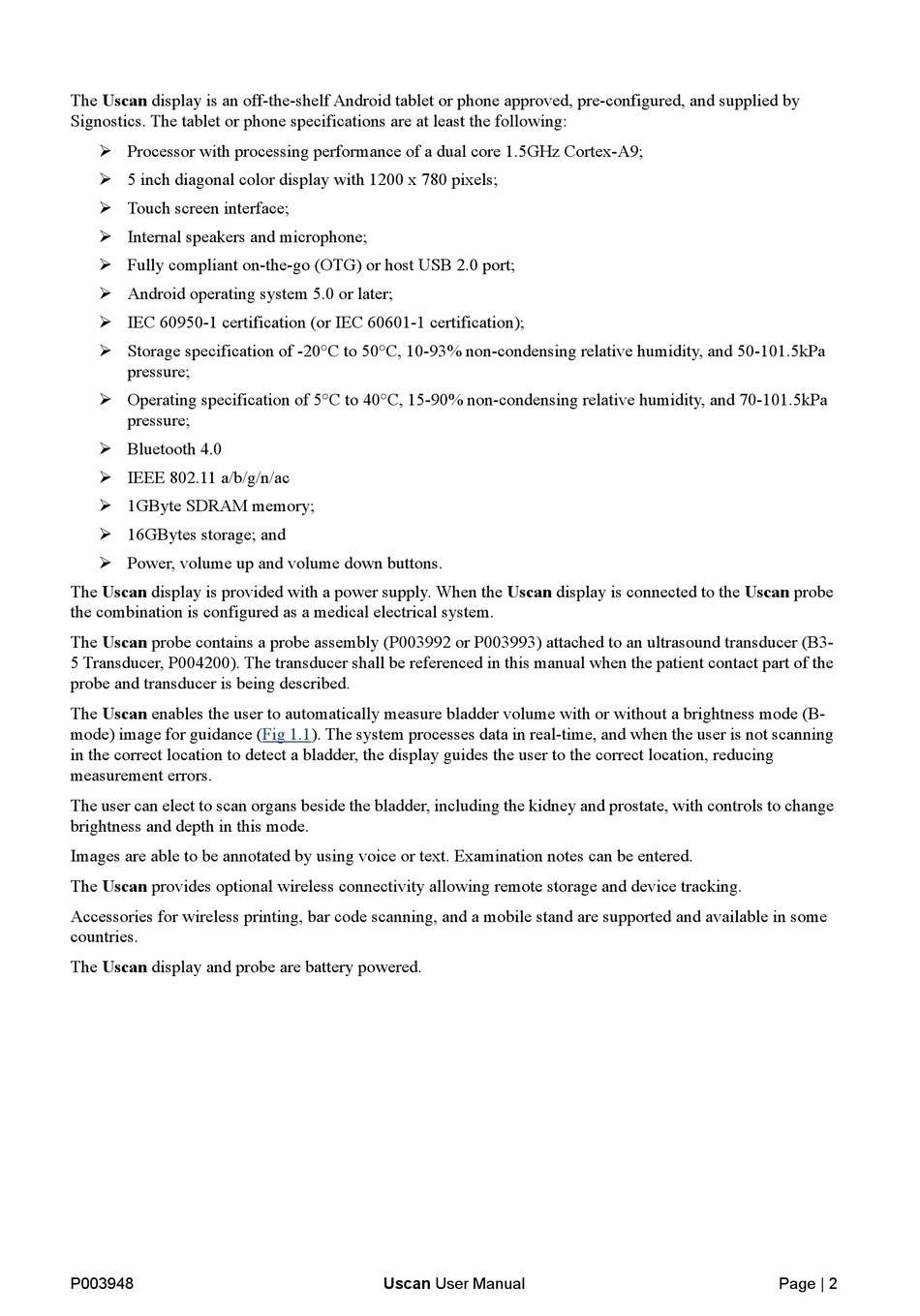

The Uscan display is an off-the-shelf Android tablet or phone approved, pre-configured, and supplied by
Signostics. The tablet or phone specifications are at least the following:
 Processor with processing performance of a dual core 1.5GHz Cortex-A9;
 5 inch diagonal color display with 1200 x 780 pixels;
 Touch screen interface;
 Internal speakers and microphone;
 Fully compliant on-the-go (OTG) or host USB 2.0 port;
 Android operating system 5.0 or later;
 IEC 60950-1 certification (or IEC 60601-1 certification);
 Storage specification of -20°C to 50°C, 10-93% non-condensing relative humidity, and 50-101.5kPa
pressure;
 Operating specification of 5°C to 40°C, 15-90% non-condensing relative humidity, and 70-101.5kPa
pressure;
 Bluetooth 4.0
 IEEE 802.11 a/b/g/n/ac
 1GByte SDRAM memory;
 16GBytes storage; and
 Power, volume up and volume down buttons.
The Uscan display is provided with a power supply. When the Uscan display is connected to the Uscan probe
the combination is configured as a medical electrical system.
The Uscan probe contains a probe assembly (P003992 or P003993) attached to an ultrasound transducer (B3-
5 Transducer, P004200). The transducer shall be referenced in this manual when the patient contact part of the
probe and transducer is being described.
The Uscan enables the user to automatically measure bladder volume with or without a brightness mode (B-
mode) image for guidance
in the correct location to detect a bladder, the display guides the user to the correct location, reducing
measurement errors.
The user can elect to scan organs beside the bladder, including the kidney and prostate, with controls to change
brightness and depth in this mode.
Images are able to be annotated by using voice or text. Examination notes can be entered.
The Uscan provides optional wireless connectivity allowing remote storage and device tracking.
Accessories for wireless printing, bar code scanning, and a mobile stand are supported and available in some
countries.
The Uscan display and probe are battery powered.
P003948
(Fig 1.1). The system processes data in real-time, and when the user is not scanning
