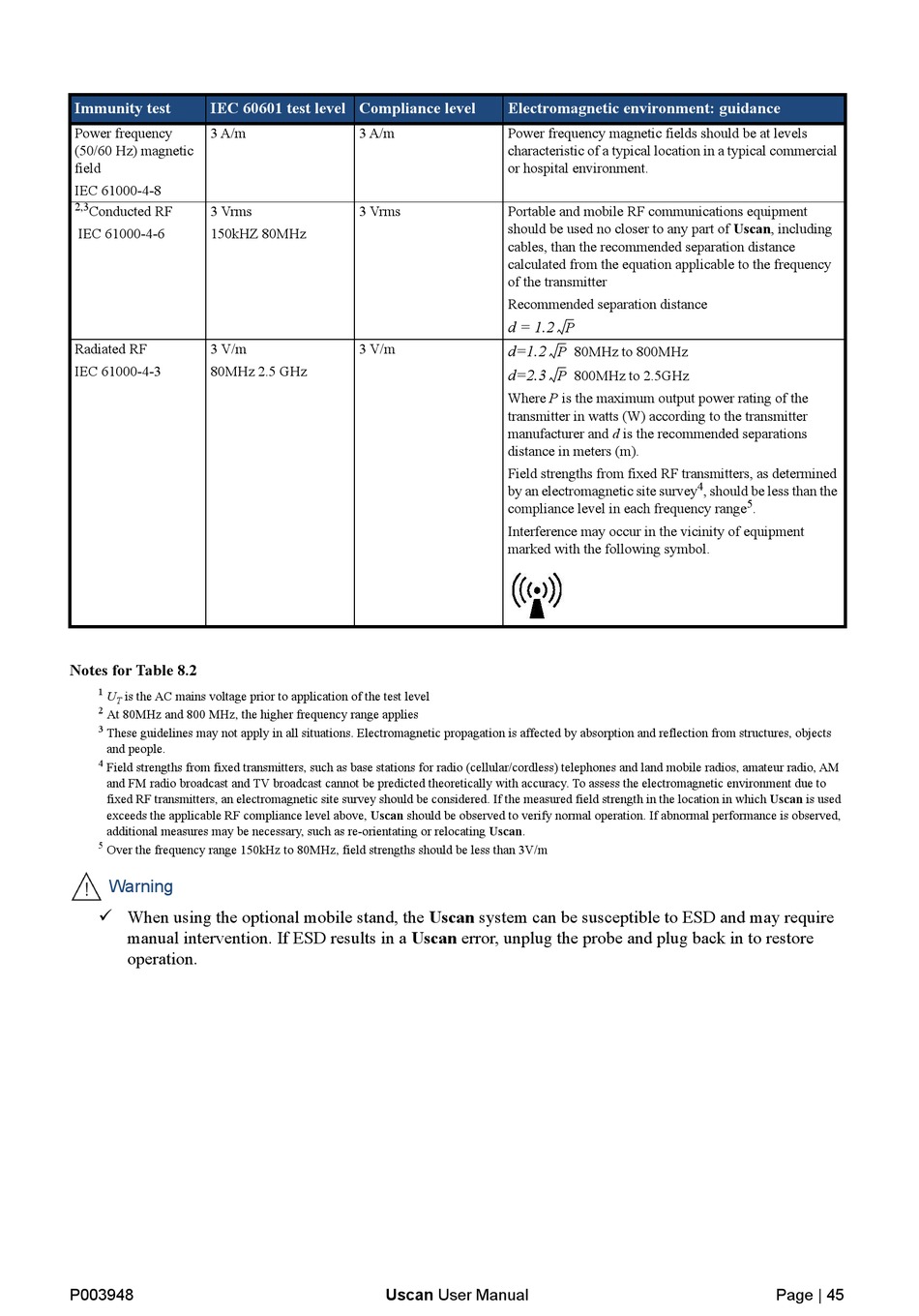

Immunity test IEC 60601 test level Compliance level
Power frequency 
3 A/m
(50/60 Hz) magnetic
field
IEC 61000-4-8
2,3
Conducted RF 3 Vrms
IEC 61000-4-6 150kHZ 80MHz
Radiated RF 3 V/m
IEC 61000-4-3 80MHz 2.5 GHz
Notes for Table 8.2
1
U is the AC mains voltage prior to application of the test level
T
2
At 80MHz and 800 MHz, the higher frequency range applies
3
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects
and people.
4
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM
and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to
fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which Uscan is used
exceeds the applicable RF compliance level above, Uscan should be observed to verify normal operation. If abnormal performance is observed,
additional measures may be necessary, such as re-orientating or relocating Uscan.
5
Over the frequency range 150kHz to 80MHz, field strengths should be less than 3V/m
Warning
 When using the optional mobile stand, the Uscan system can be susceptible to ESD and may require
manual intervention. If ESD results in a Uscan error, unplug the probe and plug back in to restore
operation.
P003948
Electromagnetic environment: guidance
3 A/m Power frequency magnetic fields should be at levels
characteristic of a typical location in a typical commercial
or hospital environment.
3 Vrms Portable and mobile RF communications equipment
should be used no closer to any part of Uscan, including
cables, than the recommended separation distance
calculated from the equation applicable to the frequency
of the transmitter
Recommended separation distance
d = 1.2
3 V/m
d=1.2
d=2.3
Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separations
distance in meters (m).
Field strengths from fixed RF transmitters, as determined
by an electromagnetic site survey
compliance level in each frequency range
Interference may occur in the vicinity of equipment
marked with the following symbol.
Uscan User Manual
P
P 80MHz to 800MHz
P 800MHz to 2.5GHz
