 Tap Bluetooth.
 Slide the on-screen button to the right
 Select the bar code scanner to pair it with the system.
 Tap Home to return to Uscan Home screen.

Imaging Screens

Ultrasound Scan Screens

Tap Ultrasound on the Home screen to start an ultrasound exam. See
Patient Details
Image Gain
(brightness) and
Depth
Done (End Exam)
Freeze (Unfreeze)
Patient Details
Preset Used
Image Text
Annotation
Orientation Mark
Image Date and
Time
Done (End Exam)
Freeze (Unfreeze)
The ultrasound screen layouts contain the following areas:
 Patient Details – displays patient details for the current exam.
 Preset Used – displays the scan preset used for the current image.
 Image Text Annotation – displays the text annotation for the image.
 Image Date and Time – displays the date and time of the image.
 Gain and Depth Controls – adjust the gain (brightness) or the depth for the system.
P003948
to turn Bluetooth on.

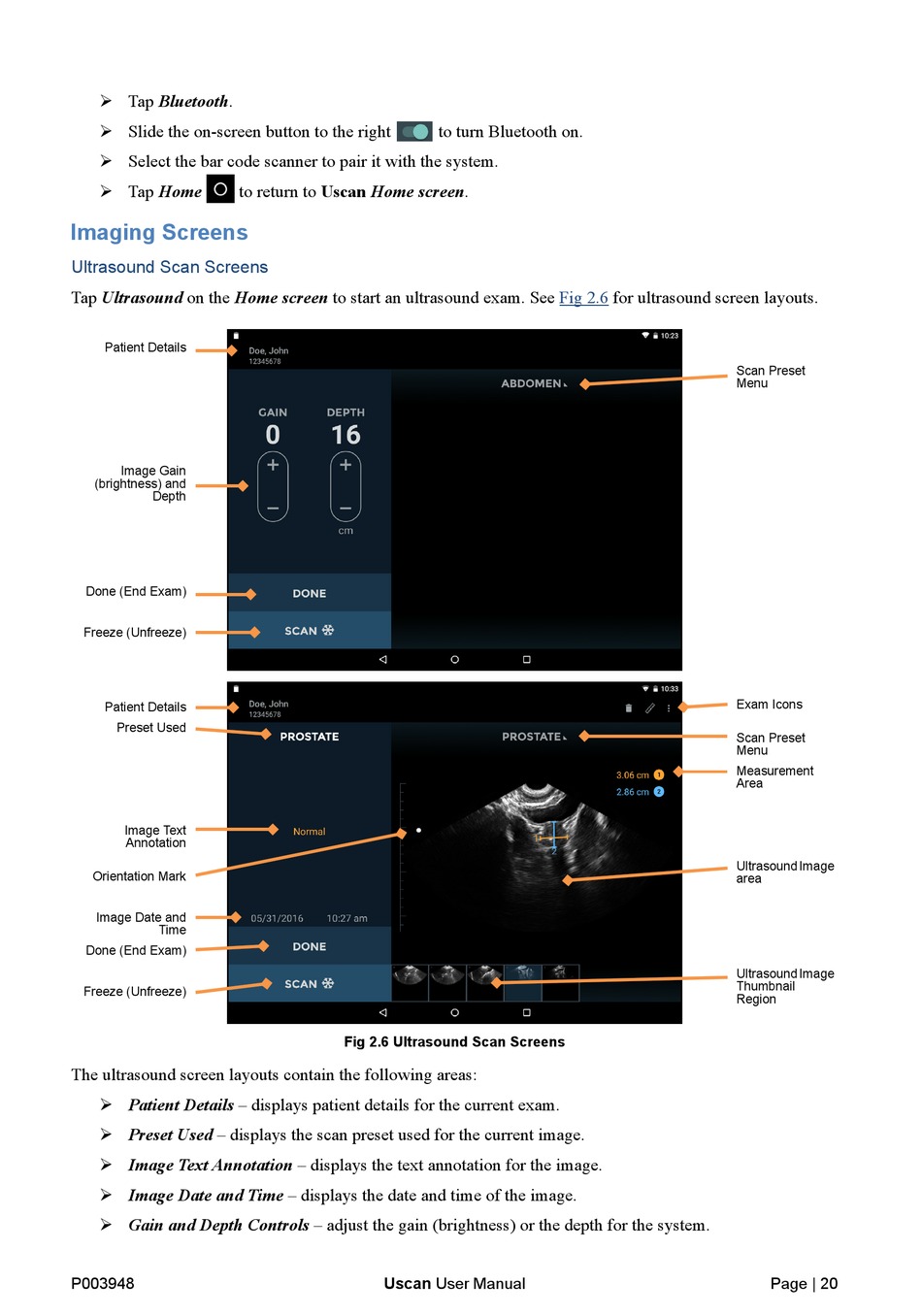

Fig 2.6 Ultrasound Scan Screens
Uscan User Manual
Fig 2.6 for ultrasound screen layouts.
Scan Preset
Menu

Exam Icons
Scan Preset
Menu
Measurement
Area
Ultrasound Image
area

Ultrasound Image
Thumbnail
Region
