 Only connect to an AC supply rated at 100-240V and 50-60Hz.
 Do not use the device or power supplies (chargers) if there are signs of damage.
The Signostics power supply (P003198) delivers a charging power to the Uscan Probe of between 0-10W.
From a fully discharged state, full charge of the probe will take approximately 2-3 hours.

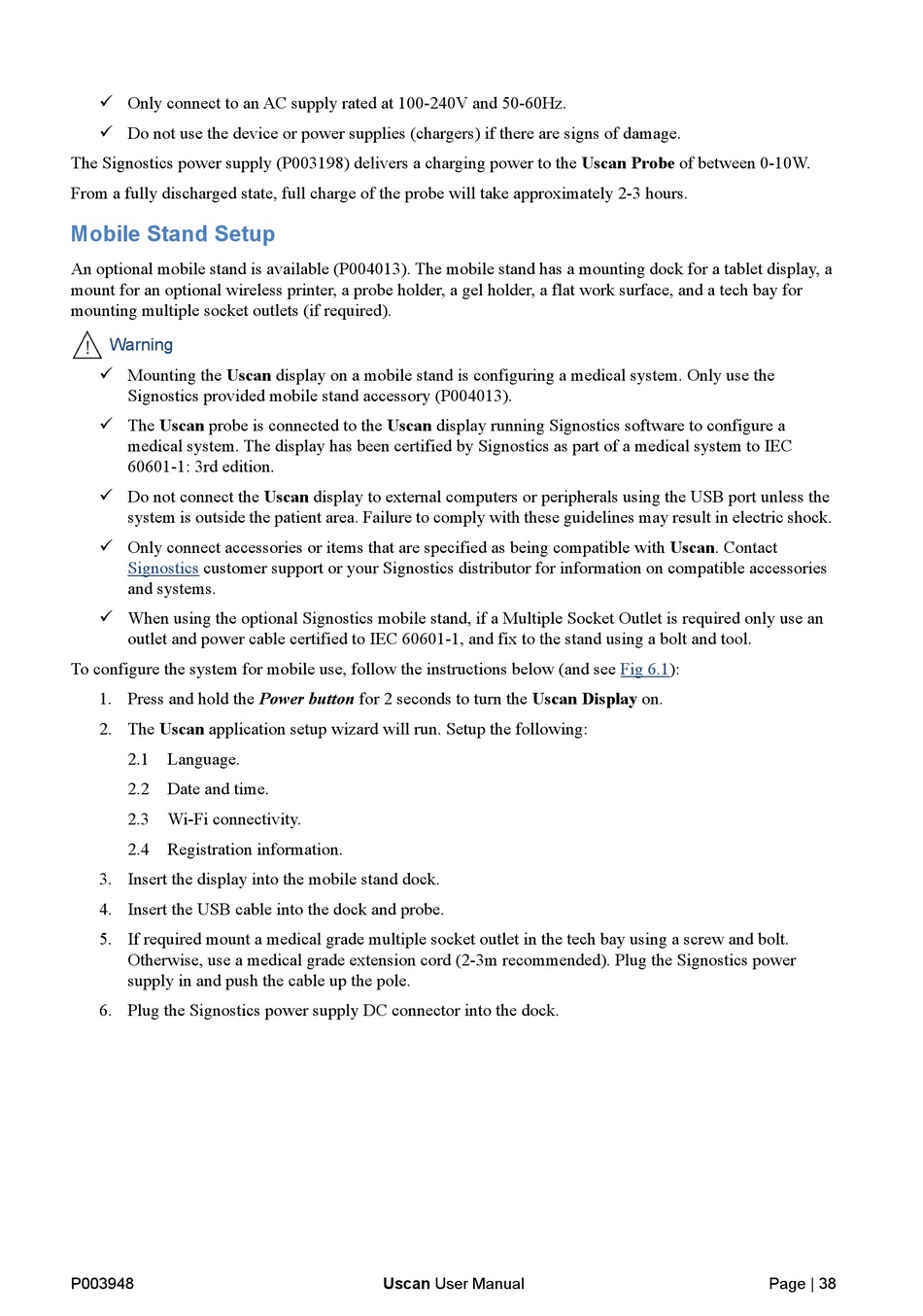

Mobile Stand Setup

An optional mobile stand is available (P004013). The mobile stand has a mounting dock for a tablet display, a
mount for an optional wireless printer, a probe holder, a gel holder, a flat work surface, and a tech bay for
mounting multiple socket outlets (if required).
Warning
 Mounting the Uscan display on a mobile stand is configuring a medical system. Only use the
Signostics provided mobile stand accessory (P004013).
 The Uscan probe is connected to the Uscan display running Signostics software to configure a
medical system. The display has been certified by Signostics as part of a medical system to IEC
60601-1: 3rd edition.
 Do not connect the Uscan display to external computers or peripherals using the USB port unless the
system is outside the patient area. Failure to comply with these guidelines may result in electric shock.
 Only connect accessories or items that are specified as being compatible with Uscan. Contact
Signostics customer support or your Signostics distributor for information on compatible accessories
and systems.
 When using the optional Signostics mobile stand, if a Multiple Socket Outlet is required only use an
outlet and power cable certified to IEC 60601-1, and fix to the stand using a bolt and tool.
To configure the system for mobile use, follow the instructions below (and see
1. Press and hold the Power button for 2 seconds to turn the Uscan Display on.
2. The Uscan application setup wizard will run. Setup the following:
2.1 Language.
2.2 Date and time.
2.3 Wi-Fi connectivity.
2.4 Registration information.
3. Insert the display into the mobile stand dock.
4. Insert the USB cable into the dock and probe.
5. If required mount a medical grade multiple socket outlet in the tech bay using a screw and bolt.
Otherwise, use a medical grade extension cord (2-3m recommended). Plug the Signostics power
supply in and push the cable up the pole.
6. Plug the Signostics power supply DC connector into the dock.
P003948 Uscan User Manual
Fig 6.1):
