Bladder Scan Screens
Tap Bladder Scan on the Home screen to start a bladder measurement. See
Patient Type
Patient Details
Instructions
Instruction
Animation
Done (End Exam)
Freeze (Unfreeze)
Orientation Mark
Measured Volume
Image Text
Annotation
Image Date and
Time
The bladder screen layouts contain the following areas:
 Patient Type – tap to change the patient type (Normal, pediatric, deep, pregnant, phantom).
 Patient Details – displays patient details for the current exam.
 Instructions – instructions of current step required for bladder measurement.
 Instruction animation – animation of current step required for bladder measurement.
 Done – tap to end and save the exam.
 Scan (Stop) – tap to start (unfreeze) and stop (freeze) scans.
 Orientation Mark – corresponds to the Scan button orientation on the probe.
 Measured Volume – measured volume in milliliters.
 Image Text Annotation – displays the text annotation for the image.
 Image Date and Time – displays the date and time of the image.
P003948

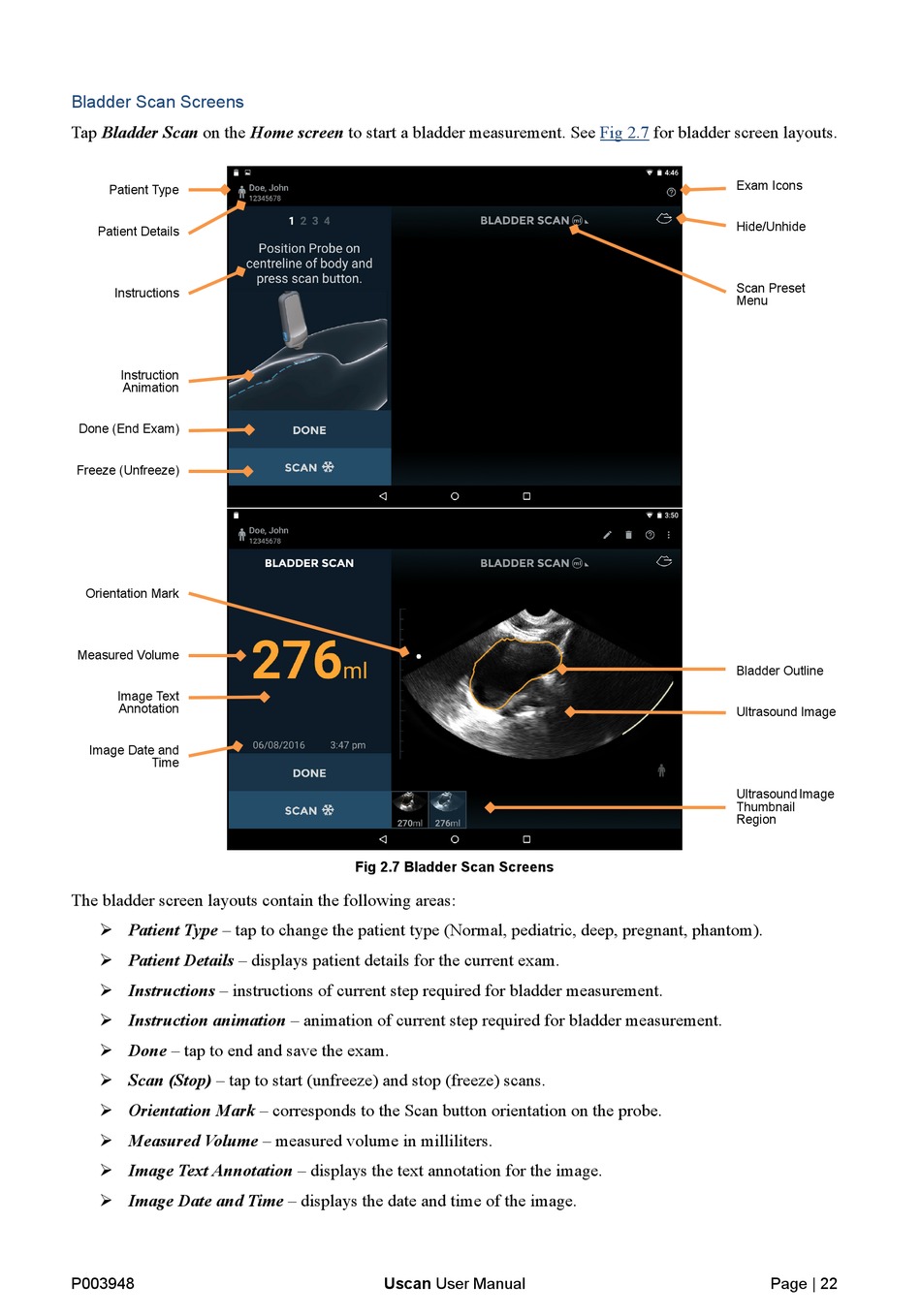

Fig 2.7 Bladder Scan Screens
Uscan User Manual
Fig 2.7 for bladder screen layouts.
