2. G S
ETTING TARTED

Unpacking the Boxes

Your Uscan system is shipped in multiple boxes. Be careful not to insert anything sharp through the top of the
boxes when opening. Check you have received all of the ordered components:
 A Uscan display (with pre-installed Signostics software), associated power supply, probe connection
cable, protective cover, and setup guide.
 A Uscan probe with Signostics power supply, USB Flash drive, and quick reference guide.

Options

 Carry bag with probe holder and protective cover.
 Wireless printer (Citizen Systems Model CMP-20BTU 2" Mobile Printer with Bluetooth).
 Wireless barcode scanner (not available in all countries. Contact
Signostics distributor for recommended scanners).
 Mobile stand (P004013) with Signostics power supply and probe connection cable.
If any parts are missing or damaged then contact
soon as possible.

Connecting and disconnecting the Power Supply

You should fully charge the display and probe before using them for the
first time (see Fig 2.1).
Warning
 Recharge Uscan only with the Power Supplies (chargers)
provided.
 The Uscan Power Supply is a dedicated unit to be used
exclusively with the Uscan System only.
 Only connect the Power Supplies to a mains supply rated at
100-240V and 50-60Hz.
 Do not use the device or Power Supply if there are signs of
damage.
Recharge the display using the power supply provided with the display. The connector is magnetic and can
only be connected in one orientation.
The Uscan probe contains an internal rechargeable battery. The probe can be directly charged using the Power
Supply (P003198) as shown in
plugged into its power supply, both the display and ultrasound probe batteries are recharged together. The
handheld display does not have separate charging and USB ports, so concurrent charging is not possible.
If required, recharge the probe using the Signostics Power Supply (P003198) (see
mains voltages from the equipment remove the display power supply connection and (if applicable) the
probe power supply connection.
P003948
Signostics
Fig 2.1. If the probe is connected to the tablet display, and the tablet display is
Uscan User Manual
Signostics customer support or your
customer support or your Signostics distributor as

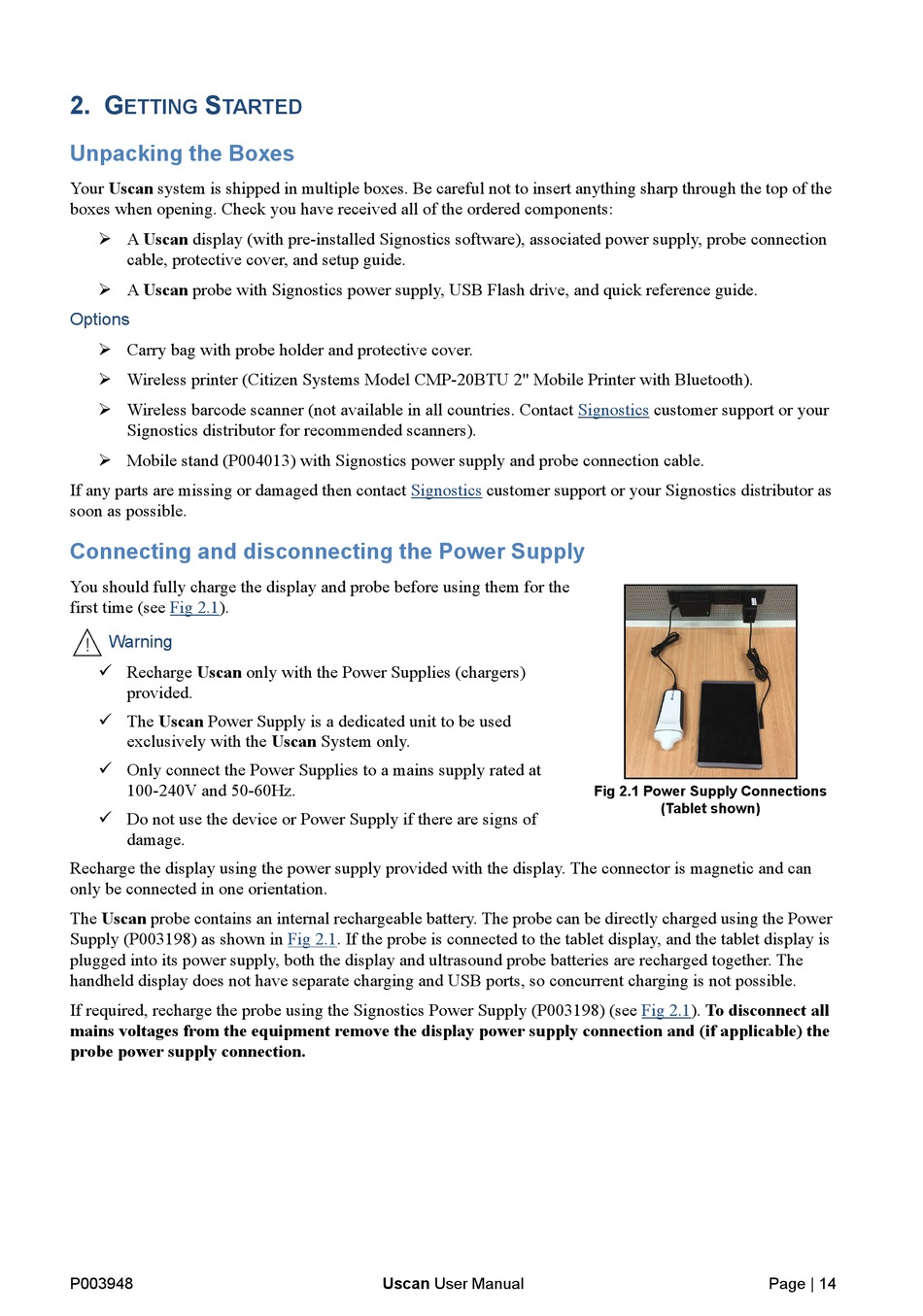

Fig 2.1 Power Supply Connections
Fig
(Tablet shown)
2.1). To disconnect all
