3. Press
4. VFD display "Auto Low High", indicating the range
Auto: auto range, when voltage is below 18V, the resolution is 0.1mV; when
voltage is over 18V, the resolution is 1mV
Low and High is low or high range, when in low range, the voltage resolution is
0.1mV; when in high range, the voltage resolution is 1mV

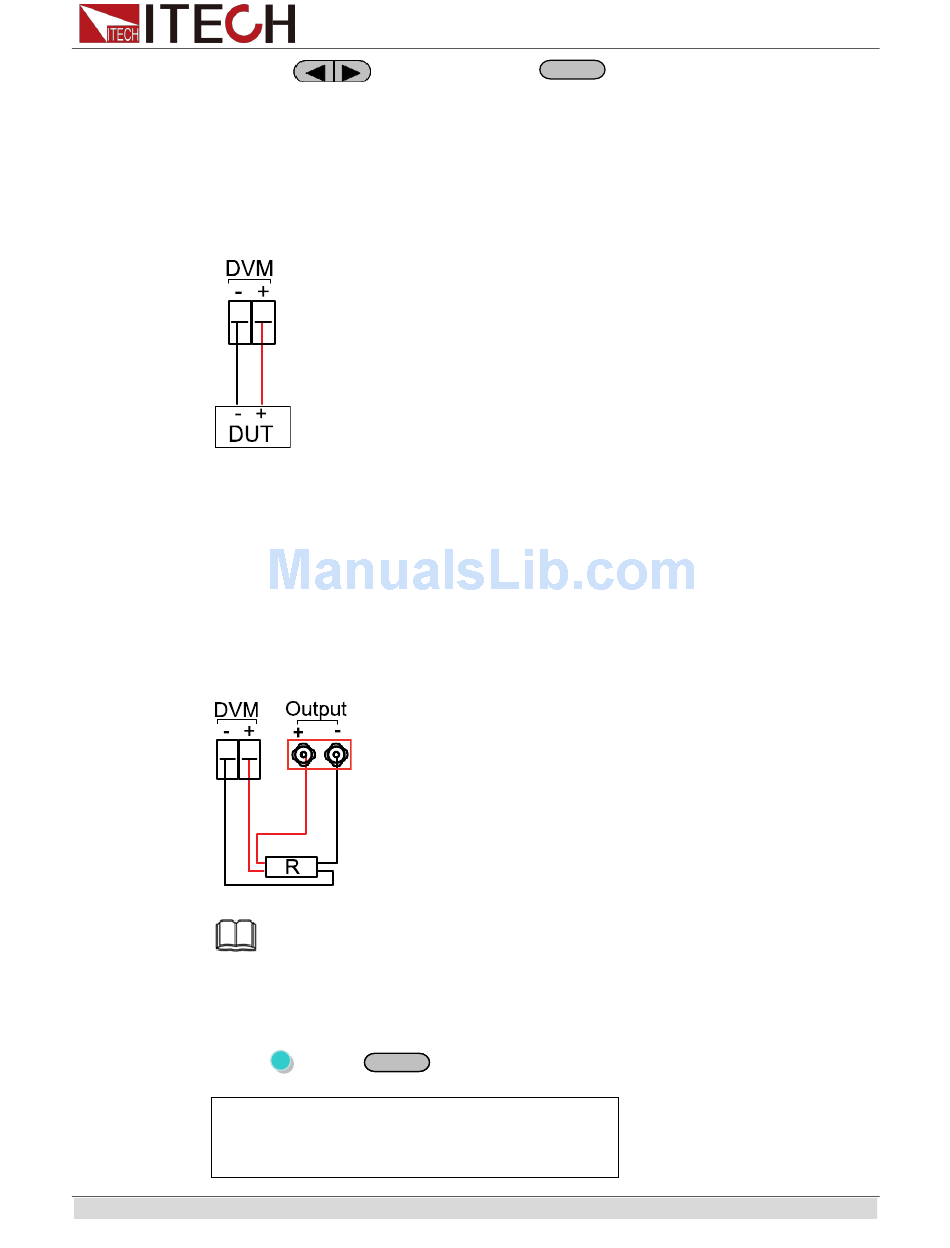

To measure voltages, connect the leads as shown here:
Milliohm Meter
The instrument is also equipped with a Milliohm Meter which can accurately
measure resistance up to 1kΩ.
To protect the resistor, make sure to select an appropriate power range before
connecting it to the power supply.
The range for the milliohm meter can be selected are: 0.1W、1W、10W。
To measure resistance, connect the resistor as shown below:
Swithing operation of DVM and milliohm meter
Press
OFF
0.0000V
0.000Ω
to select DVM, press
NOTE
The wires at the positive and negative terminal of the DVM should be connected at the root of
the resistance to be measured!
Meter Meter
(Shift)+ (DVM/DRM)
0.00000A
Range: 10W
Copyright © ITECH Electronics Co., Ltd.
Enter
to confirm
Basic operation
