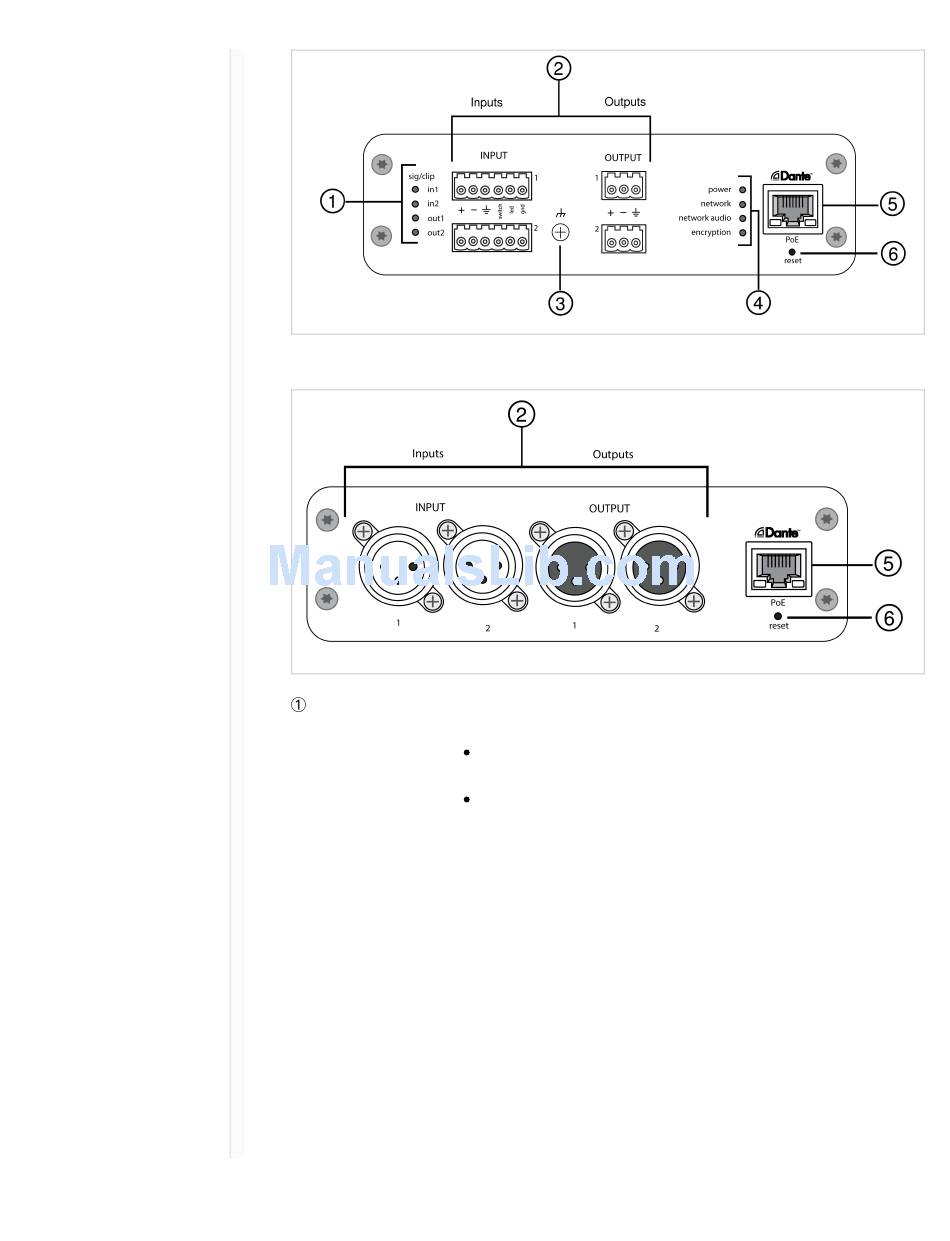

XLR Model:
Signal/Clip Each indicator corresponds to a single channel. Analog and digital
Indicators gain adjustments are made through the web application.
LED State
Off
Green
Yellow
If an input channel LED turns red, attenuate the level from the
source device to prevent clipping at the input stage.
If an output channel LED turns red, lower the corresponding
Digital Gain (dB) fader for the Dante channel under the Input
Channels tab. Do not lower the output level (line/aux/mic), as
any clipping indicated on the LED occurs before the final
output level stage.
Audio Signal
Level
less than -60
dBFS
-60 dBFS to
-18 dBFS
-18 dBFS to -6
dBFS
