1. Hold the tray in the desired location under a table
2. Use a pencil to mark the location of the mounting holes on the table.
3. Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.
4. Install the components into the tray
5. Install with 4 screws to secure the tray underneath the table
Signal Flow and Connections

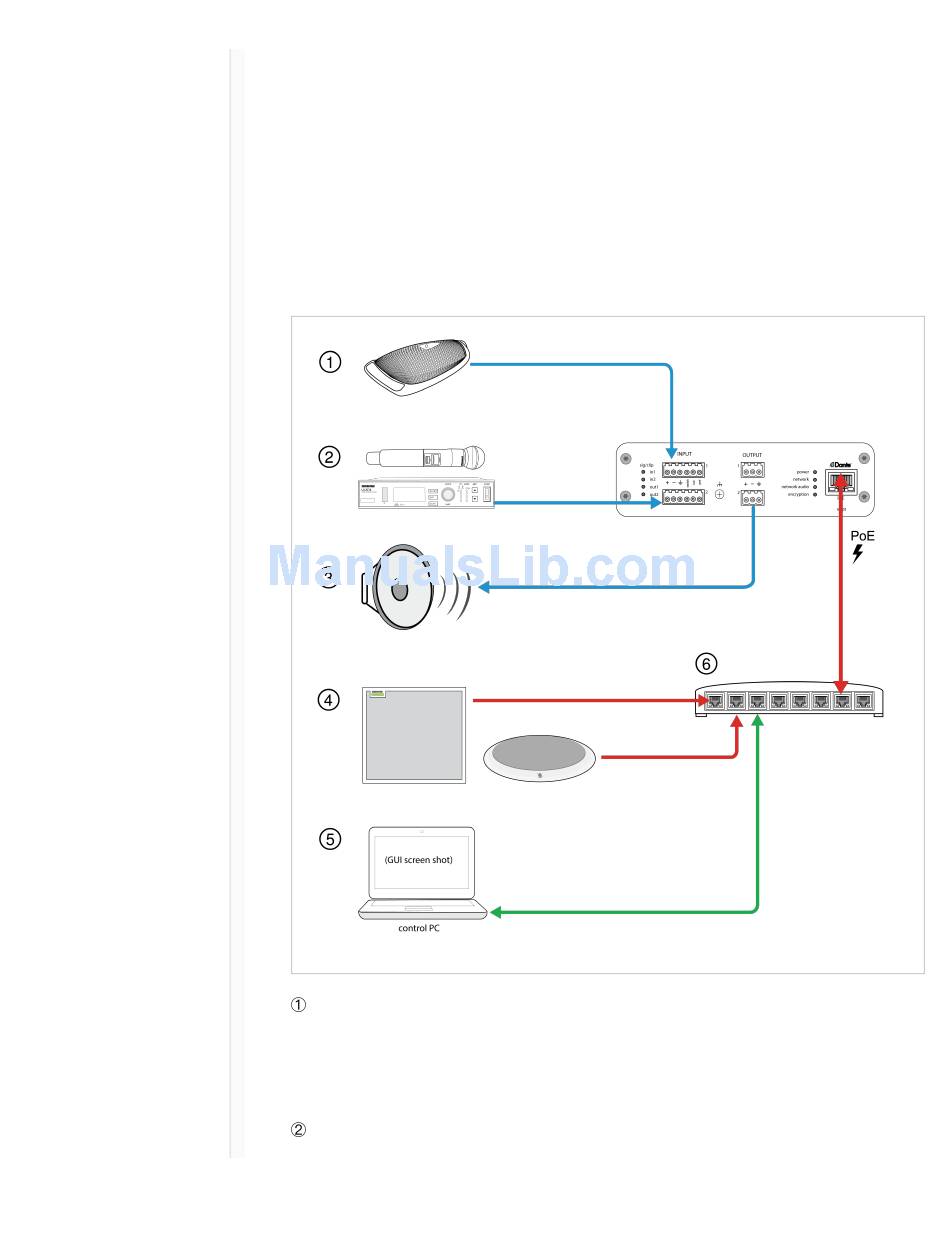

Connections and Signal Flow
Analog Input with In addition to running the audio signal, this boundary microphone
Logic Connection features three additional wire leads for logic connections. This
(MX392) allows the switch on the microphone to send a logic mute signal to
other equipment on the network, and to receive a logic LED
control signal.
Analog Input Analog sources, such as wireless microphones, connect to the
