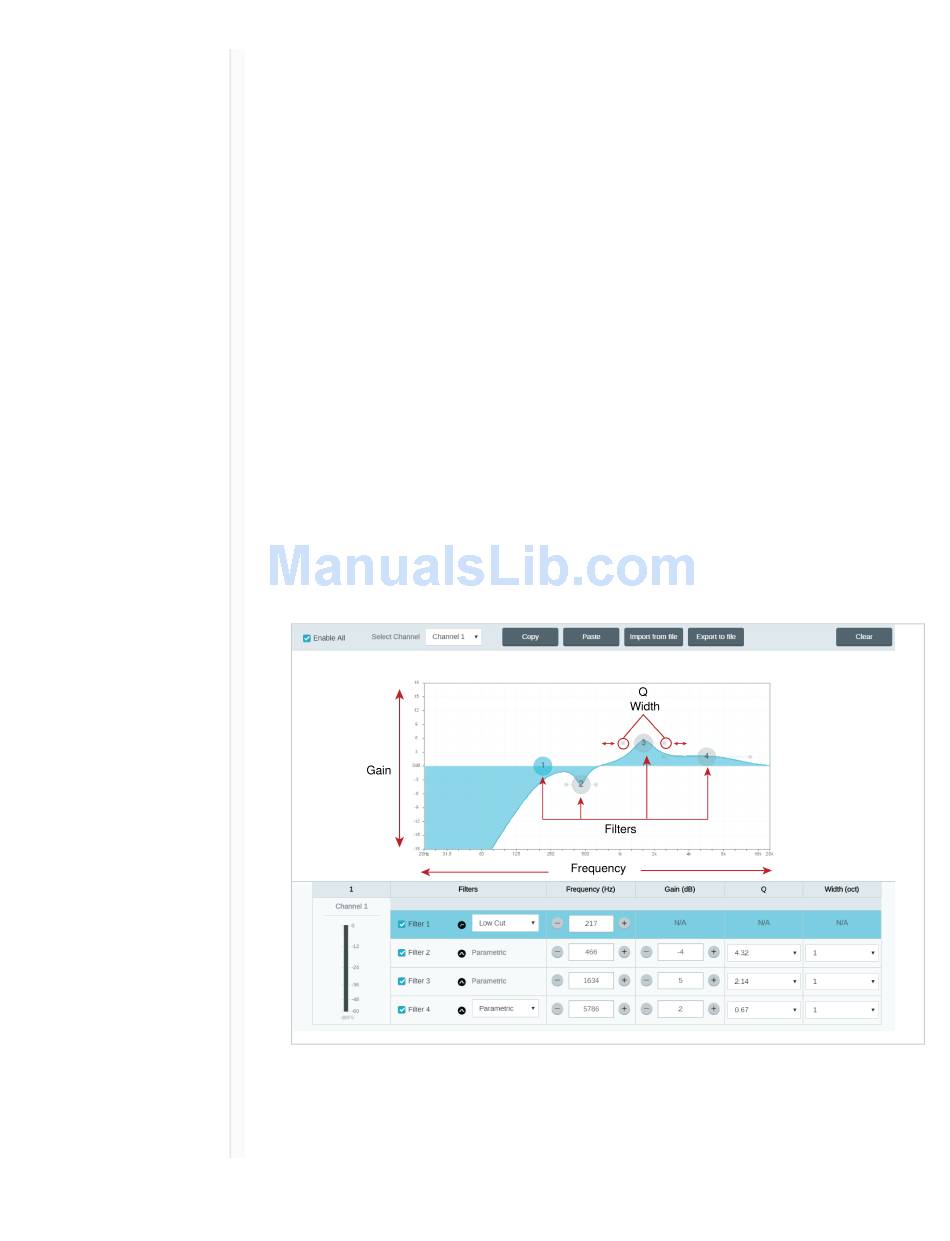

Adjust filter settings by manipulating the icons in the frequency response graph, or by
entering numeric values. Disable a filter using the check-box next to the filter.
Filter Type Only the first and last band have selectable filter types.
Parametric: Attenuates or boosts the signal within a customizable
frequency range
Low Cut: Rolls off the audio signal below the selected frequency
Low Shelf: Attenuates or boosts the audio signal below the
selected frequency
High Cut: Rolls off the audio signal above the selected frequency
High Shelf: Attenuates or boosts the audio signal above the
selected frequency
Frequency Select the center frequency of the filter to cut/boost
Gain Adjusts the level for a specific filter (+/- 30 dB)
Q Adjusts the range of frequencies affected by the filter. As this value
increases, the bandwidth becomes thinner.
Width Adjusts the range of frequencies affected by the filter. The value is
represented in octaves.
Note: the Q and width parameters affect the equalization curve in the same
way. The only difference is the way the values are represented.
Copy, Paste, Import, and Export Equalizer Channel Settings
These features make it simple to use effective equalizer settings from a previous
installation, or simply accelerate configuration time.
