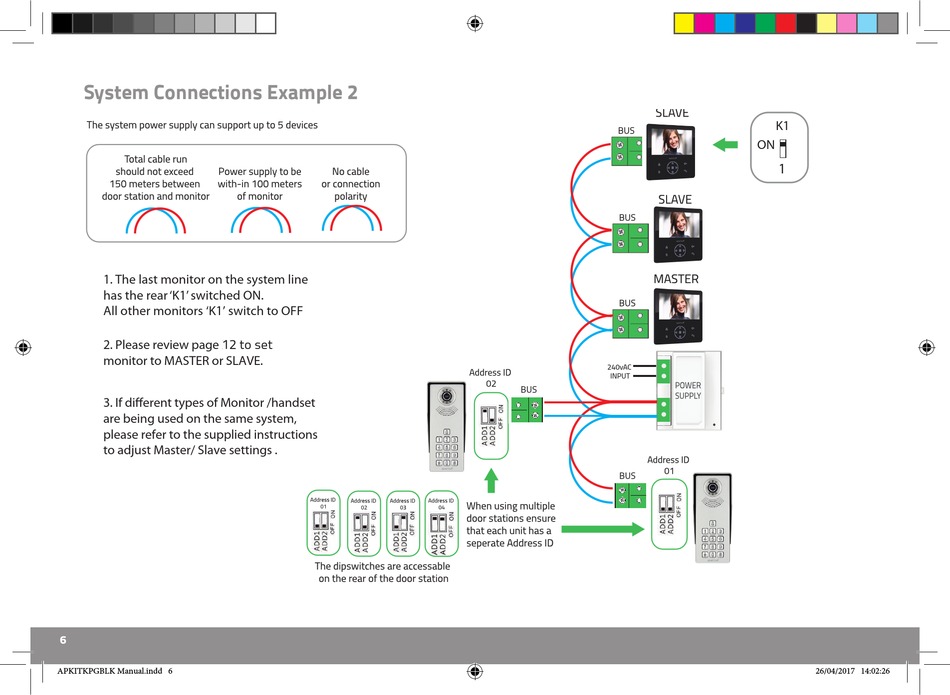

System Connections Example 2

K1
ON
1
1. The last monitor on the system line
has the rear 'K1' switched ON.
All other monitors 'K1' switch to OFF
12 to set
2. Please review page XXXX to set
monitor to MASTER or SLAVE.
3. If di erent types of Monitor /handset
are being used on the same system,
please refer to the supplied instructions
to adjust Master/ Slave settings .
6
