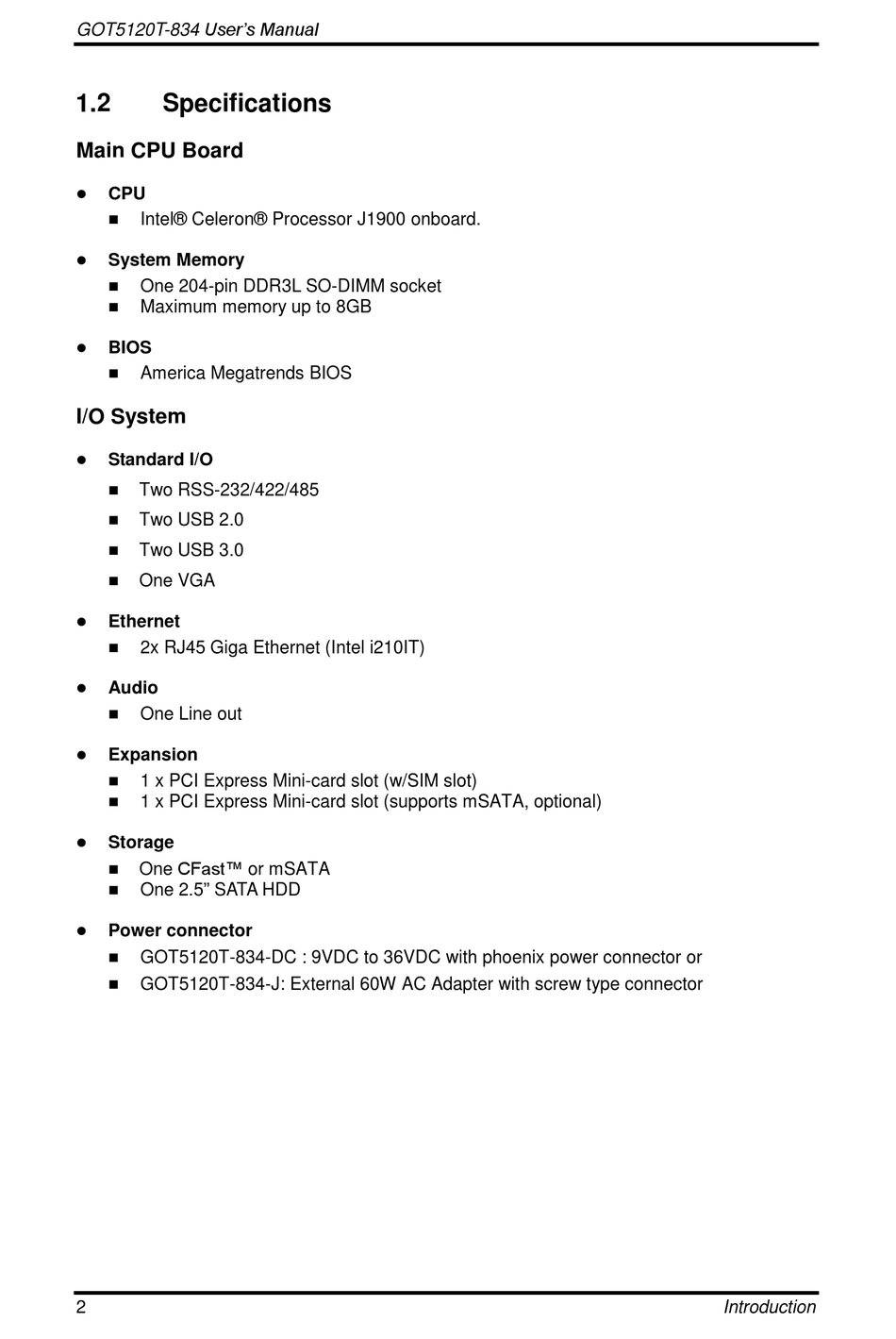

Specifications - AXIOMTEK GOT5120T-834 User Manual

GOT5120T-834 User's Manual
1.2

Specifications

Main CPU Board
 CPU
 Intel® Celeron® Processor J1900 onboard.
 System Memory
 One 204-pin DDR3L SO-DIMM socket
 Maximum memory up to 8GB
 BIOS
 America Megatrends BIOS
I/O System
 Standard I/O

Two RSS-232/422/485
 Two USB 2.0
 Two USB 3.0
 One VGA
 Ethernet

2x RJ45 Giga Ethernet (Intel i210IT)
 Audio
 One Line out
 Expansion
 1 x PCI Express Mini-card slot (w/SIM slot)
 1 x PCI Express Mini-card slot (supports mSATA, optional)
 Storage
One CFast™ or mSATA

 One 2.5" SATA HDD
 Power connector
 GOT5120T-834-DC : 9VDC to 36VDC with phoenix power connector or
 GOT5120T-834-J: External 60W AC Adapter with screw type connector
2 Introduction
