Teeter Contour Power Assembly Instructions Manual page 12

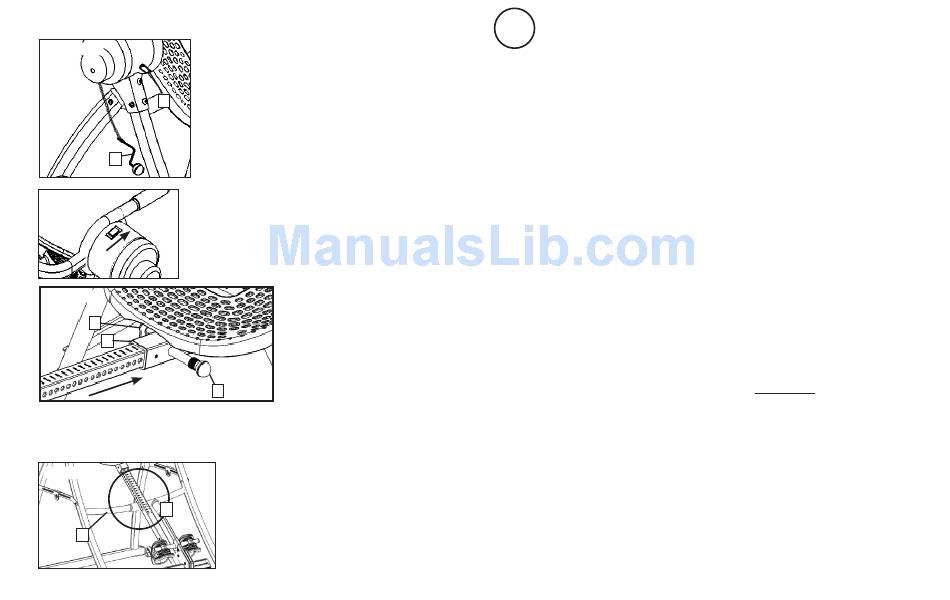

FIGURE 11
1
1
2
Safety Key
2
Hand Crank
FIGURE 12
FIGURE 13
1
2
3
1
De-Rattler Knob
2
Main Shaft Housing
3
Height-Selector Locking Pin
FIGURE 14
2
1
Insert the Main Shaft (NX-1620) into the Table Bed (CP-1300).
• Plug in the power supply. Be sure that the Hand Crank is not engaged in the motor and that
the Safety Lock has been turned off (Figure 11). See Step 6 for more information on the
Safety Lock.
NOTE: The Safety Lock Key will remain in the lock when disabled and the table is in use.
• Rotate the bed upright to the horizontal position (Figure 12) by pressing forward (towards
Ankle System) on the Rotation Control Button on the Motor Housing.
• Loosen the De-Rattler Knob at the base of the Main Shaft Housing.
• With the height adjustment settings on the Main Shaft facing up, insert the end of the Main
Shaft into the Main Shaft Housing at the base of the Table Bed (Figure 13).
• Pull out the Height Selector Locking Pin to allow the Main Shaft to slide in further,
then release the pin to engage a hole. (Refer to the Owner's Manual for proper height
adjustment before use.)
NOTE: The De-Rattler Knob is an optional feature that prevents a slight shift when you
invert. Product security is not compromised if you choose to not tighten the knob.
• Finish rotating the bed upright to its "start" position. The Main Shaft must rest against the
Crossbar of the A-frame (Figure 14). If the Main Shaft does not rest on the Crossbar as
shown in Figure 14 then the Table Bed has been assembled backwards onto the A-frame
1
Crossbar
2
Proper Resting Position
Step 4
