ComforTrak
Assembly Instructions
Models EP-560, EP-860, EP-960, EP-970
5
To download and print Teeter's ComforTrak
Pour télécharger et imprimer le manuel du propriétaire ComforTrak
Para descargar e imprimir las instrucciones de montaje de ComforTrak
Series
TM
FULL
YEAR
instructions, visit the product support page at teeter.com.
™
, visitez la page d'assistance des produits au teeter.com
™
en español, visite teeter.com
™
NEW!
Follow along with
your smartphone
to make assembly
even easier!

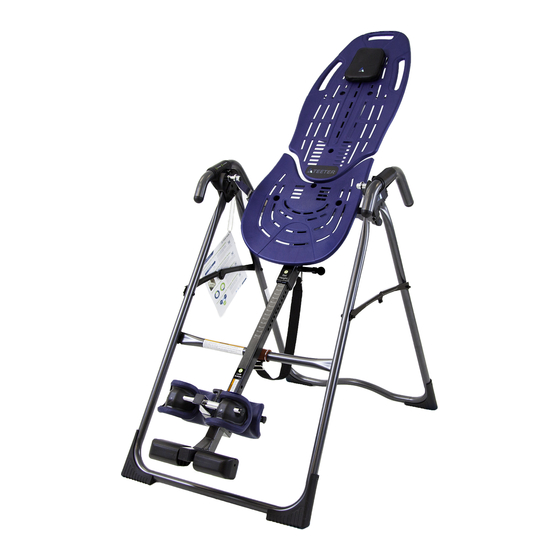

* Specifications may vary from this image and
are subject to change without notice.
The EP-560 is shown here.
Your actual model may vary.
EN
