  • Page 1 ES411.1 A/D Module User’s Guide...
  • Page 2 The data in this document may not be altered or amended without special noti- fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in rela- tion to this document. The software described in it can only be used if the customer is in possession of a general license agreement or single license.

  • Page 3: Table Of Contents

    Features of the ES411.1 ........

  • Page 4: Fig. 5-17 Es400 Modules With Additional Etas Modules And Drive Recorder

    General ..........57 5.4.2 ES411.1 with additional ETAS Modules (MC Application)..57 5.4.3 ES411.1 with additional ETAS Modules (Rapid Prototyping Application)
  • Page 5 LED Displays ..........69 Troubleshooting ES411.1 Problems ....... 70 Problems and Solutions .
  • Page 6 10 ETAS Contact Addresses ........

  • Page 7: About This Manual

    (serious) injury, if not avoided. CAUTION! identifies a hazard with low risk that could result in minor or medium physical injuries or property damages if not avoided. ES411.1 - User’s Guide...

  • Page 8: Presentation Of Information

    (see chapter 9.1 on page 131). Additional cables and adapters can be obtained separately from ETAS. A list of available accessories and their order designation is located in chapter "Accesso- ries" on page 132 of this manual or in the ETAS product catalog.

  • Page 9: Basic Safety Notices

    • "Requirements for Users and Duties for Operators" on page 9 • "Intended Use" on page 9. General Safety Information Please observe the Product Safety Notices ("ETAS Safety Notice") and the follow- ing safety notices to avoid health issues or damage to the device. Note Carefully read the documentation (Product Safety Advice and this User's Guide) that belongs to the product prior to the startup.
  • Page 10 Connect the power cable only with a suitable vehicle battery or with a suitable lab power supply! The connection to power outlets is not allowed! To prevent an inadvertent insertion in power outlets, ETAS recom- mends to equip the power cables with safety banana plugs in areas with power outlets.
  • Page 11 • Use exclusively ETAS cables at the connections of the module! • Adhere to the maximum permissible cable lengths! • Do not use any damaged cables! Cables may be repaired only by ETAS! CAUTION! Never apply force to insert a plug into a socket.
  • Page 12 Please observe which way the module is pointing when installing ver- tically! Transport • Mount and connect the modules only at the location of their startup! • Do not transport the modules at the cable of the module or any other cables. ES411.1 - User’s Guide...
  • Page 13 Maintenance The product is maintenance-free. Repair If a repair of an ETAS hardware product should become necessary, send the prod- uct to ETAS. Cleaning the module housing • Use a dry or lightly moistened, soft, lint-free cloth for cleaning the module housing.
  • Page 14 Basic Safety Notices ETAS ES411.1 - User’s Guide...

  • Page 15: Es400 Product Family

    Fig. 3-1 Central and Decentral Sensor Cabling With the ES400 modules, ETAS provides a decentral solution which considerably simplifies the test setup of the sensors. The basic idea of this concept is to install the modules of the ES400 family as close as possible to the sensors, to concatenate the modules with each other and to connect just the first module of this chain with the laptop in the vehicle.

  • Page 16: Features Of The Es400 Line

    • Each module has an LED for localizing the module. • The A/D Modules of the ES400 family use a XCP-based protocol which is compatible to the existing ETAS Ethernet topology. The concept fulfils the following requirements: – High bandwidth to be able to realize lots of channels with high resolu-...

  • Page 17: Housing

    Data" on page 81. Housing A sturdy metal housing is used for the ES411.1; it has ports on the front of the device so it can fit into tight spaces. The ES411.1 is specifically designed to be installed in engine compartment, but also in the passenger cell.

  • Page 18: Ports

    Front 3.4.1 “Sensor” Port The front of the ES411.1 features a 22-pin Souriau port to which four sensors can be connected using a adapter cable. An individual sensor power supply port is available for each sensor. The use of a “cable tail” or “whip” solution with just one connector makes it possible to change the modules quickly within complex test setups.

  • Page 19: Indicator

    600 ms off 3.5.3 Functional State Display Functional State Note Yellow-red, flash- Warning Overload on a sensor supply ing, voltage channel semi bright, 1 Hz Red, Error state Error during self-test fully bright Red, Internal error semi bright ES411.1 - User’s Guide...
  • Page 20 ES400 Product Family ETAS ES411.1 - User’s Guide...

  • Page 21: Hardware Description

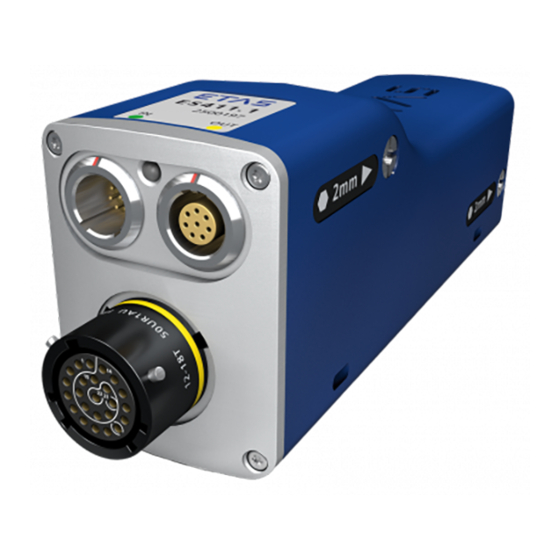

    Features of the ES411.1 Fig. 4-1 ES411.1 Housing The ES411.1 A/D Module with Sensor Supply is a member of the family of ES400- Modules. The ES411.1 can acquire analog voltages at four input channels. There is a sensor supply for every channel.

  • Page 22: Block Diagram

    Hardware Description ETAS Block Diagram The ES411.1 is a module with four identical sensor channels, two shared Ether- net interfaces and a power supply. Synchronous Sampling Channel 4 Channel 1 +/-0,1 V +/-1 V 16-Bit A/D Digital Filter Converter +/-10 V...

  • Page 23: Sensor Channels

    In the application program (e.g. INCA MDA), the signal must be delayed to compensate for the group delay. A special feature of the ES411.1 is the compensation of the group delay within the module. The group delays of the analog anti-aliasing filter and the configu- rable digital filter are taken into consideration in this process.
  • Page 24 Hardware Description ETAS Digital Filter Configuration Recommendations The -3 dB cutoff frequency of the digital filter system of the ES411.1 can be configured in the application program. To avoid aliasing effects, be sure to observe recommendations for the configura- tion of the filter depending on the selected INCA sampling rate. The following table contains the relevant notes.

  • Page 25: Galvanically Isolation

    ETAS Hardware Description Fig. 4-5 ES411.1 Filter B: f = 200 Hz (with compensation of the group C,FIR delay) Fig. 4-4 and Fig. 4-5 show the relevant signal trace - in the upper part of the figure without a filter, in the lower part of the figures with a filter and without or with group delay compensation respectively.

  • Page 26: Maximum Input And Common-Mode Voltages

    ) = 60 V CMxy CMyz 10 V + 5 V + 10 V + 15 V + max (U ) = 60 V CMyz max (U ) = 60 V - 40 V = 20 V CMyz ES411.1 - User’s Guide...

  • Page 27: Sensor Supply

    Hardware Description 4.3.4 Sensor Supply Every sensor that can be switched to the ES411.1 has an individual sensor supply voltage which can be set separately. The cable connected to the sensor port of the ES411.1 transfers both the sensor supply voltage and the sensor output voltage for the sensor. Additional cables or an additional external power supply for the sensor supply voltage are not required.
  • Page 28 Hardware Description ETAS ES411.1 - User’s Guide...

  • Page 29: Data Transfer

    Message Format “XCP on UDP” (Schematic) Using the UDP/IP standard for data transfer makes it possible to connect the modules directly to a PC, a router or a switch. In XCP communication, the PC has the master function. ES411.1 - User’s Guide...

  • Page 30: Realization

    The communication protocol used by the ES400 family makes it possible for third-party suppliers to use the communication protocol for their own, non- ETAS applications once the modules have been configured with the „ES4xx Configuration Tool from ES4xx_DRV_SW“ . 4.4.2...
  • Page 31 IEEE1588 (Precision Time Protocol). The modules add the time stamp to the Ethernet data package for every measure date. The combination of time stamp synchronization, full duplex and time slice proce- dure results in a very high reference data rate of the modules. ES411.1 - User’s Guide...

  • Page 32: Examples

    4.4.3 Examples Example 1 Fig. 4-9 on page 32 shows an example of an application with three concatenated ES400 modules with the same acquisition rates. The transfer scheme for this configuration is shown in Fig. 4-10 on page 32. M ODULE 1 M ODULE 2 M ODULE 3 Cont rol variables...

  • Page 33: Fig. 4-12 Transfer Scheme For Example 2 (Simplified, Not True To Scale)

    Example 2 Fig. 4-11 on page 33 shows an example in which three modules with different acquisition rates are linked to each other. The transfer scheme for this configuration is shown in Fig. 4-12 on page 33. M ODULE 1 M ODULE 2 M ODULE 3 Cont rol variables...
  • Page 34 ETAS ES411.1 - User’s Guide...

  • Page 35: Power Supply

    ES400 modules with supply voltages between 5 V and 50 V DC over the entire temperature range. With the power supply management of the ES411.1, you can use an automatic power-saving feature (“Standby”) as well as a “Wake Up” function via the Ether- net interface.
  • Page 36 ETAS Example 1: For module chains which are equipped exclusively with ES411.1 modules, ETAS recommends the use of Y boost cables if the length of the mod- ule chain • is longer than 16 modules (without sensor feeding) or • is longer than 10 modules (with sensor feeding).

  • Page 37: Configuration

    ETAS Configuration The configuration of the ES411.1 is performed entirely via the GUI within INCA. The configuration of the individual channels is saved either in INCA or in the individual ES400 modules. In the first case, you can prepare settings for specific measure tasks, e.g.
  • Page 38 ETAS ES411.1 - User’s Guide...

  • Page 39: Getting Started

    CAUTION! Potential equalization in the vehicle over the shield of the Ethernet connecting cables of modules may occur! Mount the modules only to components with the same electrical potential or insulate the modules from the components. ES411.1 - User’s Guide...

  • Page 40: Guarantee Of Features As Defined By Ip67

    Fig. 5-1 Position of the Pressure Balance Element Standing liquids or liquids which do not flow away from the pressure balance element can permanently damage the membrane. The module then loses the features defined by IP67. ES411.1 - User’s Guide...

  • Page 41: Assembly

    (see Fig. 5-3 on page 41) on the right-hand side of the mod- ule. Fig. 5-4 Unscrewed Integrated Assembly Elements Openings for Cable Fasteners Every module base has two openings each on the right and left-hand side for attaching the modules to other components using cable fasteners. ES411.1 - User’s Guide...
  • Page 42 – on DIN rails with ES4xx angle brackets (right) or – on other components, • Attaching ES400 modules with cable fasteners: – on DIN rails with ES4xx angle brackets (left) or – on DIN rails with ES4xx angle brackets (right) or – on other components. ES411.1 - User’s Guide...

  • Page 43: Connecting Several Es400 Modules Mechanically

    • Position the modules so that their fronts are in a line. • Hold the two modules together firmly on their outer sides. Connecting the Modules To connect several ES400 modules, you require a 2 mm Allen key (minimum length 20 mm). ES411.1 - User’s Guide...
  • Page 44 To connect the ES400 module to other modules, you require a 2 mm Allen key (minimum length 20 mm). To connect to other modules: • Assemble other modules in accordance with the procedure described in the section 5.2.2 on page 43 . ES411.1 - User’s Guide...

  • Page 45: Attaching Es400 Modules To Other Components Using The Integrated

    The threads should be cut 8 mm deep. Note Use the drilling template. Connecting the Module to the Component To connect the ES400 module to the component, you require a 2 mm Allen key (minimum length 20 mm). ES411.1 - User’s Guide...
  • Page 46 To connect the ES400 module to other modules, you require a 2 mm Allen key (minimum length 20 mm). To connect to other modules: • Assemble other modules in accordance with the procedure described in the section 5.2.2 on page 43 . ES411.1 - User’s Guide...

  • Page 47: Fig. 5-8 Connecting To Other Modules

    ETAS Getting Started Fig. 5-8 Connecting to other modules ES411.1 - User’s Guide...

  • Page 48: Attaching Es400 Modules On Din Rails With The Integrated Assembly Elements

    2 mm hex key (minimum length 20 mm). Connecting the module and the ES4xx Angle Bracket (left): • Position the module to the right of the ES4xx angle bracket (left). • Align the integrated assembly elements of the mod- ule with the bores. ES411.1 - User’s Guide...
  • Page 49 DIN rail. • Engage the ES4xx angle bracket in the DIN rail by pressing on the ES4xx angle bracket or the module. • The module connected with the ES4xx angle bracket is fastened to the DIN rail. ES411.1 - User’s Guide...

  • Page 50: Attaching Es400 Modules To Other Components With Screws

    Use the drilling template to prepare the component (see Fig. 5-13 on page 55). Connecting the Module to the Component To connect the ES400 module to the component, you need two screws M3 and a screwdriver. ES411.1 - User’s Guide...
  • Page 51 (see section 5.2.2 on page 43). The module on the extreme right of the module block is connected to the other component like an individual module - using screws. ES411.1 - User’s Guide...

  • Page 52: Attaching Es400 Modules On Din Rails Using Screws

    The pin of the integrated assembly element can be screwed out of the module by approximately 6 mm. Connecting the Module with the ES4xx Angle Bracket (right) To connect the ES400 module with the ES4xx angle bracket (right) requires two M3 screws, two washers and a screwdriver. ES411.1 - User’s Guide...
  • Page 53 Connecting the ES4xx Angle Bracket (right) with the DIN rail • Place the ES4xx angle bracket onto the DIN rail. • Insert the hooks of the ES4xx angle bracket into the upper part of the DIN rail. ES411.1 - User’s Guide...

  • Page 54: Attaching Es400 Modules To Other Components Using Cable Fasten

    DIN rail. • Engage the ES4xx angle bracket in the DIN rail by pressing on the ES4xx angle bracket or the module. • The module connected with the ES4xx angle bracket is fastened to the DIN rail. ES411.1 - User’s Guide...

  • Page 55: Drilling Template

    ETAS Getting Started Drilling Template Fig. 5-13 Drilling Template ES411.1 - User’s Guide...
  • Page 56 Getting Started ETAS ES411.1 - User’s Guide...

  • Page 57: Applications

    ES411.1 with additional ETAS Modules for MC Applications The ETAS Daisy Chain concept enables a simple network architecture since only the ES411.1 or the first module of the module chain is connected with the PC or with the "ETH" port of the ES59x.1.

  • Page 58: Es411.1 With Additional Etas Modules (Rapid Prototyping Application)

    1 Type per Module Vehicle, Test Bench, Motor, ... Fig. 5-15 ES411.1 with ES910.3 and additional ETAS Modules for Rapid Proto- typing Applications The concept of the ES4xx/ES63x/ES93x product family to install the modules as close as possible to the sensors, the chain the modules with each other, and to connect only the first module of this chain with the ES910.3 or the RTPRO-PC,...

  • Page 59: Wiring Examples

    ETAS Wiring Examples 5.5.1 ES400 Modules with additional ETAS Modules (Measurement and Calibration) Power Supply Daisy Chain Modules Power Supply ES595 ES411/ ES415 Fig. 5-16 ES400 Modules with additional ETAS Modules (Measurement and Calibration) Cable in Function Order name Fig. 5-16...

  • Page 60: Es400 Modules With Additional Etas Modules And Drive Recorder (Measurement And Calibration)

    ETAS 5.5.2 ES400 Modules with additional ETAS Modules and Drive Recorder (Measurement and Calibration) Vehicle Drive Recorder 10/100 MBit/s Ethernet Power Supply Daisy Chain Modules Daisy Chain Measurement Modules ES411/ ES59x ES415 Lambda Ambient / Voltage Sensor Tempera- Frequency, Exhaust...

  • Page 61: Es400 Modules With Es910.3 (Rapid Prototyping)

    Power supply and Ethernet cable Daisy Chain CBEP430, modules CBEP4305 ETK connection cable CBM150 5, 6 CAN/LIN/FLX connection cable (CAN/LIN/FLX CBCFI100 combined) at ES910.3, at ES921.1 CAN connection cable (CAN only), at ES910.3, CBAC130, at ES921.1 CBAC140, CBAC150, CBCX130 ES411.1 - User’s Guide...

  • Page 62: Es400 Modules With Es910.3 And Drive Recorder (Rapid Prototyping)

    Function Order name Fig. 5-19 Ethernet adapter cable (100 Mbit/s) CBAE330 (con- nected to cable 2) Ethernet connection cable(1 Gbit/s) CBE230 (con- nected to cable 1) Power supply and Ethernet cable Daisy Chain CBEP430, modules CBEP4305 ES411.1 - User’s Guide...

  • Page 63: Es400 Modules With Etas Rtpro-Pc (Rapid Prototyping)

    ETAS 5.5.5 ES400 Modules with ETAS RTPRO-PC (Rapid Prototyping) Ethernet USB2 Power Supply Daisy Chain Modules ES581.3 ES411/ ES415 Fig. 5-20 ES400 Modules with ETAS RTPRO-PC (Rapid Prototyping) Cable in Function Order name Fig. 5-20 Power supply and Ethernet cable PC and Daisy...
  • Page 64 ETAS ES411.1 - User’s Guide...

  • Page 65: Wiring

    Accessories" on page 97. 5.6.1 “Sensor” Port You can use different cables to connect the sensors to the ES411.1: • CBAV411.1 sensor cable You can adapt the open connection of the CBAV411.1 sensor cable your- self to suit the specific connector system of your test set-up.

  • Page 66: Daisy Chain Ports ("In", "Out")

    To wire the first module with the PC and the power supply • Connect the combined Ethernet and power supply cable to the “IN” port of the ES411.1. • Connect the RJ-45 connector to the free Ethernet interface port of your PC.
  • Page 67 • Connect the combined Ethernet and power supply cable to the “OUT” port of the ES411.1 of the last module of the chain towards the PC. • Connect the combined Ethernet and power supply cable to the “IN”...
  • Page 68 ETAS ES411.1 - User’s Guide...

  • Page 69: Troubleshooting Problems

    Please observe the LEDs which provide information on the functions of the inter- face and the ES411.1 (see the chapter "Indicator" on page 19) to be able to judge the operational state of the ES411.1 as well as troubleshooting measures.

  • Page 70: Troubleshooting Es411.1 Problems

    4.5 on page 35. Is the hardware con- Check that the wiring is nected to the PC? undamaged. Are the modules in the Check that the wiring is module chain connected undamaged. correctly? ES411.1 - User’s Guide...
  • Page 71 PCMCIA network your laptop? card in your laptop. PCM- CIA cards with an 8- or 16-bit data bus are not suitable. Only use PCM- CIA cards with a 32-bit data bus, mini-PCI or ExpressCards. ES411.1 - User’s Guide...
  • Page 72 Reload the measure con- figuration. If the LED continues to show red, send the mod- ule to ETAS for repair. The firmware of one or Is the module to be Update the firmware of more modules cannot be...

  • Page 73: Problems And Solutions

    Windows 2000 and XP systems. Network security policies, however, may request the APIPA mechanism to be disabled. In this case, you cannot use a network adapter which is configured for DHCP to access ETAS hardware. The ETAS Net- work Manager displays a warning message.
  • Page 74 If you use more than one PC or notebook for accessing the same ETAS hardware, the network adapters used must be configured to use the same logical network. If this is not possible, it is necessary to switch the ETAS hardware off and on again between different sessions (repowering).
  • Page 75 Cause: Automatic disruption of network connection It is possible after a certain period of time without data traffic that the network card automatically interrupts the Ethernet connection. This can be prevented by setting the registry key autodisconnect. ES411.1 - User’s Guide...

  • Page 76: Personal Firewall Blocks Communication

    Ethernet hardware at all, although the configuration parameters are correct. Some actions in ETAS products can lead to problems if the firewall is not properly parameterized, e.g. when opening the experiment environment in ASCET or for the hardware search by INCA or HSP.
  • Page 77 The firewall no longer blocks the ETAS product (here: ASCET). The setting is retained after a restart of the product or the PC. Instead of waiting for the "Windows Security Warning", you can enable ETAS products in advance. Enabling ETAS products in the firewall control: •...
  • Page 78 This tab lists the exceptions that are not blocked by the firewall. Use the button Program or Edit to add new programs or to edit existing ones. • Ensure that the ETAS products and services to be used are correctly configured exceptions. ES411.1 - User’s Guide...
  • Page 79 A correct operation of the product is not possible since the database file as well as various *.ini files are modified during the work. The ETAS software must be installed by an administrator in any case. It is recom- mended that the administrator ensure that the ETAS product or the processes are added to the list of selected exceptions of the Windows Firewall after the instal- lation.
  • Page 80 • Close the window with OK. An administrator must select the product on the "Exceptions" tab of the "Windows Firewall" win- dow to avoid future problems during the hardware access with the corresponding ETAS product. ES411.1 - User’s Guide...

  • Page 81: Technical Data

    Connection of sensor cable SN: 1234567 Serial number (seven-digit) Vx.y.z Hardware version of the product F 00K 123 456 Ordering number of the product, see chapter 9.1 on page 131 Operating voltage range (DC), Power consumption ES411.1 - User’s Guide...

  • Page 82: Standards And Norms

    Acceleration: 500 m/s², Shock duration: 6 ms, Shocks per direction and axis: 10, Units under test: active ISO 16750-3, Sec. 4.3 Drop test Number of drops: 2, Height: 1 m, Surface: concrete, steel Units under test: passive ES411.1 - User’s Guide...
  • Page 83 DIN 5596-1 Stone impact IPX7 Protection class test: Protection class IP67 EN61000-4-2 Immunity ESD EN61000-4-3 Immunity radiated RF EN61000-4-4 Immunity EFT/B EN61000-4-5 Immunity surge EN61000-4-6 Immunity conducted RF DIN EN 55022 B Emission radiation/ radio interference voltage ES411.1 - User’s Guide...

  • Page 84: Environmental Conditions

    7.1.4 Maintenance the Product Do not open or change the module! Works on the module housing may be exe- cuted only by qualified technical personnel. Send defect modules to ETAS. 7.1.5 Cleaning the product We recommend to clean the product with a dry cloth.

  • Page 85: Rohs Conformity

    The user is obligated to separate the waste equipment and to provide it to the WEEE return system for reuse. The WEEE Directive applies to all ETAS devices, but not to external cables or bat- teries. Additional information about the recycling program of ETAS GmbH is available from the ETAS sales and service locations (see chapter 10 on page 137).

  • Page 86: Declarable Substances

    Some products from ETAS GmbH (e.g. modules, boards, cables) use components with substances that are subject to declaration in accordance with the REACH regulation (EU) no.1907/2006. Detailed information is located in the ETAS download center in the customer information "REACH Declaration" (www.etas.com/Reach). This information is continuously being updated.

  • Page 87: Software

    ETAS Technical Data 7.7.2 Software To configure the ES411.1 and for control and data acquisition, you need soft- ware in the following versions: • INCA V6.0 and higher • ES4xx Configuration Tool V1.0.5 and higher from ES4xx_DRV_SW (stand- alone operation) •...

  • Page 88: Electrical Data

    • "Sensor Inputs" on page 90 • "Signal Processing" on page 92.. Note ETAS guarantees measurement accuracy of the ES411.1 for one year. Please use our calibration service (see section 4.9 on page 37)! Note Unless otherwise specified, all data applies at 25 °C.

  • Page 89: Power Supply

    Outputs (plus) short-circuit proof against ground and up to 26 V over- voltage. Ground connected to operating volt- age ground and protected by a fuse. Diagnostics Short-circuit detection per channel; overload conditions reduce the output voltage ES411.1 - User’s Guide...

  • Page 90: Sensor Inputs

    -1 V to +1 V -10 V to +10 V -60 V to +60 V Maximum input voltage Input-to-input: 60 V DC / 30 V AC Input-to-ground of voltage supply or housing: 60 V DC / 30 V AC ES411.1 - User’s Guide...
  • Page 91 Input impedance Measurement ranges ±0.1 V, ±1V: > 10 M || < 300 pF Measurement ranges ±10 V, ±60 V: > 2 M || < 400 pF Module not powered: > 2 M || < 400 pF ES411.1 - User’s Guide...

  • Page 92: Signal Processing

    0.4 Hz 0.2 Hz 5 Hz 200 ms 2 Hz 0.8 Hz 0.4 Hz 0.2 Hz 2 Hz 500 ms 0.8 Hz 0.4 Hz 0.2 Hz 1 Hz 0.4 Hz 0.2 Hz 0.5 Hz 0.2 Hz ES411.1 - User’s Guide...

  • Page 93: Pin Assignment

    • "“IN” Connector" on page 93 • "“OUT” Connector" on page 94 • "“Sensor” Connector" on page 95 Note All connectors are shown with a view of the front of the ES411.1. All shields are at case potential. 7.9.1 “IN” Connector Fig.

  • Page 94: Out" Connector

    ETAS 7.9.2 “OUT” Connector Fig. 7-3 “OUT” Connector Signal Meaning UBatt Operating voltage UBatt Operating voltage Ground Ground Received data, plus Send data, minus Received data, minus Ground Ground Send data, plus ES411.1 - User’s Guide...

  • Page 95: Sensor" Connector

    Sensor channel 1, input plus CH2 In- Sensor channel 2, input minus CH2 TEDS+ Sensor channel 2, TEDS+ CH3 TEDS+ Sensor channel 3, TEDS+ TEDS+ Cable, TEDS+ CH4 TEDS+ Sensor channel 4, TEDS+ CH1 TEDS+ Sensor channel 1, TEDS+ ES411.1 - User’s Guide...
  • Page 96 Sensor channel 1, input - CH1 TEDS- Sensor channel 1, TEDS- CH2 TEDS- Sensor channel 2, TEDS- CH3 TEDS- Sensor channel 3, TEDS- CH4 TEDS- Sensor channel 4, TEDS- TEDS- Cable, TEDS- *): connected with operating voltage ground ES411.1 - User’s Guide...

  • Page 97: Cables And Accessories

    • "Measurement Probes and Cables" on page 119 • "Protective Caps" on page 127 • "Angle brackets" on page 129. Note Only use ETAS cables at the interfaces of the module. Adhere to the maximum cable lengths! ES411.1 - User’s Guide...
  • Page 98 Cables and Accessories ETAS ES411.1 - User’s Guide...

  • Page 99: Combined Ethernet And Power Supply Cable

    The connection to power outlets is not allowed! To prevent an inadvertent insertion in power outlets, ETAS recom- mends to equip the combined ethernet and power supply cables with safety banana plugs in areas with power outlets.

  • Page 100: Cbep410.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP410.1-3 F 00K 104 927 ES411.1 - User’s Guide...

  • Page 101: Cbep4105.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP4105.1-3 F 00K 110 026 ES411.1 - User’s Guide...

  • Page 102: Cbep415.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP415.1-5 F 00K 105 680 ES411.1 - User’s Guide...

  • Page 103: Cbep4155.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP4155.1-5 F 00K 110 027 ES411.1 - User’s Guide...

  • Page 104: Cbep420.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP420.1-3 F 00K 105 292 ES411.1 - User’s Guide...

  • Page 105: Cbep4205.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP4205.1-3 F 00K 110 041 ES411.1 - User’s Guide...

  • Page 106: Cbep425.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP425.1-3 F 00K 105 972 ES411.1 - User’s Guide...

  • Page 107: Cbep4255.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP4255.1-3 F 00K 110 029 ES411.1 - User’s Guide...

  • Page 108: Cbep430.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP430.1-0m5 0.5 m F 00K 104 928 ES411.1 - User’s Guide...

  • Page 109: Cbep4305.1 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBEP4305.1-0m5 0.5 m F 00K 110 030 ES411.1 - User’s Guide...
  • Page 110 ETAS ES411.1 - User’s Guide...

  • Page 111: Ethernet Cable

    This chapter contains information on the following cables: • "CBE400.2 Cable" on page 112 • "CBE401.1 Cable" on page 112 • "CBE430.1 Cable" on page 113 • "CBE431.1 Cable" on page 113 • "CBEX400.1 Cable" on page 114 • "ES4xx_BRIDGE" on page 114. ES411.1 - User’s Guide...

  • Page 112: Cbe400.2 Cable

    (MINI flat automotive fuse, quick-response, 3 A, 58 V). Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBE401.1-0m5 0.5 m F 00K 106 128 ES411.1 - User’s Guide...

  • Page 113: Cbe430.1 Cable

    Robust, waterproof and dust-proof (IP67). Temperature rated for: -40 °C to +125 °C/ -40 °F to +257 °F Product Length Order number CBE431.1-0m14 0.14 m F 00K 105 676 CBE431.1-0m30 0.30 m F 00K 105 685 ES411.1 - User’s Guide...

  • Page 114: Cbex400.1 Cable

    Product Length Order number CBEX400.1-3 F 00K 105 294 8.2.6 ES4xx_BRIDGE Fig. 8-16 ES4xx Bridge Ethernet bridge connecting blocked ES400 modules. Facilitates very compact measurement setups. IP67 compliant. Product Order number ES4xx_BRIDGE F 00K 105 684 ES411.1 - User’s Guide...

  • Page 115: Cable For The Connection "Sensor

    Temperature rated for: -40 °C to +125 °C Product Length Order number CBAV400.1-0m3 0.3 m F 00K 104 916 ES411.1 - User’s Guide...

  • Page 116: Cbav411.1 Cable

    You can customize the open connection of sensor cable CBAV411.1 and adapt it to the specific plug connector system of your measuring setup. Temperature rated for: -40 °C to +125 °C Product Length Order number CBAV411.1-2 F 00K 104 918 ES411.1 - User’s Guide...

  • Page 117: Cbav413.1 Cable

    Temperature rated for: -40 °C bis +125 °C Product Length Order number CBAV413.1-0m3 0.3 m F 00K 105 682 ES411.1 - User’s Guide...
  • Page 118 ETAS ES411.1 - User’s Guide...

  • Page 119: Measurement Probes And Cables

    Fig. 8-22 CBN400.1 Isolating Measurement Probe The CBN400.1 Isolating Measurement Probe for use with the ES411.1/ ES411.1 module offers four input channels for voltages up to +/-1000 V DC, a separate signal conditioning for each channel with voltage reduction and isolation (max.

  • Page 120: Cbn41X.1 Current Probe

    The CBN41x.1 Current Probe consists of four identical active current measuring channels that are integrated in a splitter cable and designed for the combined use with the ES411.1 / ES411.1 A/D module. Application area: Measuring high currents Temperature rated for: -40 to +85°C...
  • Page 121 Note For additional information, see the user's guide of the product. Product Length Order number CBN410.1-0m5 0.5 m F 00K 107 722 CBN411.1-0m5 0.5 m F 00K 107 723 CBN413.1-0m5 0.5 m F 00K 107 724 ES411.1 - User’s Guide...

  • Page 122: Cbn42X.1 Sensor Cable

    The CBN42x.1 Sensor Cable Providing Bipolar Sensor Supply consists of four identical active current measuring channels that are integrated in a splitter cable and designed for the combined use with the ES411.1 / ES411.1 A/D module. Application area: potential-free measuring of high currents with current trans- formers from LEM (series HTR) or comparable current transformers and with other sensors with bipolar supply voltage.
  • Page 123 ETAS Note For additional information, see the user's guide of the product. Product Length Order number CBN420.1-2m F 00K 107 564 CBN421.1-2m F 00K 107 565 CBN422.1-2m F 00K 107 566 ES411.1 - User’s Guide...

  • Page 124: Cbn43X.1 Temperature Sensor Connection Cable

    Cable consists of four identical active current measuring channels that are integrated in a splitter cable and designed for the combined use with the ES411.1 / ES411.1 A/D module. Application area: precise measuring of temperatures with platinum temperature sensors Product variants / designs: •...
  • Page 125 ETAS Product Length Order number CBN430.1-2m F 00K 107 725 CBN431.1-2m F 00K 107 726 CBN432.1-2m F 00K 107 361 CBN433.1-2m F 00K 107 727 CBN434.1-2m F 00K 107 729 ES411.1 - User’s Guide...
  • Page 126 ETAS ES411.1 - User’s Guide...

  • Page 127: Protective Caps

    ETAS Protective Caps The connections "IN" and "OUT" of the ES411.1 can be protected with different protective caps according to the operating conditions. 8.5.1 Protective Caps supplied The "IN" and "OUT" ports of the ES4xx are covered with simple dust and trans- port caps on delivery.

  • Page 128: Cap Cap_Souriau_8Sta

    ETAS 8.5.4 Cap CAP_SOURIAU_8STA Fig. 8-34 Cap CAP_SOURIAU_8STA The cap CAP_SOURIAU_8STA protects the "Sensor" port against water and dirt. Product Order number CAP_SOURIAU_8STA F 00K 105 303 ES411.1 - User’s Guide...

  • Page 129: Angle Brackets

    Angle Bracket for mounting ES4xx modules to a DIN rail 35 x 7.5 (EN 60715 TH35). Stainless steel V2A. For mounting on right side of an ES4xx module. Product Order number Angle bracket right F 00K 107 176 ES411.1 - User’s Guide...
  • Page 130 ETAS ES411.1 - User’s Guide...

  • Page 131: Ordering Information

    Short name Order number ES411.1 A/D Module (4-CH) ES411.1 F 00K 104 485 Scope of supply ES411.1 Micro A/D Measurement Module, CDROM ES4xx_DRV_SW_CD (drivers for ES4xx and documentation), List "Content of this Package“, ES4xx Safety Advice, China-RoHS-leaflet_Compact_green_cn, Calibration-Certification ES400 Set...

  • Page 132: Accessories

    Ordering Information ETAS Accessories 9.3.1 Cables Note If you require customized cables, please contact your ETAS contact partner or sales.de@etas.com. Cables for the connectors "IN" and "OUT" Ethernet cable: Order name Short name Order number Ethernet Chain Connection Cable, Lemo 1B CBE400.2-3...
  • Page 133 F 00K 110 030 ply Cable, Lemo 1B FGL - Lemo 1B FGA - Safety Banana (8fc-8mc-2mc), 0m5 Ethernet Bridge: Order name Short name Order number Bridge to connect two assembled ES4xx ES4xx_BRIDGE F 00K 105 684 Modules ES411.1 - User’s Guide...
  • Page 134 4 Channel, Souriau 4xopen wire, 2m CBN422.1 Sensor supply conditioning CBN422.1-2m F 00K 107 566 cable providing bipolar sensor supply volt- age, 4 Channel, Souriau 4xMolex 51191- 004, 2m ES411.1 - User’s Guide...

  • Page 135: Protective Caps

    ES4xx Angle Bracket left ES4xx_AB_L F 00K 107 175 ES4xx Angle Bracket right ES4xx_AB_R F 00K 107 176 9.3.4 Device Calibration Order name Short name Order number Calibration Service for ES411.1 K_ES411 F 00K 105 296 ES411.1 - User’s Guide...
  • Page 136 Ordering Information ETAS ES411.1 - User’s Guide...

  • Page 137: Etas Contact Addresses

    Germany WWW: www.etas.com ETAS Subsidiaries and Technical Support For details of your local sales office as well as your local technical support team and product hotlines, take a look at the ETAS website: ETAS subsidiaries WWW: www.etas.com/en/contact.php ETAS technical support WWW: www.etas.com/en/hotlines.php...
  • Page 138 ETAS Contact Addresses ETAS ES411.1 - User’s Guide...

  • Page 139: Figures

    Figures Fig. 3-1 Central and Decentral Sensor Cabling............15 Fig. 3-2 Front ......................18 Fig. 4-1 ES411.1 Housing ..................21 Fig. 4-2 Block Diagram .................... 22 Fig. 4-3 Signal Processing and Filters of a Sensor Channel........23 Fig. 4-4 Filter A: f = 200 Hz (without compensation of the group delay).....
  • Page 140 Openings for Cable Fasteners in ES400 Modules......... 54 Fig. 5-13 Drilling Template ..................55 Fig. 5-14 ES411.1 with additional ETAS Modules for MC Applications ....... 57 Fig. 5-15 ES411.1 with ES910.3 and additional ETAS Modules for Rapid Prototyping Applications....................58 Fig.
  • Page 141 ETAS Figures Fig. 8-33 Cap CAP_LEMO_1B_LC ................127 Fig. 8-34 Cap CAP_SOURIAU_8STA................. 128 Fig. 8-35 Angle bracket left ..................129 Fig. 8-36 Angle bracket right................... 129 ES411.1 - User’s Guide...
  • Page 142 Figures ETAS ES411.1 - User’s Guide...

  • Page 143: Index

    Cable Daisy chain topology 16 CBAV400.1 115 Data CBAV411.1 116 electrical 88 CBAV413.1 117 mechanical 84 CBE400.2 112 Data transfer 29 CBE401.1 112 Decentral wiring concept 16 CBE430.1 113 Device calibration 135 CBE431.1 113 Documentation 9 ES411.1 - User’s Guide...
  • Page 144 9 Measurement accuracy, adherence 88 Identification 7 Measurement error 91 Safety precautions 9 Mechanical data 84 Sampling rate 90 Module ID 29 Scope of supply 8 Multiple feeding 35 Sensor channels 23 Sensor power supply 89 ES411.1 - User’s Guide...
  • Page 145 Waste Electrical and Electronic Equip- ment - WEEE 85 Water 40 WEEE return system 85 Wiring 65 Wiring concepts 15 Wiring, Daisy Chain 66 Wiring, sensors 65 XCP 16 XCP protocol 29 Y boost cable 35 ES411.1 - User’s Guide...
  • Page 146 Index ETAS ES411.1 - User’s Guide...

Table of Contents

Save PDF
