Installation & User Guide
1.
Installation
1.1.
Preparation
Only qualified personnel may install the equipment, following the requirements listed in this document.
More detailed instruction can be found on www.heating.danfoss.com.
Note! This product is approved for ambient temperature between 5-55° C, but to ensure optimal conditions for
battery it is recommended to install Calculator at max. 45° C. Avoid installation stress from pipes and fittings.
Flush the system.
1.2.

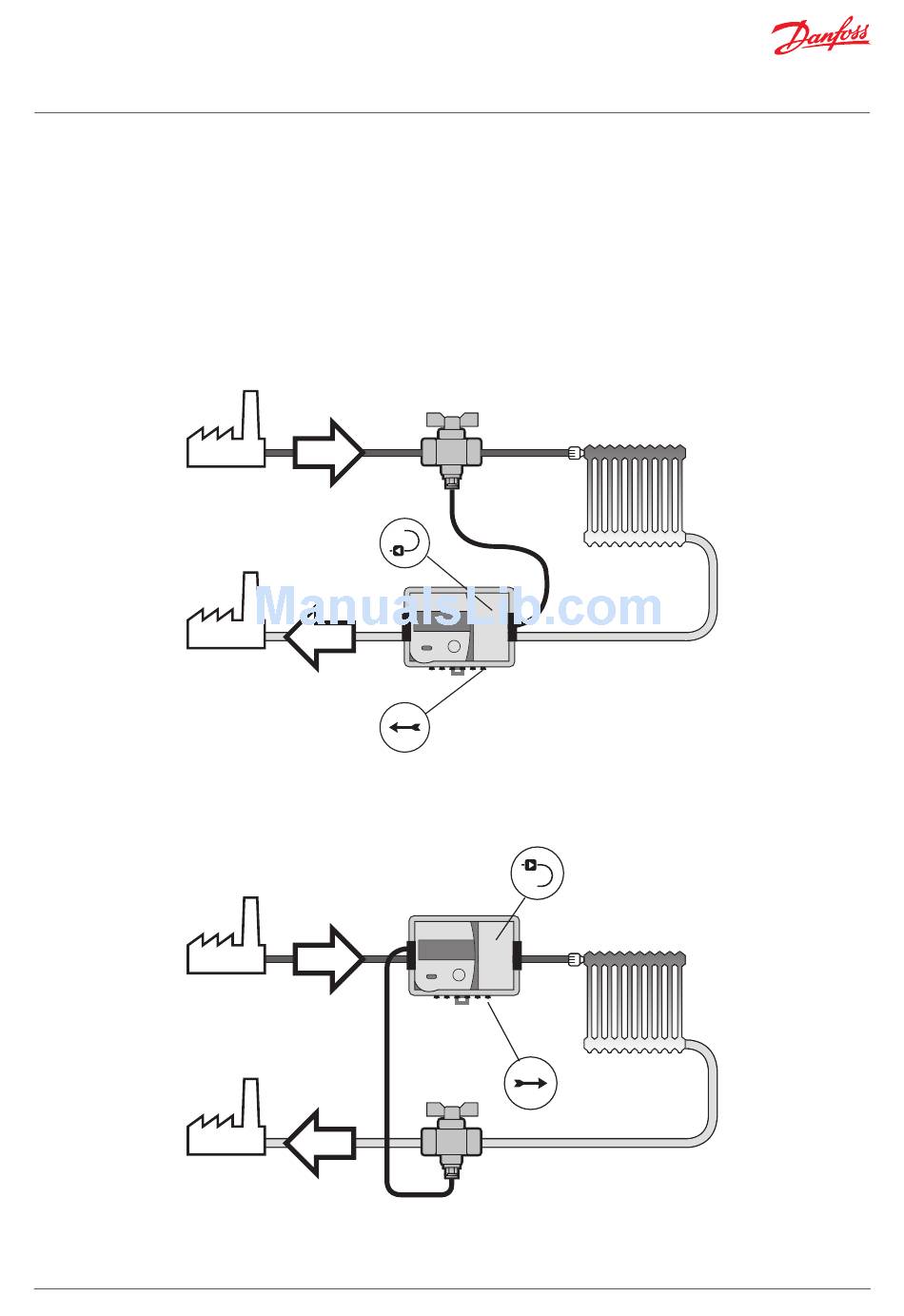

Identification of installation: Return/Supply pipe installation and flow direction
Return pipe installation
Supply pipe installation
VUIGJ202
SonoMeter 30
Flow direction
Flow direction
© Danfoss | Energy Meters | 2016.09 | 3
