Installation & User Guide
1.3.

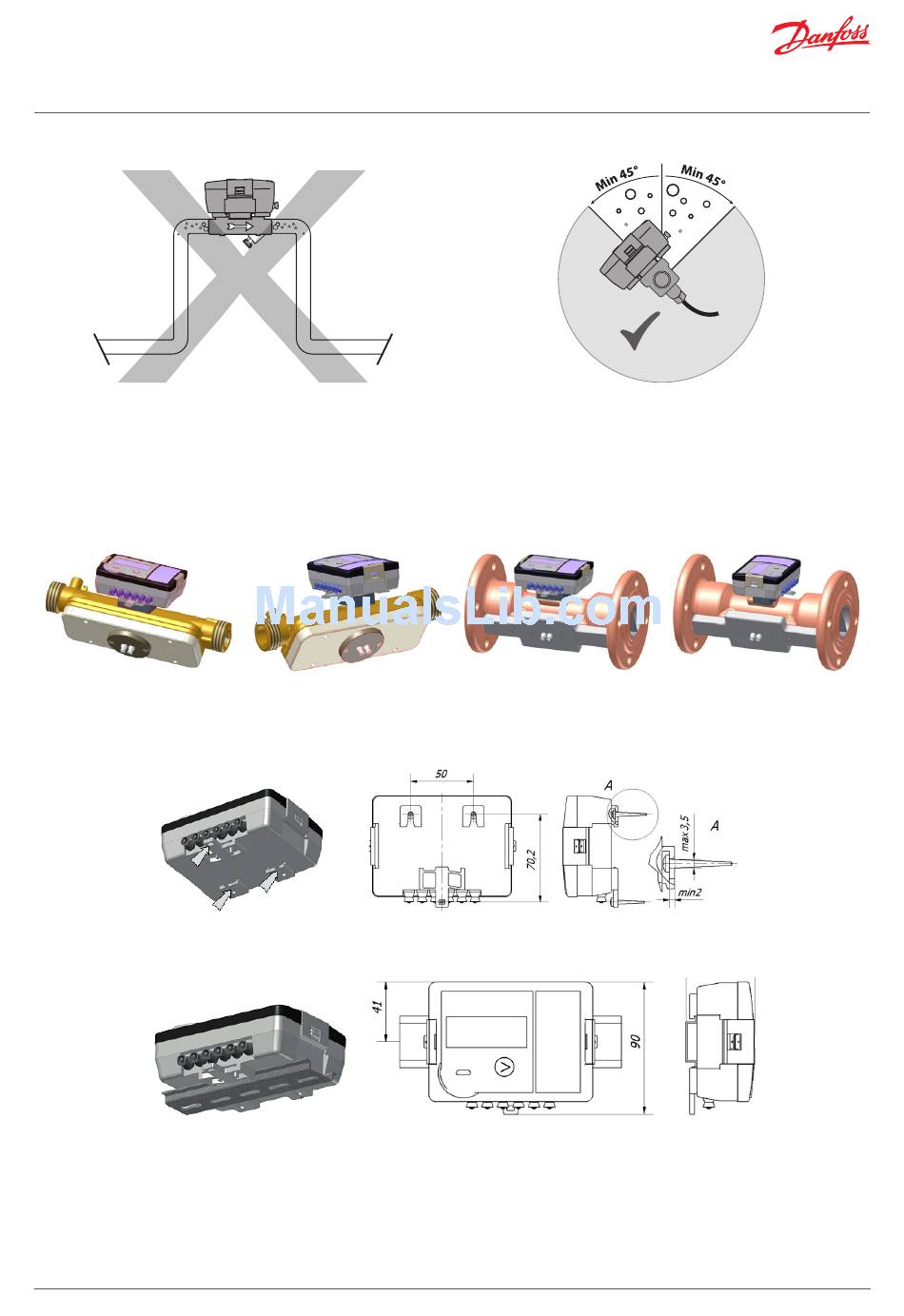

Mounting of flow sensor

Pipe position: No limitations but avoid positions
where air can be collected.
1.4.

Mounting and sealing of calculator

Direct mounting on ultrasonic flow sensor housing, turning every 90° (only when the temperature of the
flow does not exceed 90° C):
a) On the flow sensor with a thread connection

On the wall:

Panel mounting on standard DIN-rail:

4 | © Danfoss | Energy Meters | 2016.09
SonoMeter 30
Rotation in pipe axis: Flow sensor should be angled
in 45 to 315° to avoid air collection in flow sensor.
b) On the flow sensor with flange connection
VUIGJ202
