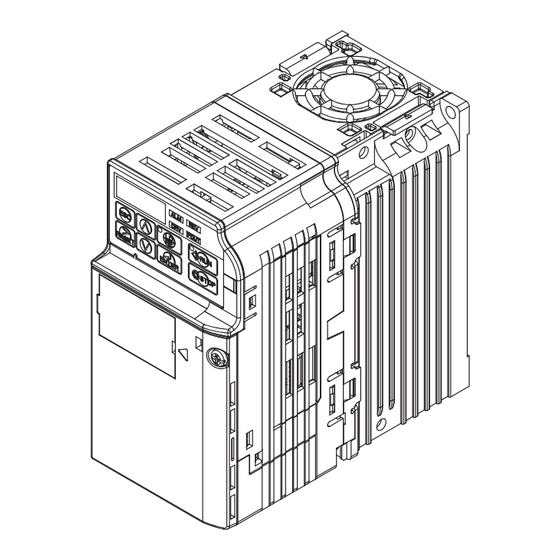

YASKAWA AC Drive J1000
Compact V/f Control Drive
Quick Start Guide
Type: CIMR-JC
Models: 200 V Class, Three-Phase Input: 0.1 to 5.5 kW
200 V Class, Single-Phase Input: 0.1 to 2.2 kW
400 V Class, Three-Phase Input: 0.37 to 5.5 kW
To properly use the product, read this manual thoroughly and retain for
easy reference, inspection, and maintenance. Ensure the end user receives
this manual.
MANUAL NO. TOEP C710606 27C

Advertisement

loading
Need help?

Need help?

Do you have a question about the J1000 CIMR-JC series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for YASKAWA J1000 CIMR-JC series

  • Page 1 YASKAWA AC Drive J1000 Compact V/f Control Drive Quick Start Guide Type: CIMR-JC Models: 200 V Class, Three-Phase Input: 0.1 to 5.5 kW 200 V Class, Single-Phase Input: 0.1 to 2.2 kW 400 V Class, Three-Phase Input: 0.37 to 5.5 kW To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance.
  • Page 2 YASKAWA. No patent liability is assumed with re- spect to the use of the information contained herein. Moreover, because YASKAWA is con- stantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.
  • Page 3: Table Of Contents

    7 TROUBLESHOOTING ......27 8 INSTRUCTIONS FOR UL AND CUL ....31 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 4: Safety Instructions And General Warnings

    YASKAWA Electric supplies component parts for use in a wide variety of industrial applications. The selection and application of YASKAWA products remain the responsibility of the equipment designer or end user. YASKAWA accepts no responsibility for the way its products are incorporated into the final system design. Under no circumstances should any YASKAWA product be incorporated into any product or design as the exclusive or sole safety control.
  • Page 5 Failure to comply could result in death or serious injury. YASKAWA is not responsible for any modification of the product made by the user. This product must not be modified. Do not touch any terminals before the capacitors have fully discharged.
  • Page 6 Never short the output circuits of the drive. Do not short the output circuits of the drive. Failure to comply could result in death or serious injury. EN 6 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 7 Tighten all terminal screws to the specified tightening torque. Loose electrical connections could result in death or serious injury by fire due to overheating of electrical connections. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 7...
  • Page 8 The drive is suitable for circuits capable of delivering not more than 100,000 RMS symmetrical Amperes, 240 Vac maximum (200 V Class) and 480 Vac maximum (400 V Class). EN 8 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 9 Do not modify the drive circuitry. Failure to comply could result in damage to the drive and will void warranty. YASKAWA is not responsible for modification of the product made by the user. This product must not be modified. Check all the wiring to ensure that all connections are correct after installing the drive and connecting other devices.
  • Page 10: Mechanical Installation

    10 Hz to 20 Hz at 9.8 m/s , 20 Hz to 55 Hz at 5.9 m/s Orientation Install the drive vertically to maintain maximum cooling effects. EN 10 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 11 38.5 99.5 2A0006 58.5 119.5 2A0010 120.5 2A0012 137.5 2A0020 134.5 4A0001 72.5 4A0002 90.5 4A0004 137.5 4A0005 145.5 4A0007 145.5 4A0009 145.5 4A0011 134.5 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 11...
  • Page 12: Electrical Installation

    (2 mA) frequency <7> reference. Multi-function Monitor programmable output shielded line twisted-pair shielded line control terminal main circuit terminal Figure 1 Drive Standard Connection Diagram EN 12 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 13 Use wires within the specification listed below. For safe wiring use solid wires or flexible wires with ferrules. The stripping length or ferrule length should be 6 mm. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 13...
  • Page 14 Ground shield at Ground shield at motor side motor side Figure 2 EMC Standards Compliant Wiring of Single- and Three Phase Units EN 14 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 15 • Always make sure the ground impedance is conformed to the requirements of local safety and installation regulations. • Never share the ground wire with other devices such as welding machines, etc. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 15...
  • Page 16 Switches analog input A1 between voltage and current input. Used to select sourcing (PNP)/sinking (NPN, default) mode for the digital inputs (PNP requires external 24 Vdc power supply). EN 16 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 17 250 Vac, 10 mA to 1 A Digital output common Output Analog monitor output 0 to 10 Vdc (2 mA or less), Resolution: 1/256 (8 bit) Monitor Output Monitor common YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 17...
  • Page 18: Keypad Operation

    On: The output frequency is displayed on the data screen. FOUT LED Light FOUT Off: Anything else than the output frequency is displayed on the data screen. EN 18 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 19 In the Parameter Setting Mode all Parameter Setting Mode drive parameters can be set up. <1> Switching to reverse: The LED is lit when LOCAL is selected YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 19...
  • Page 20: Start Up

    Fine tune and set application parameters (e.g. PID,...) if necessary. Final check the operation and verify the settings. Drive is ready to run the application EN 20 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 21 If the drive is operated in the REMOTE mode, make sure that the correct sources for the frequency reference and Run command are set in parameters b1-01/02 and that the drive is in the REMOTE mode. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 21...
  • Page 22 Analog input Apply the frequency reference signal to terminal A1. Serial Communications RS232C or RS422/485 Memobus communication Option Potentiometer Potentiometer Option Option EN 22 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 23 After taking the steps listed above, the drive should be ready to run the application and perform the basic functions. For details about more advanced setup refer to the technical manual. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 23...
  • Page 24: Parameter Table

    Constant torque applications Injection C6-01 b2-02 current as a percentage of the drive Duty 1:Normal Duty (ND) Braking rated current. Selection Variable torque application Current EN 24 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 25 Sets the motor overload protection Motor E2-02 Motor rated slip in hertz (Hz). L1-02 Overload time in min. Normally no change Rated Slip Prot. Time is necessary. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 25...
  • Page 26 (terminal S2 enabled) U1-10 1: Digital input 3 (terminal S3 enabled) 1: Digital input 4 (terminal S4 enabled) 1: Digital input 5 (terminal S5 enabled) EN 26 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 27: Troubleshooting

     simultaneously for longer than 500 ms. This the forward and reverse input are not set alarm stops a running motor. at the same time. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 27...
  • Page 28 The drive capacity is too small. • The overload capability is reduced at low Too much torque at low speed. speeds. Reduce the load or increase the drive size. EN 28 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 29 Drive capacity and value set to o2-04 do not Correct the value set to o2-04. match. oPE02 Parameters were set outside the allowable setting Set parameters to the proper values. range. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 29...
  • Page 30 • b1-02 = 2 • Check the V/f pattern settings. oPE10 The V/f pattern setting is incorrect. • Refer to the instruction manual for more details. EN 30 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 31: Instructions For Ul And Cul

    1.2 to 1.5 (10.6 to 13.3) R5.5-5 2.0 to 2.5 (17.7 to 22.1) 3.5/5.5 (12/10) R5.5-6 5.4 to 6.0 (47.8 to 53.1) R5.5-8 9.9 to 11.0 (87.6 to 97.4) YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 31...
  • Page 32 BA0006 A6T40 FWH-80B BA0010 A6T40 FWH-100B Three-Phase 200 V Class 2A0001 A6T3 FWH-25A14F 2A0002 A6T6 FWH-25A14F 2A0004 A6T15 FWH-25A14F 2A0006 A6T20 FWH-25A14F 2A0010 A6T25 FWH-70B EN 32 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 33 Set parameter E2-01 (motor rated current) to the appropriate value to enable motor overload protection. The internal motor overload protection is UL listed and in accordance with the NEC and CEC. YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 33...
  • Page 34 Setting L1-01 = 2 selects a motor capable of cooling itself over a 10:1 speed range when running at 100% load. The oL1 function derates the motor when it is running at 1/10 or less of its rated speed. EN 34 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 35 Figure 2 Operation time (minutes) Cold start Hot start Motor current (%) E2-01 = 100% motor current Figure 3 Motor Overload Protection Time YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 35...
  • Page 36 8 Instructions for UL and cUL EN 36 YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide...
  • Page 37 Addition: Normal/Heavy Duty Selection Chapter 5 (C6-01) Chapter 8 Addition: Instructions for UL and cUL June 2009 Back cover Revision: Address January 2008 – – First edition YASKAWA ELECTRIC TOEP C710606 27C - AC Drive J1000 - Quick Start Guide EN 37...
  • Page 38 E-mail: support@yaskawa.eu.com Internet: http://www.yaskawa.eu.com U.S.A. YASKAWA AMERICA, INC. 2121 Norman Drive South, Waukegan, IL 60085, U.S.A. Phone: +1 800 YASKAWA (927-5292) or +1 847 887 7000 Fax: +1 847 887 7310 Internet: http://www.yaskawa.com JAPAN YASKAWA ELECTRIC CORPORATION New Pier Takeshiba South Tower, 1-16-1, Kaigan, Minatoku, Tokyo, 105-6891, Japan...
