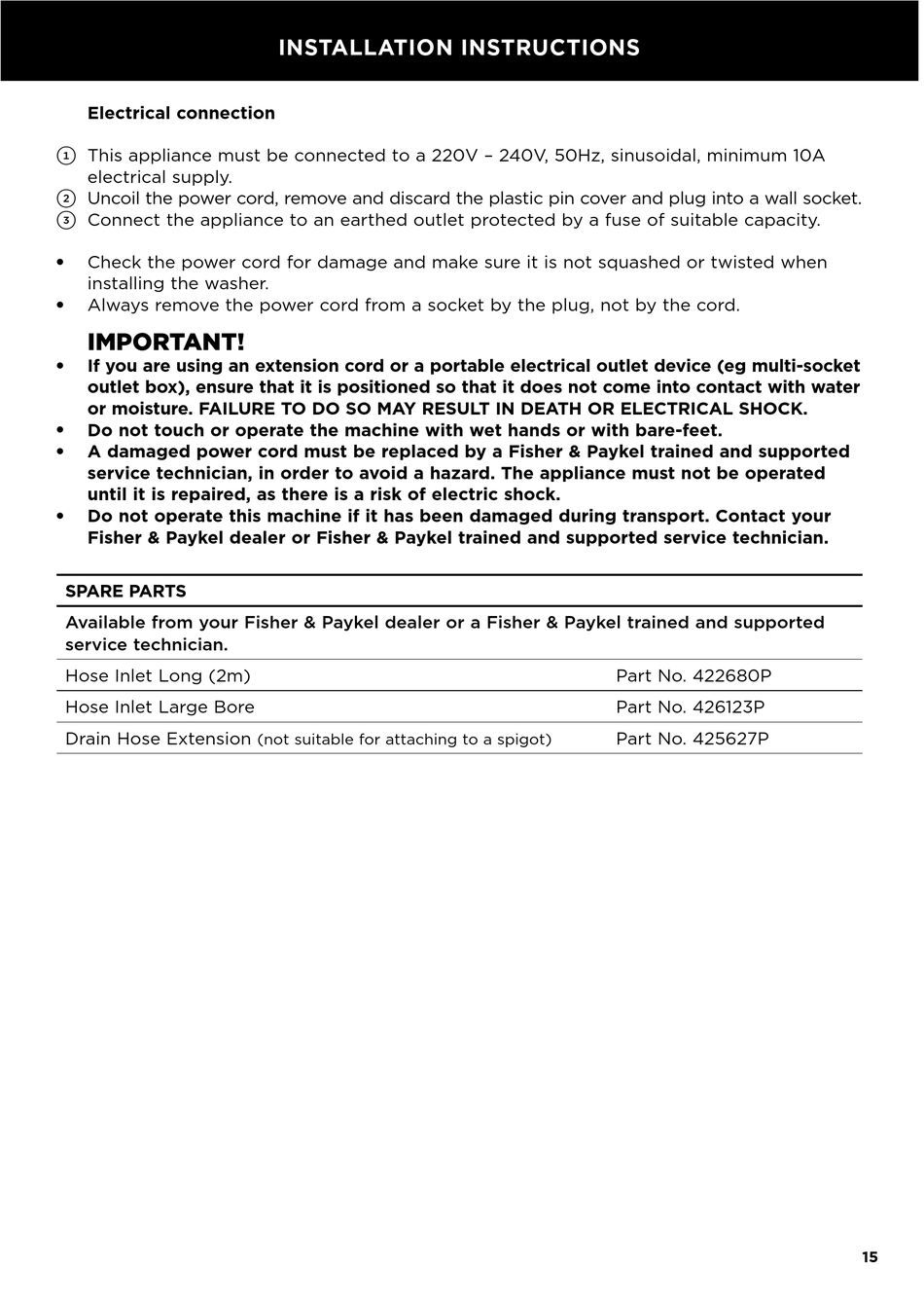

Electrical connection
This appliance must be connected to a 220V – 240V, 50Hz, sinusoidal, minimum 10A
1
electrical supply.
Uncoil the power cord, remove and discard the plastic pin cover and plug into a wall socket.
2
Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
3
Check the power cord for damage and make sure it is not squashed or twisted when
● ●
installing the washer.
Always remove the power cord from a socket by the plug, not by the cord.
● ●
IMPORTANT!
If you are using an extension cord or a portable electrical outlet device (eg multi-socket
● ●
outlet box), ensure that it is positioned so that it does not come into contact with water
or moisture. FAILURE TO DO SO MAY RESULT IN DEATH OR ELECTRICAL SHOCK.
Do not touch or operate the machine with wet hands or with bare-feet.
● ●
A damaged power cord must be replaced by a Fisher & Paykel trained and supported
● ●
service technician, in order to avoid a hazard. The appliance must not be operated
until it is repaired, as there is a risk of electric shock.
Do not operate this machine if it has been damaged during transport. Contact your
● ●
Fisher & Paykel dealer or Fisher & Paykel trained and supported service technician.
SPARE PARTS
Available from your Fisher & Paykel dealer or a Fisher & Paykel trained and supported
service technician.
Hose Inlet Long (2m)
Hose Inlet Large Bore
Drain Hose Extension
INSTALLATION INSTRUCTIONS
(not suitable for attaching to a spigot)
Part No. 422680P
Part No. 426123P
Part No. 425627P
15
