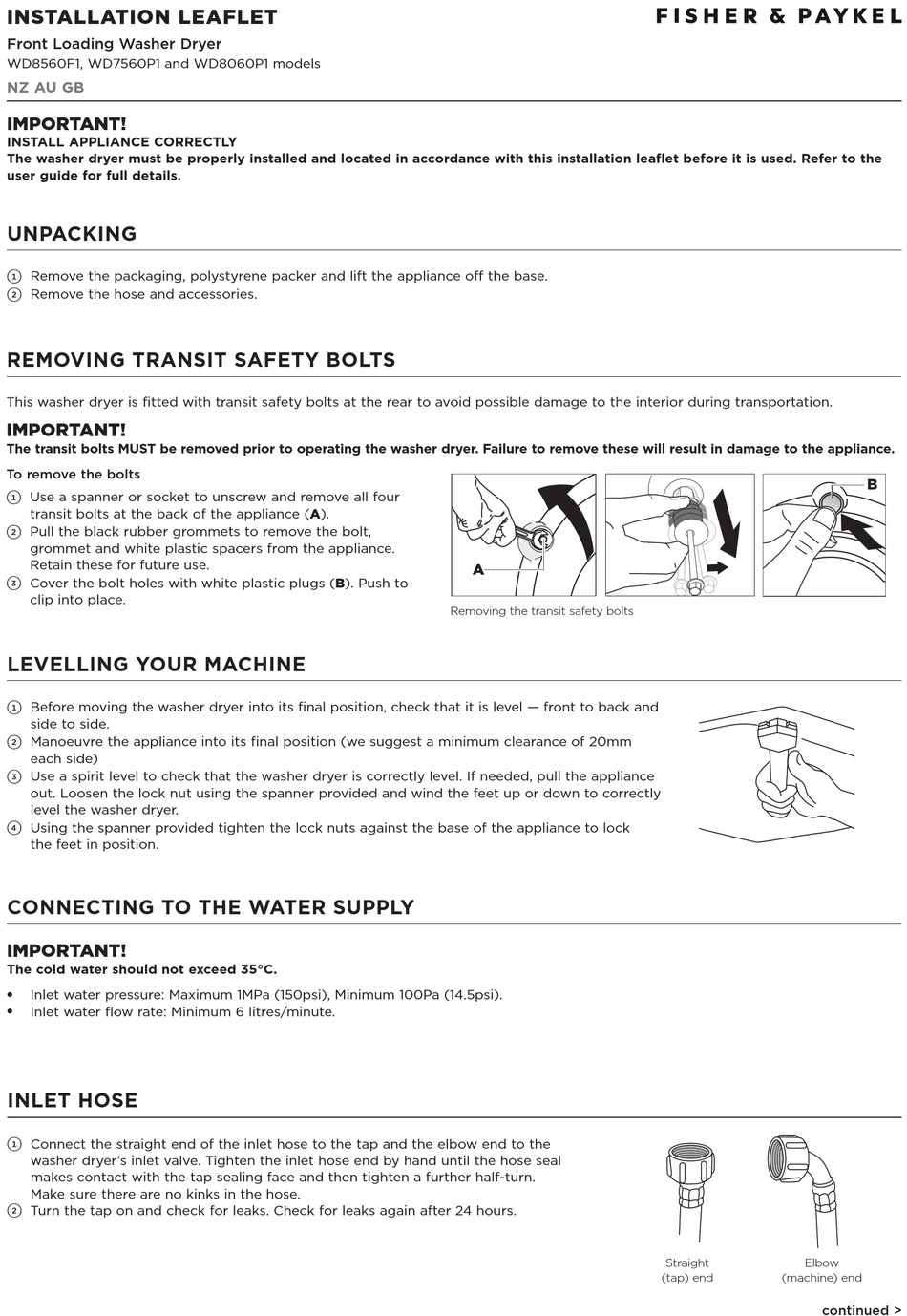

INSTALLATION LEAFLET
Front Loading Washer Dryer
WD8560F1, WD7560P1 and WD8060P1 models
NZ AU GB
IMPORTANT!
INSTALL APPLIANCE CORRECTLY
The washer dryer must be properly installed and located in accordance with this installation leaflet before it is used. Refer to the
user guide for full details.
UNPACKING
Remove the packaging, polystyrene packer and lift the appliance off the base.
1
Remove the hose and accessories.
2
REMOVING TRANSIT SAFETY BOLTS
This washer dryer is fitted with transit safety bolts at the rear to avoid possible damage to the interior during transportation.
IMPORTANT!
The transit bolts MUST be removed prior to operating the washer dryer. Failure to remove these will result in damage to the appliance.
To remove the bolts
Use a spanner or socket to unscrew and remove all four
1
transit bolts at the back of the appliance (A).
Pull the black rubber grommets to remove the bolt,
2
grommet and white plastic spacers from the appliance.
Retain these for future use.
Cover the bolt holes with white plastic plugs (B). Push to
3
clip into place.
LEVELLING YOUR MACHINE
Before moving the washer dryer into its final position, check that it is level — front to back and
1
side to side.
Manoeuvre the appliance into its final position (we suggest a minimum clearance of 20mm
2
each side)
Use a spirit level to check that the washer dryer is correctly level. If needed, pull the appliance
3
out. Loosen the lock nut using the spanner provided and wind the feet up or down to correctly
level the washer dryer.
Using the spanner provided tighten the lock nuts against the base of the appliance to lock
4
the feet in position.

CONNECTING TO THE WATER SUPPLY

IMPORTANT!
The cold water should not exceed 35°C.
Inlet water pressure: Maximum 1MPa (150psi), Minimum 100Pa (14.5psi).
● ●
Inlet water flow rate: Minimum 6 litres/minute.
● ●
INLET HOSE
Connect the straight end of the inlet hose to the tap and the elbow end to the
1
washer dryer's inlet valve. Tighten the inlet hose end by hand until the hose seal
makes contact with the tap sealing face and then tighten a further half-turn.
Make sure there are no kinks in the hose.
Turn the tap on and check for leaks. Check for leaks again after 24 hours.
2
A
Removing the transit safety bolts
Straight Elbow
(tap) end (machine) end
continued >
