stC B
oard
The Smart Touch Controller provides connections for a multitude of peripherals and accessory devices. The
Power Module offers 8 common bus terminals, 4 terminals (24VAC) and 3 terminals (24VDC) with a 3A maximum
draw. The touch-sensitive keypad and 32-character display connects to the STC with a waterproof ribbon cable.
For more information about STC Inputs and connections, refer to STC Inputs & Wiring on page 49. For more
information about the display programming, operator modes and keypad navigation, refer to Display & Menu
Options on page 35.
Smart Touch Controller:
Provides inputs for peripherals & accessories, 2 electro-
mechnical user relays (250VAC, 10A), one solid state user relay
(30VDC, 3A). For more information, refer to STC Inputs & Wiring
on page 49.
Common (COM) power
terminal strip
STC Display & Keypad:
Provides push button programming and
displays menu codes, faults, alerts & errors.
Refer to Display & Menu Options on page 35.
www.hysecurity.com
, p m
ower
Power Module

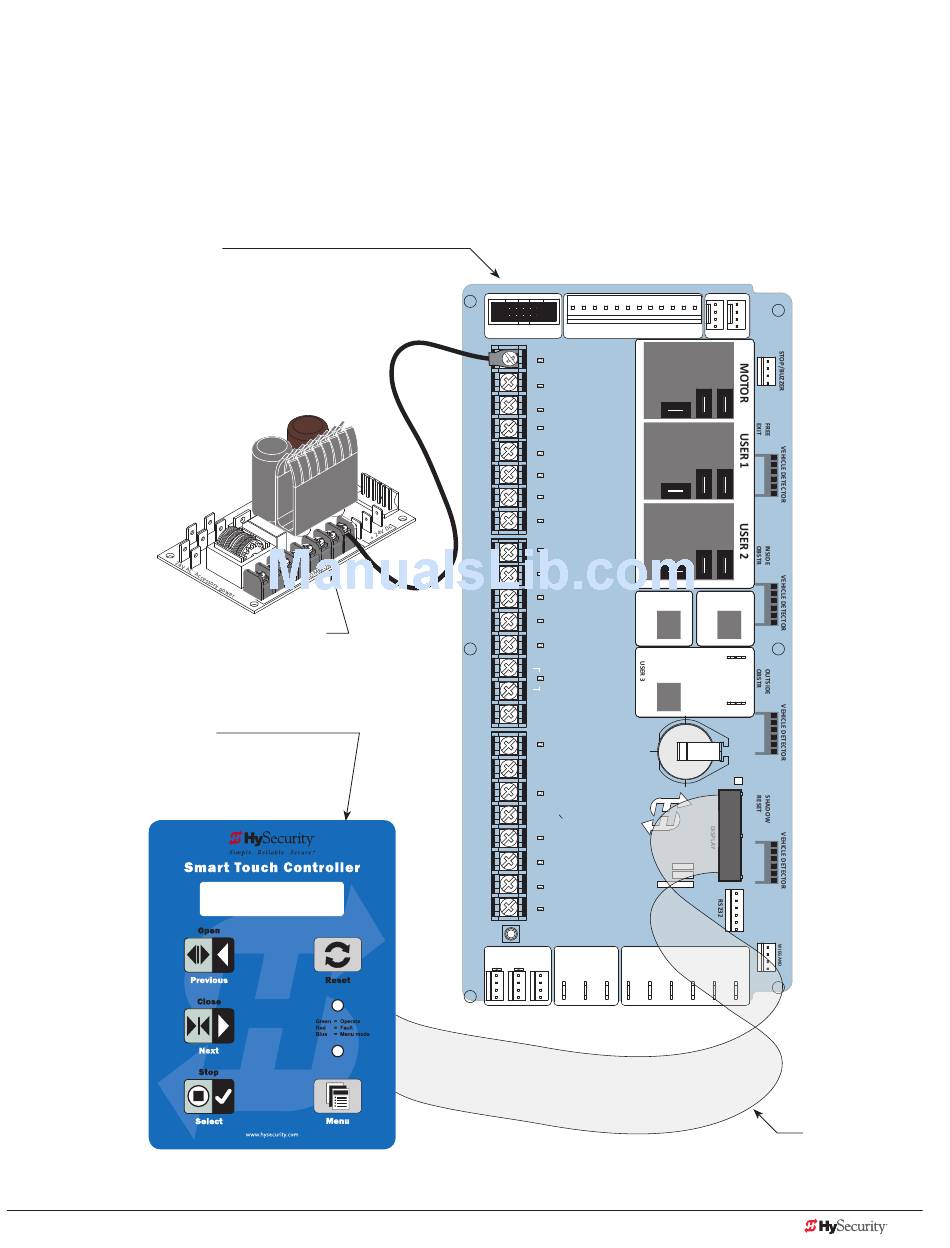

Control Panel Overview
odule and
DRIVE
1
STOP BUTTON
2
OPEN BUTTON
3
CLOSE BUTTON
REMOTE OPEN AND
4
RADIO CONTROL
5
OPEN/CLOSE
6
OPEN PARTIAL
INTERLOCK OPEN
7
TIME CLOCK OPEN
8
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
9
DISABLE CLOSE TIMER
10 INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
11
VEHICLE DETECTOR
SHADOW/RESET
12
VEHICLE DETECTOR
EDGE SENSOR
14
PHOTO EYE POWER
24 VOLTS COMMON
15
PHOTO EYE POWER
16 DO NOT USE
PHOTO EYE
17
OPEN DIRECTION
18
DO NOT USE
PHOTO EYE
19
CLOSE DIRECTION
20
DO NOT USE
CHARGER
21
AC LOSS
22
LOCK INTERLOCK
23
EMERG CLOSE
24
FIRE DEPT OPEN
Smart Touch Controller
LED
LIMIT DUAL GATE
RPM
COM
Smart Touch Controller
d
IsplaY
Power Connector
POWER RS485
COM
NO
STATUS
HySecurity
MX000585
VERSION
S/N
RADIO OPTIONS
A B COM OPEN +24V +24V EDGE COM
D0559 Rev. A
Ribbon cable
