- Page 1 StrongSlide ™ Installation Instructions...
-
Page 2: Table Of Contents
It is the responsibility of the system designer and/or installer to ensure any safety or operational issues have been addressed.* Assemble Anchor Supports ........................10 *Disclaimer: All gate installations using HySecurity vehicular gate operators must comply with UL325 and ASTM F2200 safety Locate Anchors ............................11 standards in addition to any local area codes and standards. -
Page 3: Full Assembly View

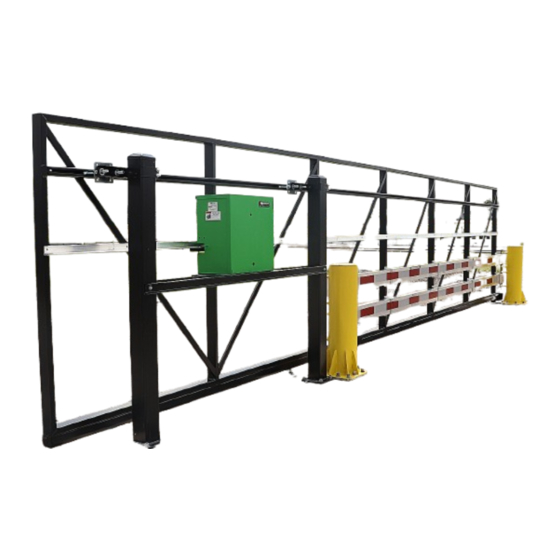

StrongSlide M50: Plan Site Design FULL ASSEMBLY VIEW: Note: Determine roadway width and plan for additional clearances to install StrongSlide. CLEAR Gate Weight OPEN ft (cm) inch (cm) inch (cm) lb (kg) 12 (366) 243 (617) 40.5 (103) 900 (408) -
Page 4: Prepare Foundation
StrongSlide M50: Prepare Foundation FOUNDATION PREPERATION ** StrongSlide-M50 tested at 24 ft clear opening per ASTM F2656-20. CLEAR FOUNDATOIN OPEN SPAN ' L ' ft (cm) inch (cm) inch (cm) 12 (366) 43.0 (109) 45.0 (114.5) 13 (396) 55.0 (140) 45.0 (114.5) -
Page 5: Assemble Rebar
StrongSlide M50: Assemble Rebar Note: Rebar and lumber not included. MX5672 Rev. B ©2023... - Page 6 StrongSlide M50: Assemble Rebar Note: Rebar and lumber not included. support.hysecurity.com...
-
Page 7: Install Rebar
StrongSlide M50: Install Rebar ASSEMBLY, SET AND ALIGN REBAR ITEM PART NUMBER DESCRIPTION QTY. CENTER REBAR SOIL REFER TO 'FOUNDATION PREPERATION' WITHIN BORE MX5311-01 REBAR CAGE, SSLIDE-M50, 8'X8'X36"D {WT. EACH = 218 lb (99 kg)} MX5311-02 REBAR CAGE, SSLIDE-M50, GATE POST... -
Page 8: Install Conduit In Rebar
StrongSlide M50: Install Conduit in Rebar ADD CONDUIT FOR PHOTO EYE, EDGE, OR SIGNAL LIGHT 12.7 ITEM PART NUMBER DESCRIPTION QTY. LOCATION MX5390-XX5 CONDUIT, 3/4", SCH.40 ARRESTOR TO EDGE 2.0 MIN MX5390-XX6 CONDUIT, 3/4", SCH.40 SPAN BETWEEN FOUNDATIONS MX5390-XX7 CONDUIT, 3/4", SCH.40 OPERATOR TO TAIL END POST 67.3... -
Page 9: Pre-Assemble Anchors
StrongSlide M50: Pre-Assemble Anchors ASSEMBLE ANCHOR TEMPLETE HARDWARE (MINIMAL HARDWARE FOR EASE OF INSTALLATION) 3/4" GATE POST HARDWARE 1" ARRESTOR BOLTS (4X PER POST, 6X TROLLY-XL) (10X PER TEMPLATE) + 0.6 1.00 WASHER + 0.6 SPACER 1 .750 2.00 WASHER... -
Page 10: Assemble Anchor Supports
StrongSlide M50: Assemble Anchor Supports ASSEMBLE TEMPLATE SUPPORT FRAMES ITEM PART NUMBER DESCRIPTION QTY. * LH SHOWN MX5315-XX KIT, ANCHOR, SSLIDE-M50, XL MX5563-02 KIT, INSTALL, SSLIDE-M50 WOOD, 2X4 BOARD, 2X4, 12FT WOOD, 2X4 BOARD, 2X4, 2.5FT WOOD, 2X4 BOARD, 2X4, 10FT... -
Page 11: Locate Anchors
StrongSlide M50: Locate Anchors MX5672 Rev. B ©2023... -
Page 12: Finish Anchor Assemblies
StrongSlide M50: Finish Anchor Assemblies ASSEMBLE ANCHOR TEMPLETE HARDWARE - INSTALL REMAINING HARDWARE. - MAY REQUIRE ADJUSTING REBAR POSITIONS. 3/4" TROLLY HARDWARE (6X PER TEMPLATE) 3/4" GATE RAMP HARDWARE (4X) 3/4" GATE POST HARDWARE + 0.6 (4X PER TEMPLATE) 10.2 .750... -
Page 13: Secure Anchors And Supports
StrongSlide M50: Secure Anchors and Supports SECURE TEMPLATE ASSEMBLIES TO REBAR ITEM PART NUMBER DESCRIPTION QTY. Rebar_#3 REBAR, #3(3/8"), 12"L NOTES: REFER TO PAGE 5 & 8 TO VERIFY ALL SPACER AND HARDWARE ORIENTATIONS & HEIGHTS. MAY REQUIRE ADJUSTING REBAR POSITIONS. -
Page 14: Pour Concrete
StrongSlide M50: Pour Concrete POUR CONCRETE NO CONCRETE IN PILOT HOLES! VIBRATE AREA UNDER TEMPLATE TO REMOVE AIR POCKETS CONCRETE, 17 YARDS / (460 ft^3) / [6.11m^3] 4000 psi [27.6 MPa] MINIMUM COMPRESSIVE STRENGTH VIBRATE TO REMOVE AIR POCKETS. SMOOTH TOP. -
Page 15: Install Arrestor Posts
StrongSlide M50: Install Arrestor Posts SET ARRESTOR POSTS AND ALIGN MX5616-03 (LH) MX5616-04 (RH) MX5616-01 (LH) MX5616-02 (RH) SLING HOOK BAR TO LIFT (POST WT. = 510 lb [231 kg]) 10X TORQUE ANCHOR NUTS TO 450 ft*lbs [610 Nm]. (TOOL: 1 5/8" HEX. SOCKET) -
Page 16: Install Gate Supports
StrongSlide M50: Install Gate Supports ADD GATE SUPPORT POSTS, TROLLEYS, AND GUIDE RAMP 22.7 TOP GATE TROLLEY GATE SUPPORT POST 203.5 80.1 MX5644-01 (LH) MX5644-02 (RH) GUIDE RAMP BOTTOM GATE TROLLEY, XL 23.7 TROLLEY HT. TORQUE POST NUTS TO 200 ft*lbs [271 Nm] 2.8 GATE RAMP HT. -
Page 17: Adjust Clearances
StrongSlide M50: Adjust Clearances 1.50 [3.8cm] ADJUST GATE & ARRESTOR CLEARANCES 40.0±0.6 1.00 [2.5cm] 15.75±.25 CLEARANCE CLOSE GATE POSITION HOOKS TO GATE (HOOK TO PIN) 1.75 [4.4cm] 1.25 [3.2] 1.25 [3.1cm] .50 [1.3cm] PIN TO HOOK TOP 1.00 [2.5cm] .25 [0.64cm]... -
Page 18: Fill Arrestor Posts
StrongSlide M50: Fill Arrestor Posts ADD GROUT & CONCRETE TO ARRESTOR POSTS NOTES: NON-SHRINK GROUT TO BE MIXED FOR "FLOWABLE" PROPERTIES. MINIMUM COMPRESSION STRENGTH OF 4,000PSI REFERENCE: SAKRETE NON-SHRINK CONSTRUCTION GROUT STEP 3: LEVEL AND SMOOTH CONCRTE ON 50 LBS BAG = 0.45 cu.ft. (1.75 BAGS / {0.78 ft^3} / [0.02 m^3] PER POST) -
Page 19: Mount Slidedriver
StrongSlide M50: Mount SlideDriver NOTICE CAUTION MOUNT SLIDEDRIVER SlideDriver operators are heavy. To avoid interference with the upper trolley track, Use proper lifting techniques when disassemble the lid hinge on the electrical box for full access. ITEM PART NUMBER DESCRIPTION QTY. -
Page 20: Mount Panels And Signs
StrongSlide M50: Mount Panels and Signs MOUNT SAFETY PANELS AND MARKERS MX001265 ITEM PART NO. DESCRIPTION QTY. MX5615 MX5464 PANEL, ACCESS RESTRICT MX5615 PANEL, PINCH PROTECT, M50 MX5486 HHDS, 1/4" X 3/4"L, SS MX001265 WIRE TIE, 24.2" X 0.30", BLACK... - Page 21 Page intentionally left blank. MX5672 Rev. B ©2023...
