Routing; Static Routing - Planet 802.11g Wireless ADSL 2/2+ Router ADW-4401A/Bv2 User Manual

3.10.3 Routing

3.10.3.1 Static Routing

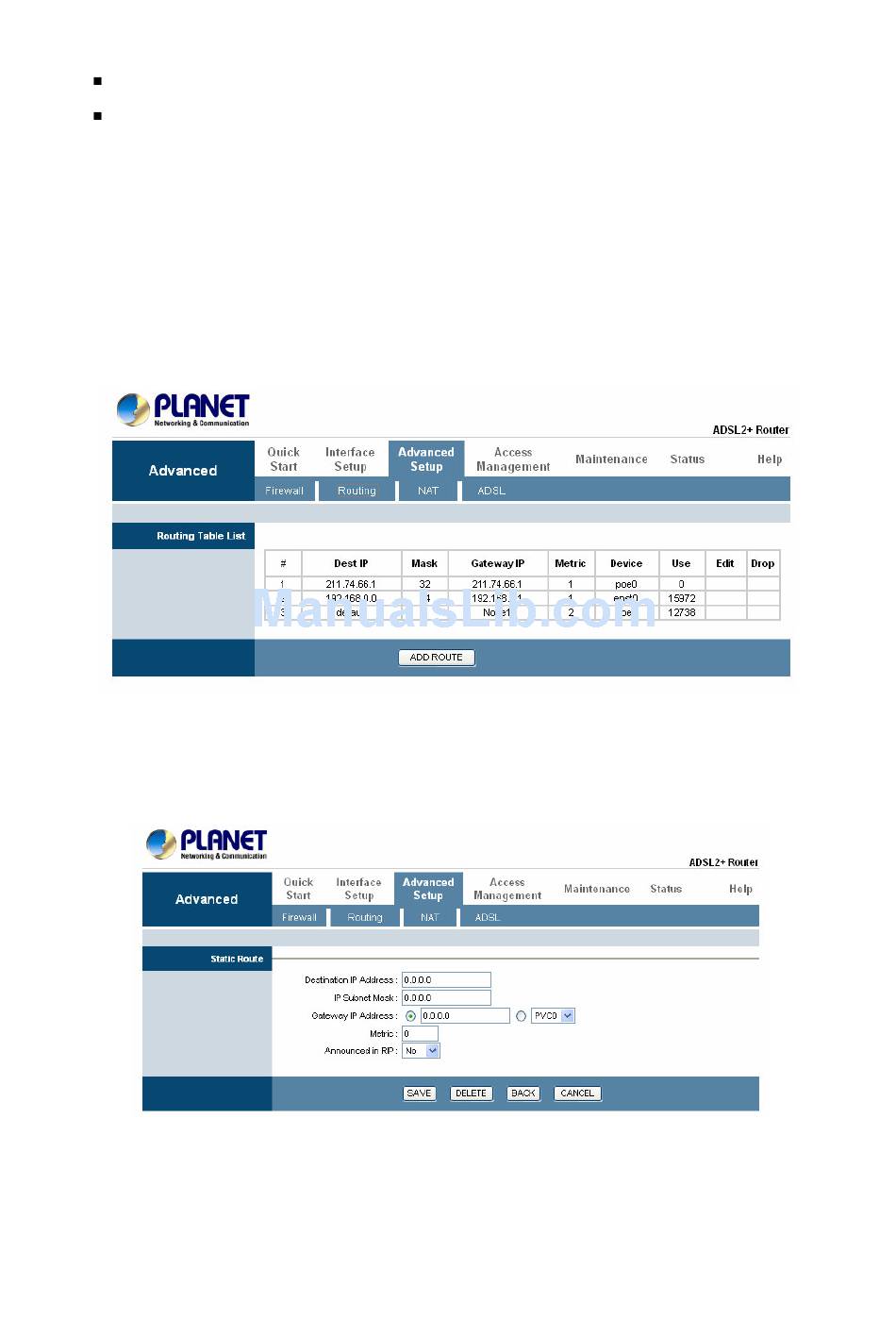

Go to Advance Setup-> Routing to see the Routing Table
Routing Table List
This table lists IP address of Internet destinations commonly accessed by your
network. When a computer requests to send data to a listed destination, the device
uses the Gateway IP to identify the first Internet router it should contact to route the
data most efficiently. Select this option will list the routing table information. You can
press ADD ROUTE to edit the static route. (As below screen)
[Static Route]
Select this option to set Static Routing information.
Destination IP Address: This parameter specifies the IP network address of the final
destination of packets routed by this rule.
53
