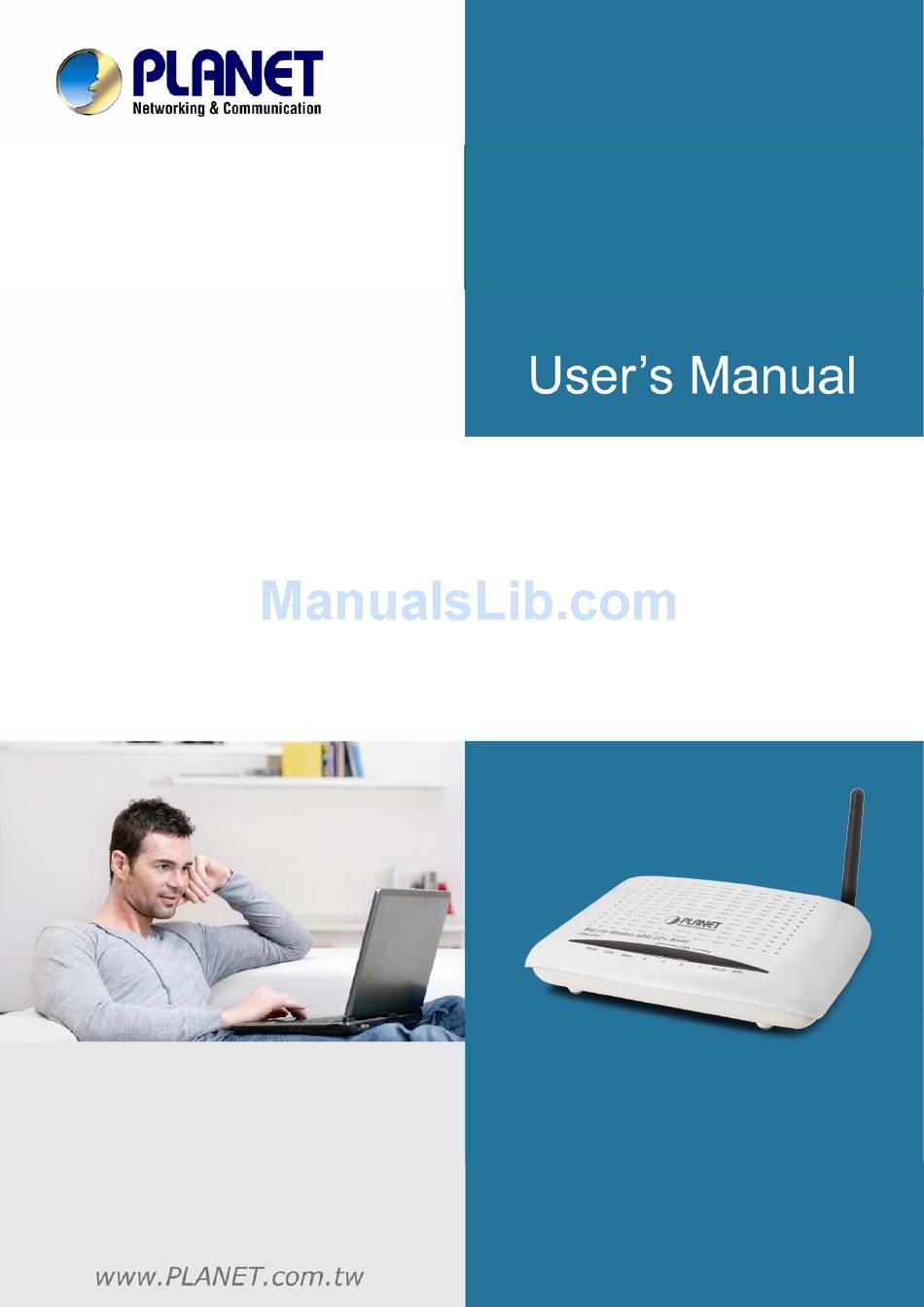

  • Page 1 802.11n Wireless ADSL 2/2+ Router ► ADN-4101...
  • Page 2 "as is". Should the programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual for 802.11n Wireless ADSL 2/2+ Router Model: ADN-4101 Rev: 2.0 (July. 2013) Part No. EM-ADN4101_v2...
  • Page 4 802.11n Wireless ADSL 2/2+ Router ADN-4101 National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction...
  • Page 5 ďalšími cualesquiera otras disposiciones aplicables o exigibles de relevantnými predpismi smernice 1999/5/EC. la Directiva 1999/5/CE PLANET Technology Corporation, s tem potrjuje, da je Français Par la présente, PLANET Technology Corporation, Slovensko déclare que les appareils du 802.11n Wireless ADSL ta 802.11n Wireless ADSL 2/2+ Router skladen/a z...

  • Page 6: Table Of Contents

    802.11n Wireless ADSL 2/2+ Router ADN-4101 Contents Chapter 1. Overview……………………………………………………………………………………… 2 1.1 Application………………………………………………………………………………………… 3 1.2 System Requirements ……………………………………………………………………………5 1.3 Features ……………………………………………………………………………………………6 1.4 Specifications ………………………………………………………………………………………8 Chapter 2. Hardware Installation…………………………………………………………………………11 Chapter 3. Web Configuration ……………………………………………………………………………12 3.1 Accessing the Router ……………………………………………………………………………12 3.2 Wizard ……………………………………………………………………………………………13 3.3 Status ………………………………………………………………………………………………20...

  • Page 7: Chapter 1. Overview

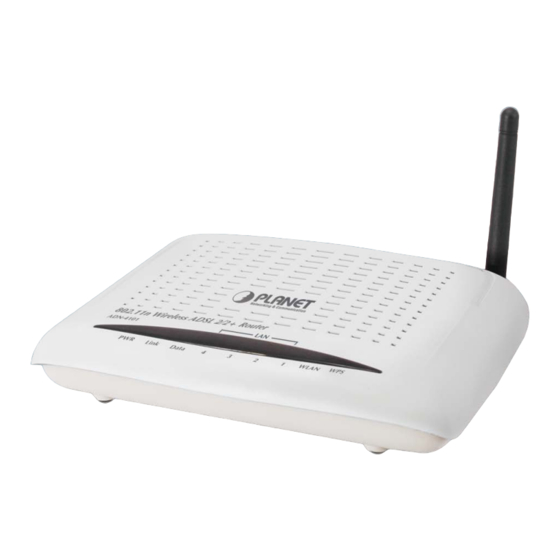

    PLANET ADN-4101 is a Wireless ADSL 2/2+ Router compliant with 802.11n and features 1T1R MIMO antenna technology. The ADN-4101 is the ideal solution for office and residential users to share a high-speed ADSL 2/2+ broadband Internet connection and four-10/100Mbps Fast Ethernet backbone. It can support transmission rates up to 24Mbps downstream and 3.5Mbps upstream with ADSL 2+ support.

  • Page 8: Application

    It provides DHCP server, NAT, Virtual Server, DMZ, Access Control, IP Filter, DDNS, and UPnP capability. The ADN-4101 also serves as an Internet firewall to protect your network from being accessed by unauthorized users. It offers the natural firewall function. All the incoming and outgoing IPs can be monitored and filtered. For the advanced application, it even can block internal users accessing to the Internet services.
  • Page 9 802.11n Wireless ADSL2/2+ Router ADN-4101 Front Panel The following table describes the LEDs of the device. Color Status Description The power is off. Green The device is powered on and the initialization is normal. The device is self-testing or self-testing is failed, or the software upgrade is under progress.

  • Page 10: System Requirements

    802.11n Wireless ADSL2/2+ Router ADN-4101 Rear Panel Figure 1 Rear panel The following table describes the interfaces and buttons of the device. Interface/Button Description Press the button and hold it for 1 second to enable WLAN. WPS/ WLAN Press the button and hold it for 3 or more than 3 seconds to initialize WPS negotiation.

  • Page 11: Features

    Internet Access Shared All users in the LAN can access the Internet through the ADN-4101 by just a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address Translation).
  • Page 12 LAN Features 4-port Switch The ADN-4101 incorporates a 4-port 10/100Base-TX switching hub, making it easy to create or extend your LAN. DHCP Server Support Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The ADN-4101 can act as a DHCP Server for devices on your local LAN and WLAN.

  • Page 13: Specifications

    802.11n Wireless ADSL2/2+ Router ADN-4101 1.4 Specifications ADN-4101A Model Hardware Compliant with ADSL Standard - Full-rate ANSI T1.413 Issue 2 - G.dmt (ITU G.992.1) - G.lite (ITU G.992.2) - G.hs,Multimode (ITU G.994.1) Standard Capable of ADSL2 Standard - G.dmt.bis (ITU G.992.3) Capable of ADSL2+ Standard - G.dmt.bisplus (ITU G.992.5)
  • Page 14 802.11n Wireless ADSL2/2+ Router ADN-4101 IEEE 802.11b mode: DSSS (CCK,QPSK,BPSK) RF Modulation IEEE 802.11g mode: OFDM (BPSK,QPSK,16QAM,64QAM) HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK 11b: 16.5dBm ± 1.5dBm Transmit Power 11g: 14dBm ± 1.5dBm 11n HT20M:13dbm± 1.5dBm 11n HT40M: 13dbm± 1.5dBm 802.11b: ＜-80dBm...
  • Page 15 802.11n Wireless ADSL2/2+ Router ADN-4101 Power 12V DC, 0.8A Operating temperature: 0 ~ 50 degrees C Temperature and Humidity Storage temperature: -10 ~ 70 degrees C Humidity: 10 ~ 95% non-condensing FCC, CE Emission...

  • Page 16: Chapter 2. Hardware Installation

    802.11n Wireless ADSL2/2+ Router ADN-4101 Chapter 2. Hardware Installation Step 1 Connect the LINE interface of the device and the Modem interface of the splitter with a telephone cable. Connect the phone set to the Phone interface of the splitter through a telephone cable. Connect the input cable to the Line interface of the splitter.

  • Page 17: Chapter 3. Web Configuration

    802.11n Wireless ADSL2/2+ Router ADN-4101 Chapter 3. Web Configuration This chapter describes how to configure the device by using the Web-based configuration utility. 3.1 Accessing the Router The following describes how to access the device for the first time in details.

  • Page 18: Wizard

    802.11n Wireless ADSL2/2+ Router ADN-4101 On the Web configuration page, you can click Apply Changes to save the settings temporarily. If you want to save the settings of this page permanently, clicks save of Attention that appears at the bottom of the Web page after the configuration.
  • Page 19 802.11n Wireless ADSL2/2+ Router ADN-4101 After setting, click Next and the page as shown in the following figure appears. There are five WAN connection types: PPP over ATM (PPPoA), PPP over Ethernet (PPPoE), 1483 MER, 1483 Routed, and 1483 Bridged. The following describes them respectively.
  • Page 20 802.11n Wireless ADSL2/2+ Router ADN-4101 After setting, click Next and the page as shown in the following figure appears. The following table describes the parameters on this page: Field Description Obtain an IP address Select it, the DHCP assigns the IP address for PPPoE connection.
  • Page 21 802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters on this page: Field Description PPP Username Enter the username for PPPoE dial-up, which is provided by your ISP. PPP Password Enter the password for PPPoE dial-up, which is provided by your ISP.
  • Page 22 802.11n Wireless ADSL2/2+ Router ADN-4101 Field Description addresses before the IP addresses change. After setting, click Next and the page as shown in the following figure appears. Click BACK to modify the settings. Click FINISH to save the settings. Click RESET to cancel the settings.
  • Page 23 802.11n Wireless ADSL2/2+ Router ADN-4101 After setting, click Next and the page as shown in the following figure appears. The following table describes the parameters on this page: Field Description Select it, DHCP automatically assigns the IP address for WAN Obtain an IP address automatically connection.
  • Page 24 802.11n Wireless ADSL2/2+ Router ADN-4101 1483 Bridged On the Connection Type page, set the WAN connection type to 1483 Bridged, and the encapsulation mode to LLC/SNAP. After setting, click Next and the page as shown in the following figure appears.

  • Page 25: Status

    802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters on this page: Field Description LAN Interface Setup Enter the IP address of LAN interface. Its valid value is in the range of LAN IP 192.168.1.1 to 192.168.255.254. The default IP address is 192.168.1.1.

  • Page 26: Lan

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.3.2 LAN Choose Status > LAN and the page displayed shows some basic LAN settings of the router. On this page, you can view the LAN IP address, DHCP server status, MAC address, and DHCP client table.

  • Page 27: Wan

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.3.4 WAN Choose Status > WAN and the page displayed shows some basic WAN settings of the router. On this page, you can view basic status of WAN and DNS server. If you want to configure the WAN network, refer to chapter 0.1373892 3.3.4 3.4.2.1 W...

  • Page 28: Statistics

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.3.6 Statistics Choose Status > Statistics. The Statistics page that is displayed contains Statistics and ADSL Statistics. 3.3.6.1 Statistics Click Statistics in the left pane and the page shown in the following figure appears. On this page, you can view the statistics of each network port.

  • Page 29: Arp Table

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.3.7 ARP Table Choose Status > ARP. On the ARP Table page, you can view the table that shows a list of learned MAC addresses. 3.4 Network In the navigation bar, click Network. The Network page that is displayed contains LAN, WAN, and WLAN.
  • Page 30 802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters on this page: Field Description Enter the IP address of LAN interface. It is recommended to use an address from IP Address a block that is reserved for private use. This address block is 192.168.1.1- 192.168.1.254.
  • Page 31 802.11n Wireless ADSL2/2+ Router ADN-4101 Field Description assigned to clients. Default Gateway Enter the default gateway of the IP address pool. The lease time determines the period that the host retains the assigned IP Max Lease Time addresses before the IP addresses change.
  • Page 32 802.11n Wireless ADSL2/2+ Router ADN-4101 Click Set Vendor Class IP Range on the DHCP Mode page and the page as shown in the following figure appears. On this page, you can configure the IP address range based on the device type.
  • Page 33 802.11n Wireless ADSL2/2+ Router ADN-4101 In the DHCP Mode field, choose DHCP Relay and the page shown in the following figure appears. The following table describes the parameters and buttons on this page: Field Description If set to DHCP Relay, the router acts a surrogate DHCP Server and relays the DHCP Mode DHCP requests and responses between the remote server and the client.

  • Page 34: Wan

    802.11n Wireless ADSL2/2+ Router ADN-4101 Field Description Delete Selected Select a row in the DHCP Static IP Table, then click it, this row is deleted. Reset Click it to refresh this page. DHCP Static IP Table It shows the assigned IP address based on the MAC address.
  • Page 35 802.11n Wireless ADSL2/2+ Router ADN-4101 Field Description (IGMP) function. PPP Settings Enter the correct user name for PPP dial-up, which is provided by User Name your ISP. Enter the correct password for PPP dial-up, which is provided by Password your ISP.
  • Page 36 802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters and buttons on this page: Field Description Protocol It displays the protocol type used for this WAN connection. ATM VCC The ATM virtual circuit connection assigned for this PPP interface (VPI/VCI).
  • Page 37 802.11n Wireless ADSL2/2+ Router ADN-4101 3.4.2.2 Auto PVC Click Auto PVC in the left pane and the page shown in the following figure appears. On this page, you can get PVC automatically through detecting function, and add or delete the PVC that you do not want.
  • Page 38 802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters on this page: Field Description The virtual path identifier of the ATM PVC. The virtual channel identifier of the ATM PVC. The QoS category of the PVC. You can choose UBR, CBR, rt-VBR, or nrt-VBR.

  • Page 39: Wlan

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.4.3 WLAN Choose Network > WLAN. The WLAN page that is displayed contains Basic, Security, Access Control List, MBSSID, Advanced, WPS, WDS, and WDS Security. 3.4.3.1 Basic Choose WLAN > Basic and the following page appears. On this page, you can configure the parameters for wireless LAN clients that may connect to the modem.
  • Page 40 802.11n Wireless ADSL2/2+ Router ADN-4101 Field Description Click it to apply the settings temporarily. If you want to save the settings of this page Apply Changes permanently, click Save in the lower left corner. 3.4.3.2 Security Choose WLAN> Security and the following page appears.
  • Page 41 802.11n Wireless ADSL2/2+ Router ADN-4101 Set the encryption mode to WEP and click Set WEP Key and the following page appears. 3.4.3.3 Access Control List Choose WLAN > Access Control List and the following page appears. On this page, you can configure the access control of the wireless clients.
  • Page 42 802.11n Wireless ADSL2/2+ Router ADN-4101 3.4.3.4 MBSSID Choose Wireless > MBSSID and the following page appears. On this page, you can configure the multi-SSID of the wireless clients. It supports four virtual access points (VAPs). It is a unique name to identify the modem in the wireless LAN. Wireless stations associating to the modem must have the same name.
  • Page 43 802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters on this page: Field Description Select the modem operating in the open system or encryption authentication. You can choose Open System, Shared Key, or Auto. Authentication In the open system, the wireless client can directly connect to the device In the encryption authentication, the wireless client connects to the modem through the shared key.
  • Page 44 802.11n Wireless ADSL2/2+ Router ADN-4101 There are two ways for the wireless client to establish connection with the modem through WPS. Click Regenerate PIN to generate a new PIN, and then click Start PBC, in the wireless client tool, enter the PIN which is generated by the modem，start connection.
  • Page 45 802.11n Wireless ADSL2/2+ Router ADN-4101 3.4.3.7 WDS Choose WLAN > WDS and the following page appears. On this page you can enable wireless distribution system (WDS) so that the router can communicate with another AP. The following table describes the parameters on this page:...

  • Page 46: Service

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.5 Service In the navigation bar, click Service. On the Service page that is displayed contains DNS, Firewall, UPNP, IGMP Proxy, TR-069 and ACL. 3.5.1 DNS Domain Name System (DNS) is an Internet service that translates the domain name into IP address. Because the domain name is alphabetic, it is easier to remember.

  • Page 47: Firewall

    Click DDNS in the left pane and the page shown in the following figure appears. This page is used to configure the dynamic DNS address from DynDNS.org, TZO or Planet. You can add or remove to configure dynamic DNS. The Planet DDNS is free for customer.
  • Page 48 802.11n Wireless ADSL2/2+ Router ADN-4101 3.5.2.2 MAC Filter Click MAC Filter in the left pane and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway. These filters are helpful...
  • Page 49 802.11n Wireless ADSL2/2+ Router ADN-4101 3.5.2.3 URL Filter Click URL Filter in the left pane and the page shown in the following figure appears. This page is used to block a fully qualified domain name, such as tw.yahoo.com and filtered keyword. You can add or delete FQDN and filtered keyword.
  • Page 50 802.11n Wireless ADSL2/2+ Router ADN-4101 3.5.2.5 Software Forbidden Click Software Forbidden in the left pane and the page shown in the following figure appears. This interface realizes application control. Select an application from the drop-down list to prohibit the application from accessing network resources.

  • Page 51: Upnp

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.5.3 UPNP Choose Service > UPnP and the page shown in the following figure appears. This page is used to configure UPnP. The system acts as a daemon after you enable it. 3.5.4 IGMP Proxy Choose Service >...

  • Page 52: Tr-069

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.5.5 TR-069 Choose Service > TR-069 and the page shown in the following page appears. On this page, you can configure the TR-069 CPE. The following table describes the parameters on this page: Field Description The URL of the auto-configuration server to connect to.

  • Page 53: Acl

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.5.6 ACL Choose Service > ACL and the page shown in the following figure appears. On this page, you can permit the data packets from LAN or WAN to access the router. You can configure the IP address for Access Control List (ACL). If ACL is enabled, only the effective IP address in the ACL can access the router.

  • Page 54: Advanced

    802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters and buttons on this page: Field Description Select the router interface. You can select LAN or WAN. In this example, Direction Select WAN is selected. WAN Setting You can choose Interface or IP Address.
  • Page 55 802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters and buttons on this page: Field Description Enable Select it to use static IP routes. Destination Enter the IP address of the destination device. Subnet Mask Enter the subnet mask of the destination device.

  • Page 56: Nat

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.6.1.2 RIP Click RIP in the left pane and the page shown in the following figure appears. If you are using this device as a RIP-enabled router to communicate with others using Routing Information Protocol (RIP), enable RIP. This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.
  • Page 57 802.11n Wireless ADSL2/2+ Router ADN-4101 The following describes how to configure manual DMZ. Step 1 Select Enable DMZ to enable this function. Step 2 Enter an IP address of the DMZ host. Step 3 Click Apply Changes to save the settings on this page temporarily.
  • Page 58 802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters and buttons on this page: Field Description Input a local IP address. Local IP Address Remote IP Address Input a remote IP address Enable Enable the current configured rule.
  • Page 59 802.11n Wireless ADSL2/2+ Router ADN-4101 3.6.2.6 Port Trigger Click Port Trigger in the left pane and the page shown in the following figure appears. Click the Usual Application Name drop-down menu to choose the application you want to set up for port triggering.

  • Page 60: Port Mapping

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.6.2.8 NAT IP Mapping NAT is short for Network Address Translation. The Network Address Translation Settings window allows you to share one WAN IP address for multiple computers on your LAN. Click NAT IP Mapping in the left pane and the page shown in the following figure appears. Entries in this table allow you to configure one IP pool for specified source IP address from LAN, so one packet whose source IP is in range of the specified address will select one IP address from the pool for NAT.

  • Page 61: Ip Qos

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.6.4 IP QoS Choose Advance > IP QoS and the page shown in the following figure appears. Entries on the QoS Rule List are used to assign the precedence for each incoming packet based on physical LAN port, TCP/UDP port number, source IP address, destination IP address and other information.

  • Page 62: Snmp

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.6.5 SNMP Choose Advance > SNMP and click Enable SNMP, and the page shown in the following figure appears. You can configure the SNMP parameters. The following table describes the parameters on this page: Description Field Select it to enable SNMP function.

  • Page 63: Schedules Reboot

    802.11n Wireless ADSL2/2+ Router ADN-4101 The following table describes the parameters on this page: Description Field Select it to enable Parent Control function. You need to enable Parent Control, and then you can configure the parameters on this page. Parent Control Parent Control is used to control children's online time.

  • Page 64: Others

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.6.8 Others Choose Advance > Others and the page shown in the following figure appears. The page displayed contains Bridge Setting, Client Limit, and Others. 3.6.8.1 Bridge Setting Choose Advance > Others > Bridge Setting and the page shown in the following figure appears. This page is used to configure the bridge parameters.

  • Page 65: Admin

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.6.8.2 Client Limit Choose Advance > Others > Client Limit and the page shown in the following figure appears. This page is used to configure the capability of forcing how many devices can access to the Internet.
  • Page 66 802.11n Wireless ADSL2/2+ Router ADN-4101 Caution: Do not turn off the router or press the Reset button while the procedure is in progress. 3.7.2.1 Upgrade Firmware Click Upgrade Firmware in the left pane and the page shown in the following figure appears. On this page, you can upgrade the firmware of the router.

  • Page 67: Log

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.7.3 Log Choose Admin > Log and the page shown in the following figure appears. On this page, you can enable or disable system log function and view the system log. 3.7.4 Password Choose Admin > Password and the page shown in the following figure appears. By default, the user name and password of the administrator are admin and admin respectively.

  • Page 68: Time

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.7.5 Time Choose Admin > Time and the page shown in the following figure appears. You can configure the system time manually or get the system time from the time server. The following table describes the parameters on this page:...

  • Page 69: Traceroute

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.8.2 Traceroute Choose Diagnostic >Traceroute and the following page appears. By Traceroute Diagnostic, you can track the route path through the information which is from your computer to the Internet other side host. The following table describes the parameters and buttons on this page.

  • Page 70: Adsl Statistics

    802.11n Wireless ADSL2/2+ Router ADN-4101 3.8.4 ADSL Statistics Choose Diagnostic > ADSL Statistics and the page shown in the following figure appears. It is used for ADSL tone diagnostics. Click Start to start ADSL tone diagnostics. 3.8.5 Diag-Test Choose Diagnostic > Diag-Test and the page shown in the following figure appears. On this page, you can test the DSL connection.

  • Page 71: Chapter 4. Q&A

    802.11n Wireless ADSL2/2+ Router ADN-4101 Chapter 4. Q&A Question Answer Check the connection between the power adapter and the power socket. Why are all the indicators off? Check whether the power switch is turned on. Check the following: The connection between the device and the PC, the hub, or the switch...
  • Page 72 : ADN-4101A / ADN-4101B * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address : 10F, No. 96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C. is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2004/108/EC,).
  • Page 73 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ 1999/5/CE. ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ Español Por medio de la presente, PLANET Technology Slovensky Výrobca PLANET Technology Corporation, týmto Corporation, declara que Product Wi-Fi cumple deklaruje, že táto Product Wi-Fi je v súlade so con los requisitos esenciales y cualesquiera otras základnými požiadavkami a ďalšími relevantnými...
