Front Panel LED definition
LED State
ON
PWR
OFF
WLAN Flashing When wireless AP is ready
ON
ADSL
Flashing Modem is trying to establish a connection to telecom's network
ON
Flashing TX or RX activity
LAN
1-4
OFF

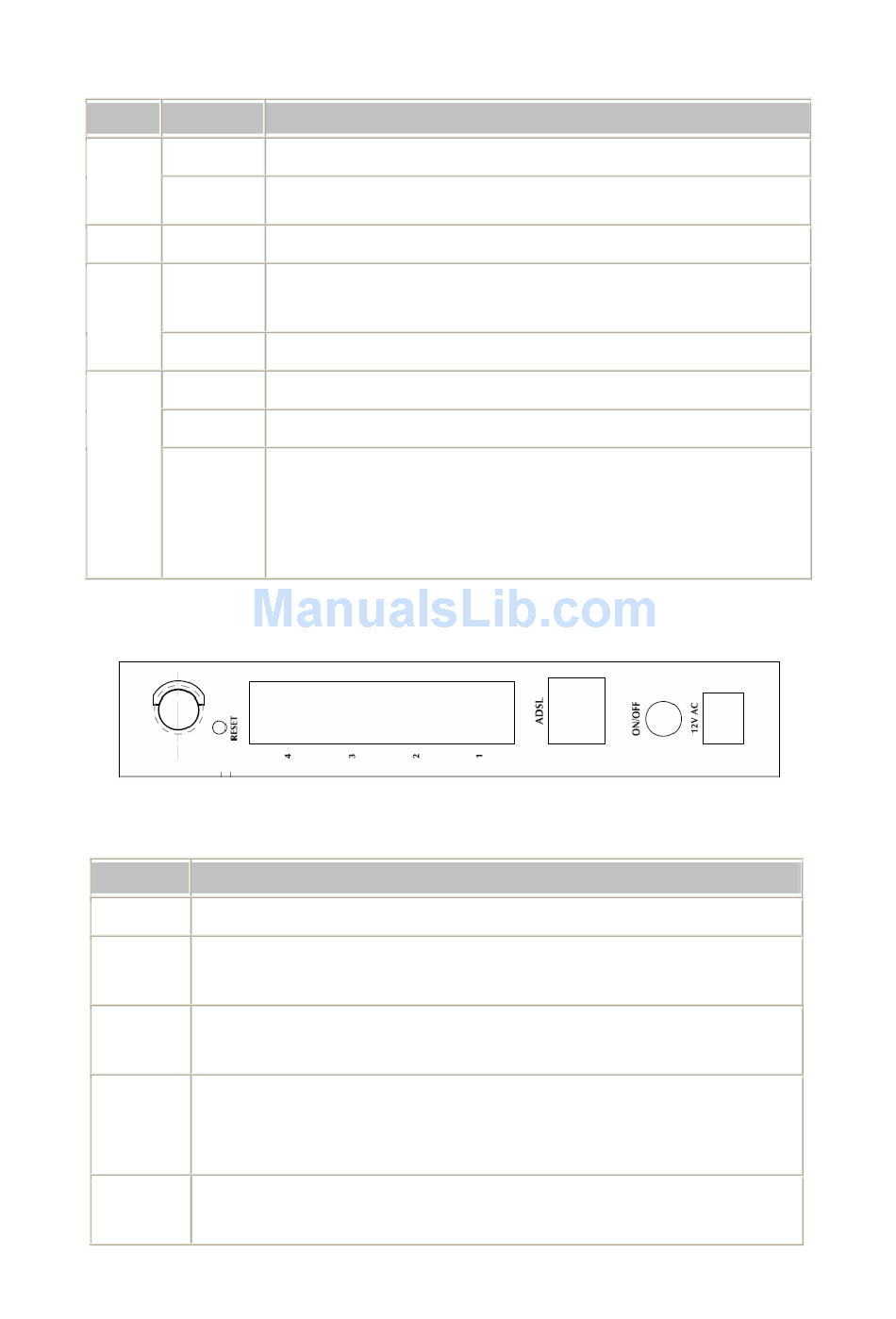

Rear Panel
Rear panel Port and Button Definition
Connector
POWER Power connector with 12V AC 1.0 A
POWER
The power button is for turn on or turns off the router.
Button
ADSL
The RJ-11 connector allows data communication between t he modem and
Connector the ADSL network through a twisted-pair phone wire
Router is successfully connected to a device through the corresponding
LAN (1-4) port (1, 2, 3, or 4). If the LED is flashing, the Router is actively sending or
receiving data over that port.
Reset
The reset button, the router restore the default settings when press this
Button button until reboot
When the router is powered on and in ready state
When the router is powered off.
Successful connection between ADSL modem and telecom' s
network
Link
No Link
These four LAN (Local Area Network) ports are where you will
connect networked devices, such as PCs, print servers remote hard
drives, and anything else you want to put on your network
Description
Description
