3.5 Status

3.5.1 Device Info

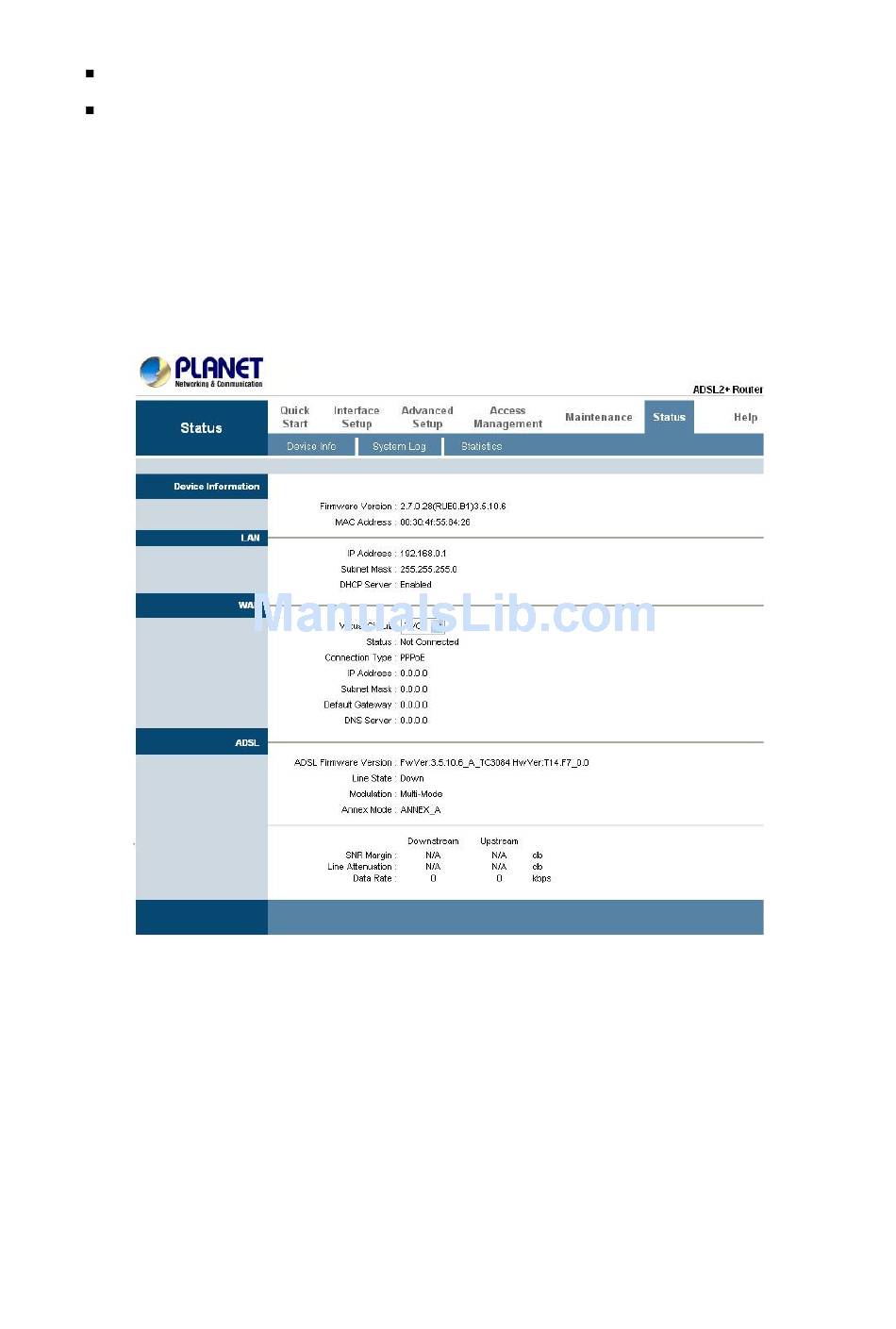

Go to Status->Device Info to check system information.
The Device Info screen is a tool that you use to monitor your ADSL Router. It shows
the Firmware Version, WAN, LAN, and MAC address information. Note that these
fields are read-only and are not meant for diagnostic purposes. Except the Virtual
Circuit, click the drop-down list and select the name of the Virtual Circuit on which
the system status is to be shown.
[Device Information]
Firmware Version: This filed displays current firmware version.
MAC Address: The MAC (Media Access Control) or Ethernet address unique to
your modem.
[LAN]
IP Address: The LAN port IP address
Subnet Mask: The LAN port IP subnet mask.
DHCP Server: The status of DHCP Server (Enabled or Disabled)
