3.
Description
Both handset versions (Wi-Fi, and Wi-Fi & Cellular) share the same external characteristics.
3.1
Handset Overview

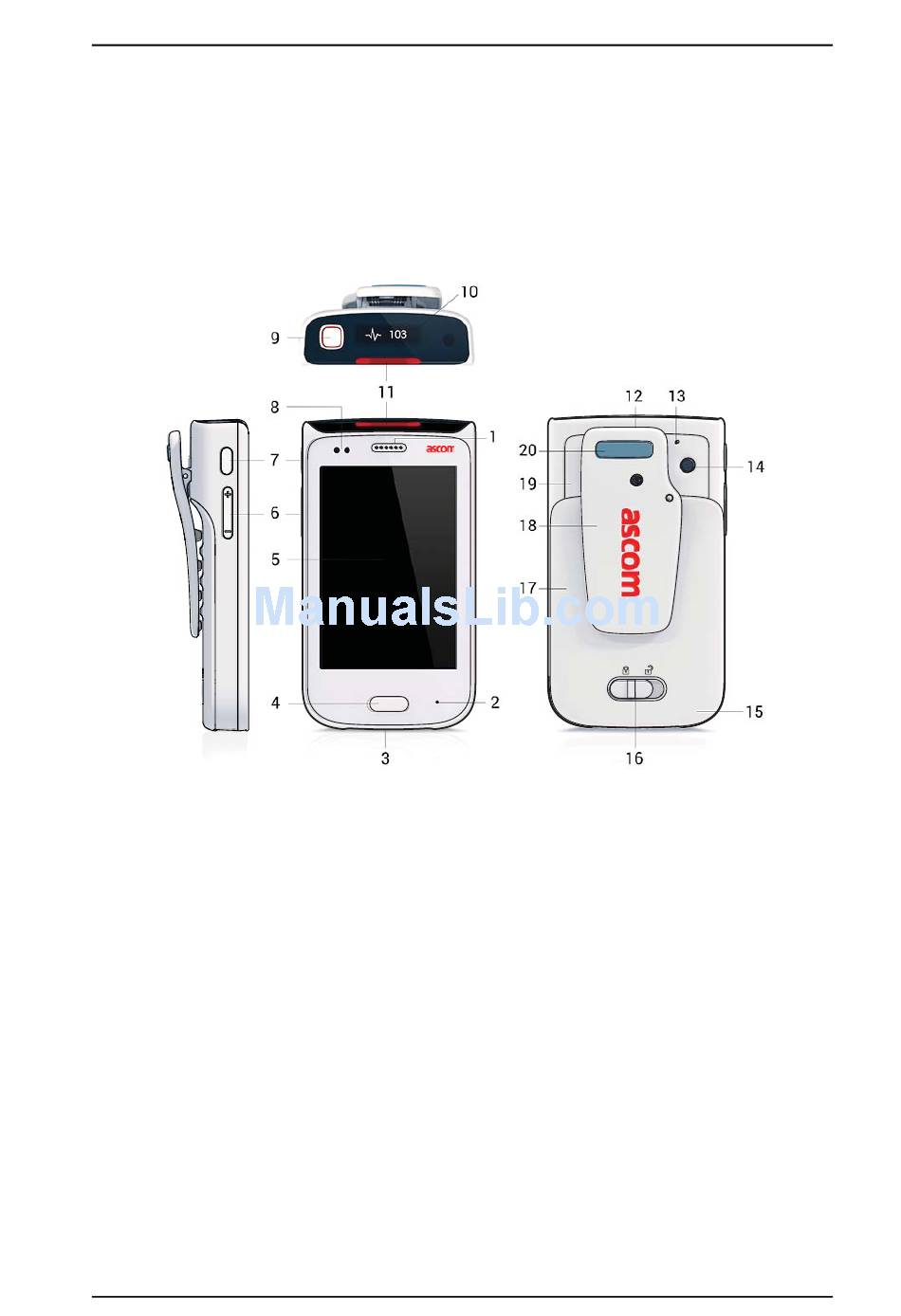

Figure 1.
1
Speaker.
2
Front microphone (main)
3
Charging connectors
4
Home button
5
Touchscreen
6
Volume button (Up and Down)
7
Power button
8
Proximity sensor
10
Top display
11
Color-coded LED priority beacon
25.)
12
Loudspeaker
13
Rear microphone
14
Camera
15
GSM antenna
2 April 2015 / Ver. A
3. Description
(3.1.1 Home button
(3.1.2 Volume button, Up and Down
(3.1.3 Power button
(7.2 Top display
on page 26.)
(11. Camera and Gallery
on page 11.)
on page 11.)
(6.3.5 Color-coded LED Priority Beacon
on page 36.)
TD 93066EN
on page 11.)
on page
10
