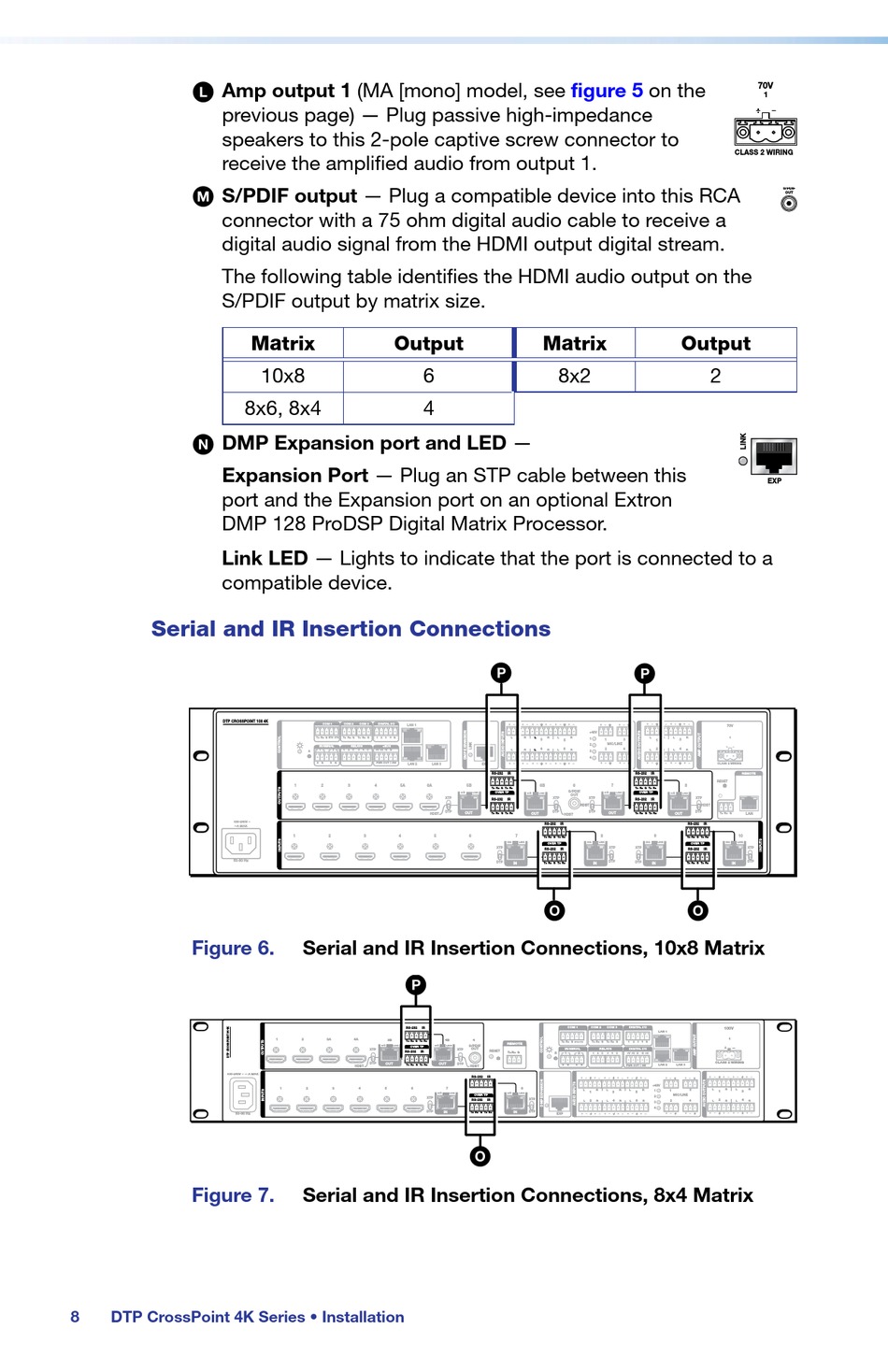

Serial And Ir Insertion Connections - Extron electronics DTP CrossPoint 4K Series Setup Manual

L Amp output 1 (MA [mono] model, see
previous page) — Plug passive high-impedance
speakers to this 2-pole captive screw connector to
receive the amplified audio from output 1.
M
S/PDIF output — Plug a compatible device into this RCA
connector with a 75 ohm digital audio cable to receive a
digital audio signal from the HDMI output digital stream.
The following table identiies the HDMI audio output on the
S/PDIF output by matrix size.
N DMP Expansion port and LED —
Expansion Port — Plug an STP cable between this
port and the Expansion port on an optional Extron
DMP 128 ProDSP Digital Matrix Processor.
Link LED — Lights to indicate that the port is connected to a
compatible device.

Serial and IR Insertion Connections

DTP CROSSPOINT 108 4K
100-240V ~
--A MAX
50-60 Hz
Figure 6.
100-240V ~ -- A MAX
50-60 Hz
Figure 7.
8 DTP CrossPoint 4K Series • Installation
