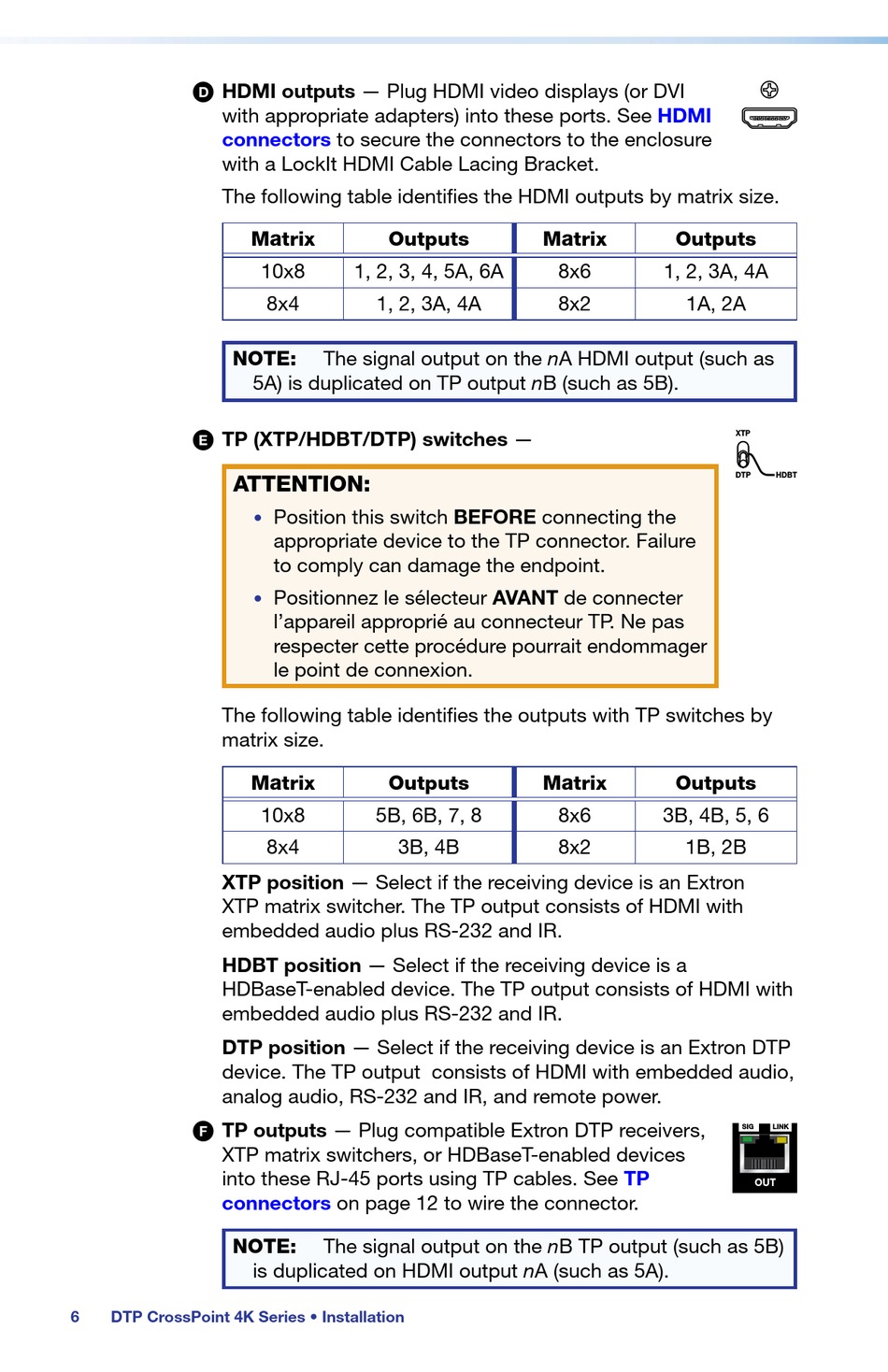

Extron electronics DTP CrossPoint 4K Series Setup Manual page 14

D HDMI outputs — Plug HDMI video displays (or DVI
with appropriate adapters) into these ports. See
connectors
with a LockIt HDMI Cable Lacing Bracket.
The following table identiies the HDMI outputs by matrix size.
NOTE:
E TP (XTP/HDBT/DTP) switches —
ATTENTION:
The following table identiies the outputs with TP switches by
matrix size.
XTP position — Select if the receiving device is an Extron
XTP matrix switcher. The TP output consists of HDMI with
embedded audio plus RS-232 and IR.
HDBT position — Select if the receiving device is a
HDBaseT-enabled device. The TP output consists of HDMI with
embedded audio plus RS-232 and IR.
DTP position — Select if the receiving device is an Extron DTP
device. The TP output consists of HDMI with embedded audio,
analog audio, RS-232 and IR, and remote power.
F TP outputs — Plug compatible Extron DTP receivers,
XTP matrix switchers, or HDBaseT-enabled devices
into these RJ-45 ports using TP cables. See
connectors
NOTE:
6 DTP CrossPoint 4K Series • Installation
to secure the connectors to the enclosure
Matrix Outputs
10x8 1, 2, 3, 4, 5A, 6A
8x4 1, 2, 3A, 4A
The signal output on the nA HDMI output (such as
5A) is duplicated on TP output nB (such as 5B).
Position this switch BEFORE connecting the
•
appropriate device to the TP connector. Failure
to comply can damage the endpoint.
Positionnez le sélecteur AVANT de connecter
•
l'appareil approprié au connecteur TP. Ne pas
respecter cette procédure pourrait endommager
le point de connexion.
Matrix Outputs
10x8 5B, 6B, 7, 8
8x4 3B, 4B
on page 12 to wire the connector.
The signal output on the nB TP output (such as 5B)
is duplicated on HDMI output nA (such as 5A).
HDMI
Matrix Outputs
8x6 1, 2, 3A, 4A
8x2 1A, 2A
Matrix Outputs
8x6 3B, 4B, 5, 6
8x2 1B, 2B
TP
XTP
DTP HDBT
SIG LINK
OUT
