optris CTratio Operator's Manual page 29

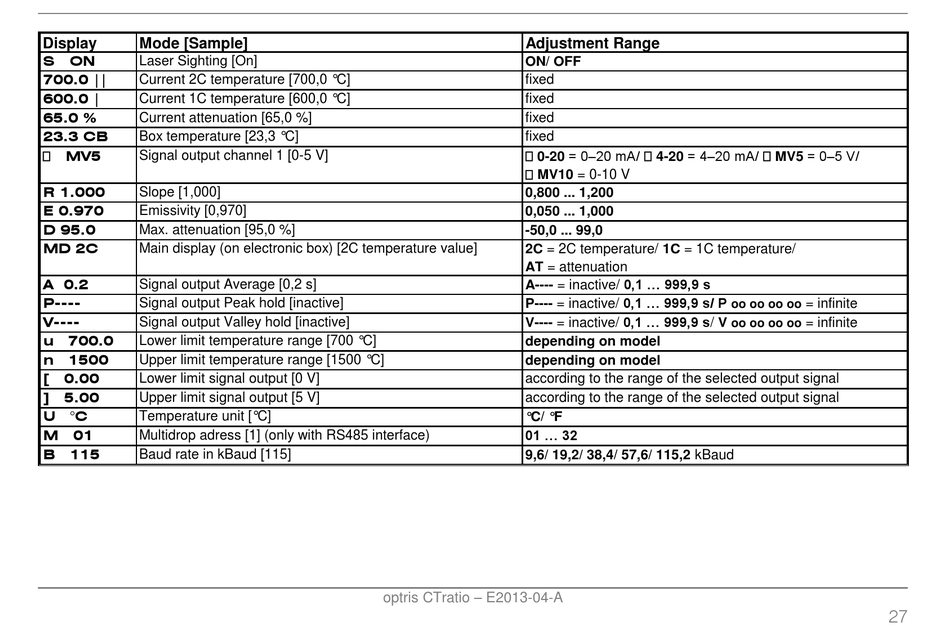

Display Mode [Sample]
S ON
Laser Sighting [On]
700.0 ||
Current 2C temperature [700,0 °C]
600.0 |
Current 1C temperature [600,0 °C]
65.0 %
Current attenuation [65,0 %]
23.3 CB
Box temperature [23,3 °C]
MV5
Signal output channel 1 [0-5 V]
R 1.000
Slope [1,000]
E 0.970
Emissivity [0,970]
D 95.0
Max. attenuation [95,0 %]
MD 2C
Main display (on electronic box) [2C temperature value]
A 0.2
Signal output Average [0,2 s]
P----
Signal output Peak hold [inactive]
V----
Signal output Valley hold [inactive]
u 700.0
Lower limit temperature range [700 °C]
n 1500
Upper limit temperature range [1500 °C]
[ 0.00
Lower limit signal output [0 V]
] 5.00
Upper limit signal output [5 V]
U °C
Temperature unit [°C]
M 01
Multidrop adress [1] (only with RS485 interface)
B 115
Baud rate in kBaud [115]
Adjustment Range
ON/ OFF
fixed
fixed
fixed
fixed
0-20 = 0–20 mA/
MV10 = 0-10 V
0,800 ... 1,200
0,050 ... 1,000
-50,0 ... 99,0
2C = 2C temperature/ 1C = 1C temperature/
AT = attenuation
A---- = inactive/ 0,1 ... 999,9 s
P---- = inactive/ 0,1 ... 999,9 s/ P
V---- = inactive/ 0,1 ... 999,9 s/ V
depending on model
depending on model
according to the range of the selected output signal
according to the range of the selected output signal
°C/ °F
01 ... 32
9,6/ 19,2/ 38,4/ 57,6/ 115,2 kBaud
optris CTratio – E2013-04-A
4-20 = 4–20 mA/ MV5 = 0–5 V/
= infinite
oo oo oo oo
= infinite
oo oo oo oo
