Mechanical Installation

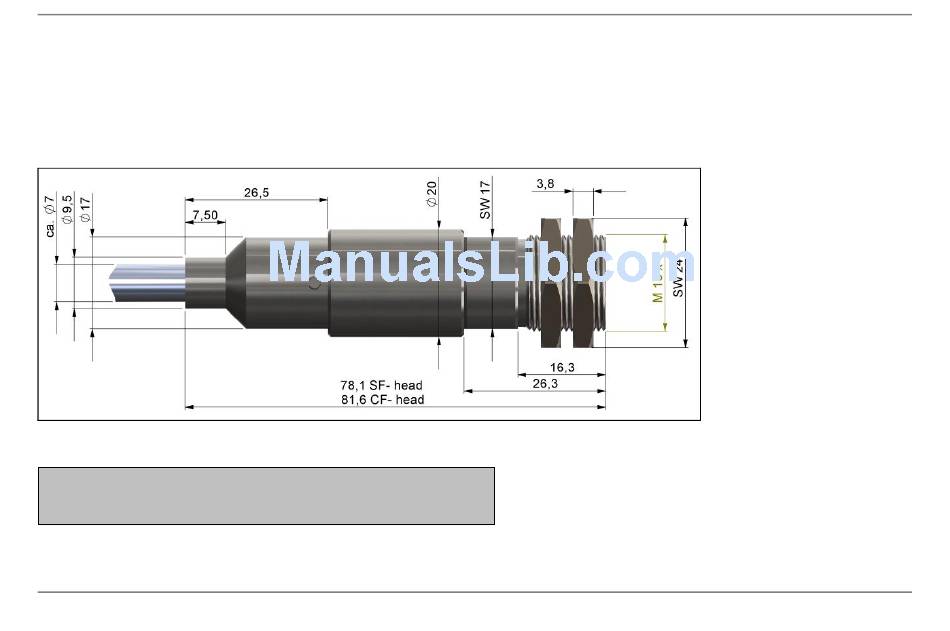

The CTratio sensing heads are equipped with a metrical M18x1-thread and can be installed either directly via
the sensor thread or with help of the hex nuts (2 pieces included in scope of supply) to the mounting bracket
available. Various mounting brackets, which make the adjustment of the sensing head easier, can be
additionally ordered as accessories.
Sensing head
Please make sure that the minimum bending radius of the
fiber optics of 40 mm will be considered during installation.
