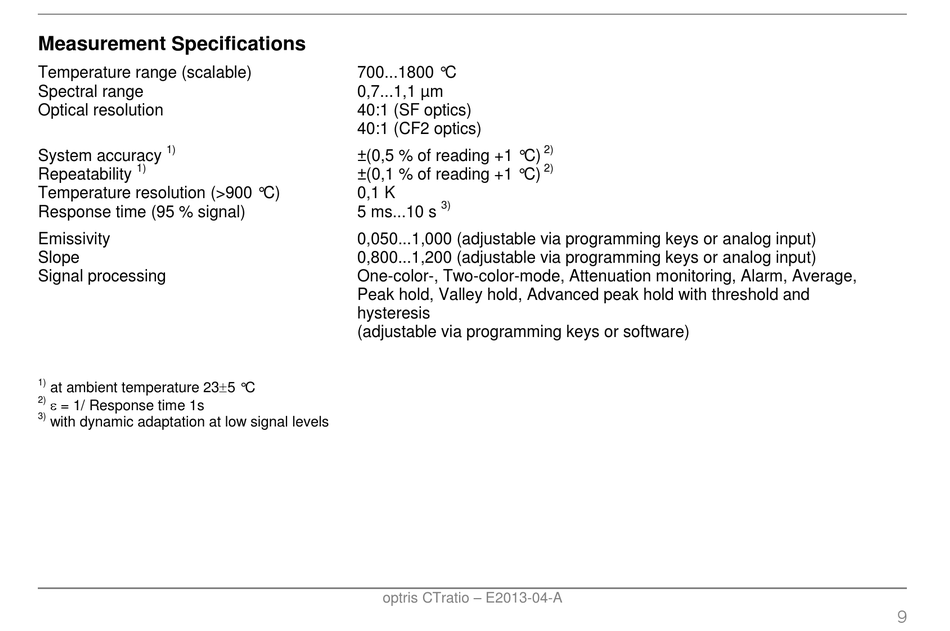

Measurement Specifications

Temperature range (scalable)
Spectral range
Optical resolution
1)
System accuracy
1)
Repeatability
Temperature resolution (>900 °C)
Response time (95 % signal)
Emissivity
Slope
Signal processing
1)
at ambient temperature 235 °C
 = 1/ Response time 1s
2)
3)
with dynamic adaptation at low signal levels
700...1800 °C
0,7...1,1 µm
40:1 (SF optics)
40:1 (CF2 optics)
±(0,5 % of reading +1 °C)
±(0,1 % of reading +1 °C)
0,1 K
3)
5 ms...10 s
0,050...1,000 (adjustable via programming keys or analog input)
0,800...1,200 (adjustable via programming keys or analog input)
One-color-, Two-color-mode, Attenuation monitoring, Alarm, Average,
Peak hold, Valley hold, Advanced peak hold with threshold and
hysteresis
(adjustable via programming keys or software)
optris CTratio – E2013-04-A
2)
2)
9
