Chapter 2: Jumpers and Connectors

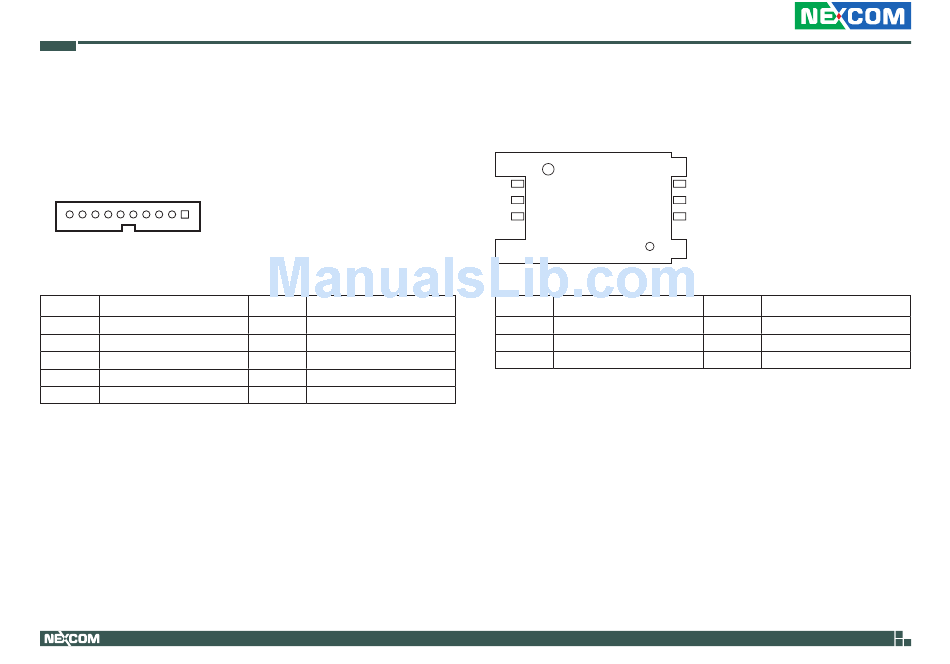

Post Code Debug Connector
Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J9
10
1
Pin
Definition
1
GND
3
LPC_CLK
5
LPC_AD3
7
LPC_AD1
9
VCC3
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
PLTRST#
4
LPC_FRAME#
6
LPC_AD2
8
LPC_AD0
10
VCC3
SIM Card Slot
Connector location: CN6
C5
C6
C7
Pin
Definition
C1
UIM_PWR
C3
UIM_CLK
C6
UIM_VCCP
35
C1
C2
C3
Pin
Definition
C2
UIM_RST
C5
GND
C7
UIM_DAT
OPPC 1540HT-J1900/1940HT-J1900 User Manual
