Chapter 3: System Setup
Installing a Mini PCIe Module

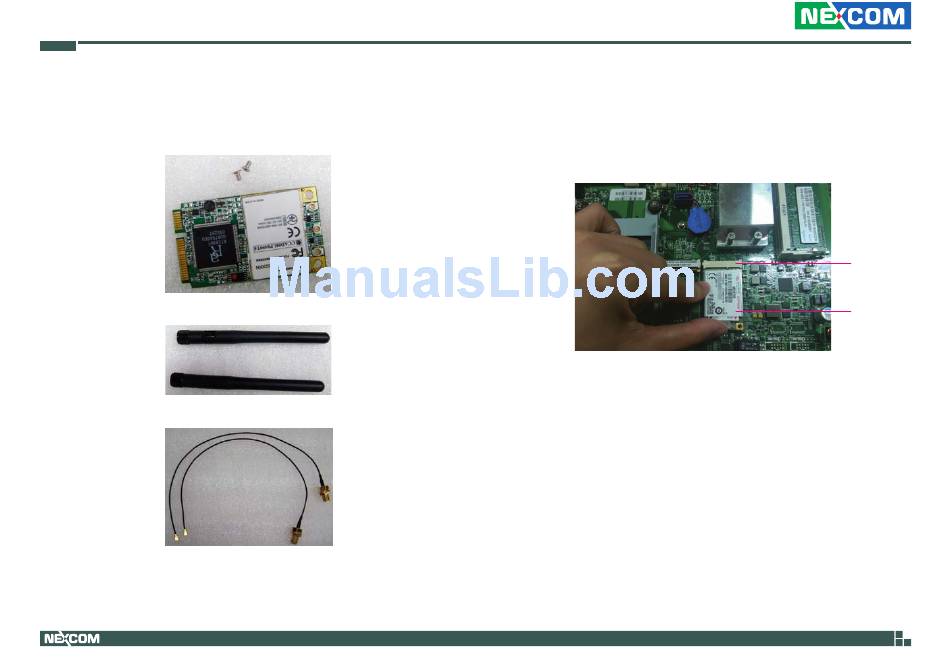

1. The Mini PCIe module package includes the following items.
Mini PCIe Module
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Antennas
RF Cables
2. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees
angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.
50
Mini PCIe
slot
Mini PCIe
module
OPPC 1540HT-J1900/1940HT-J1900 User Manual
