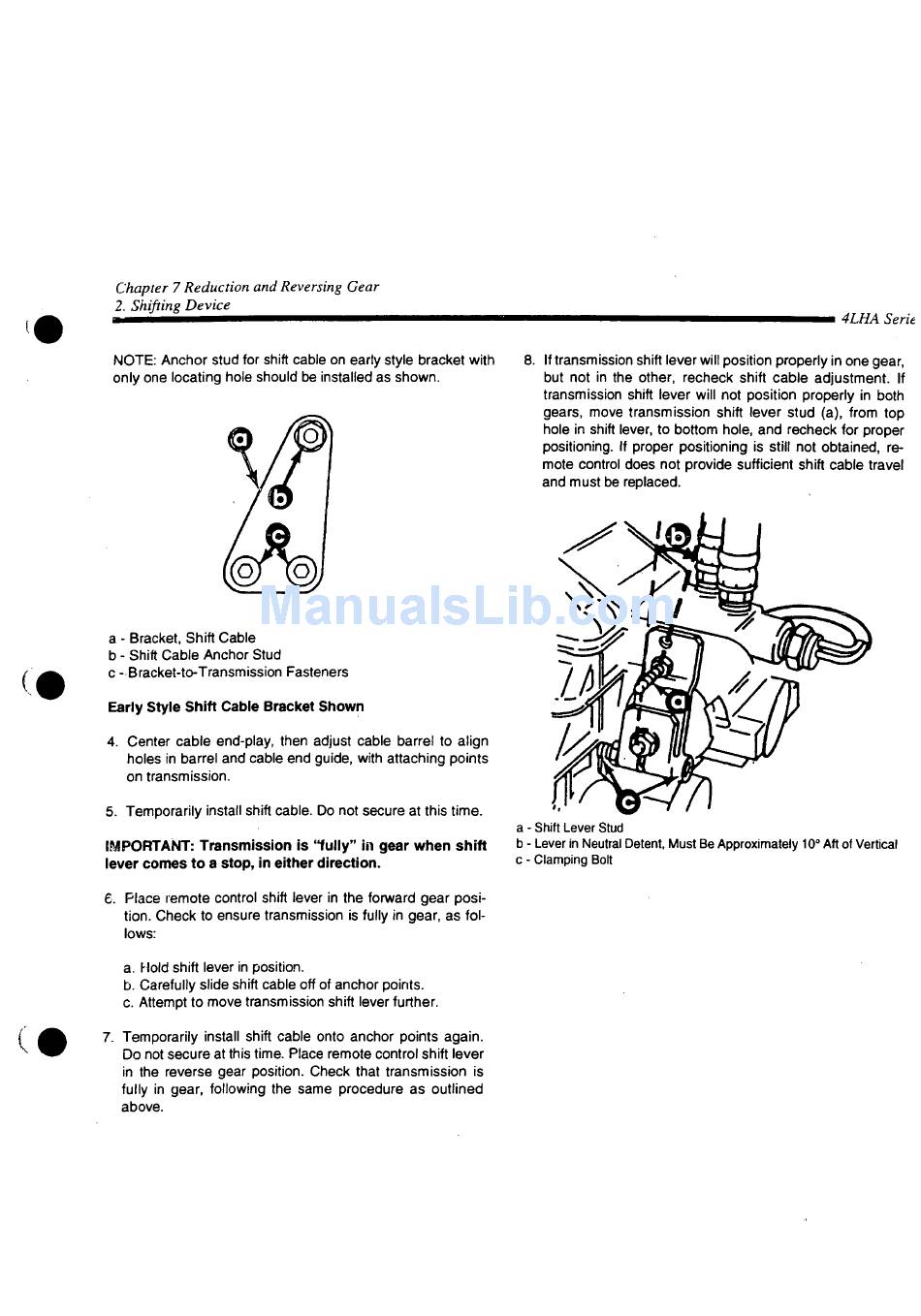

Chapter 7 Reduction and Reversing Gear
2. Shifting Device
NOTE: Anchor stud for shift cable on early style bracket with
only one locating hole should be installed as shown.
a - Bracket, Shift Cable
b - Shift Cable Anchor Stud
c - Bracket-to-Transmission Fasteners
Early Style Shift Cable Bracket Shown
4. Center cable end-play, then adjust cable barrel to align
holes in barrel and cable end guide, with attaching points
on transmission.
5. Temporarily install shift cable. Do not secure at this time.
IMPORTANT: Transmission is "fully" in gear when shift
lever comes to a stop, in either direction.
6. Place remote control shift lever in the forward gear posi-
tion. Check to ensure transmission is fully in gear, as fol-
lows:
a. Hold shift lever in position.
b. Carefully slide shift cable off of anchor points.
c. Attempt to move transmission shift lever further.
7. Temporarily install shift cable onto anchor points again.
(
Do not secure at this time. Place remote control shift lever
in the reverse gear position. Check that transmission is
fully in gear, following the same procedure as outlined
above.
8. If transmission shift lever will position properly in one gear,
but not in the other, recheck shift cable adjustment. If
transmission shift lever will not position properly in both
gears, move transmission shift lever stud (a), from top
hole in shift lever, to bottom hole, and recheck for proper
positioning. If proper positioning is still not obtained, re-
mote control does not provide sufficient shift cable travel
and must be replaced.
a - Shift Lever Stud
b - Lever in Neutral Detent, Must Be Approximately 10° Aft of Vertical
c - Clamping Bolt
4LHA Serie
