Exterior Views - Yanmar 4LHA-HTP Operation Manual

Chapter 1 General

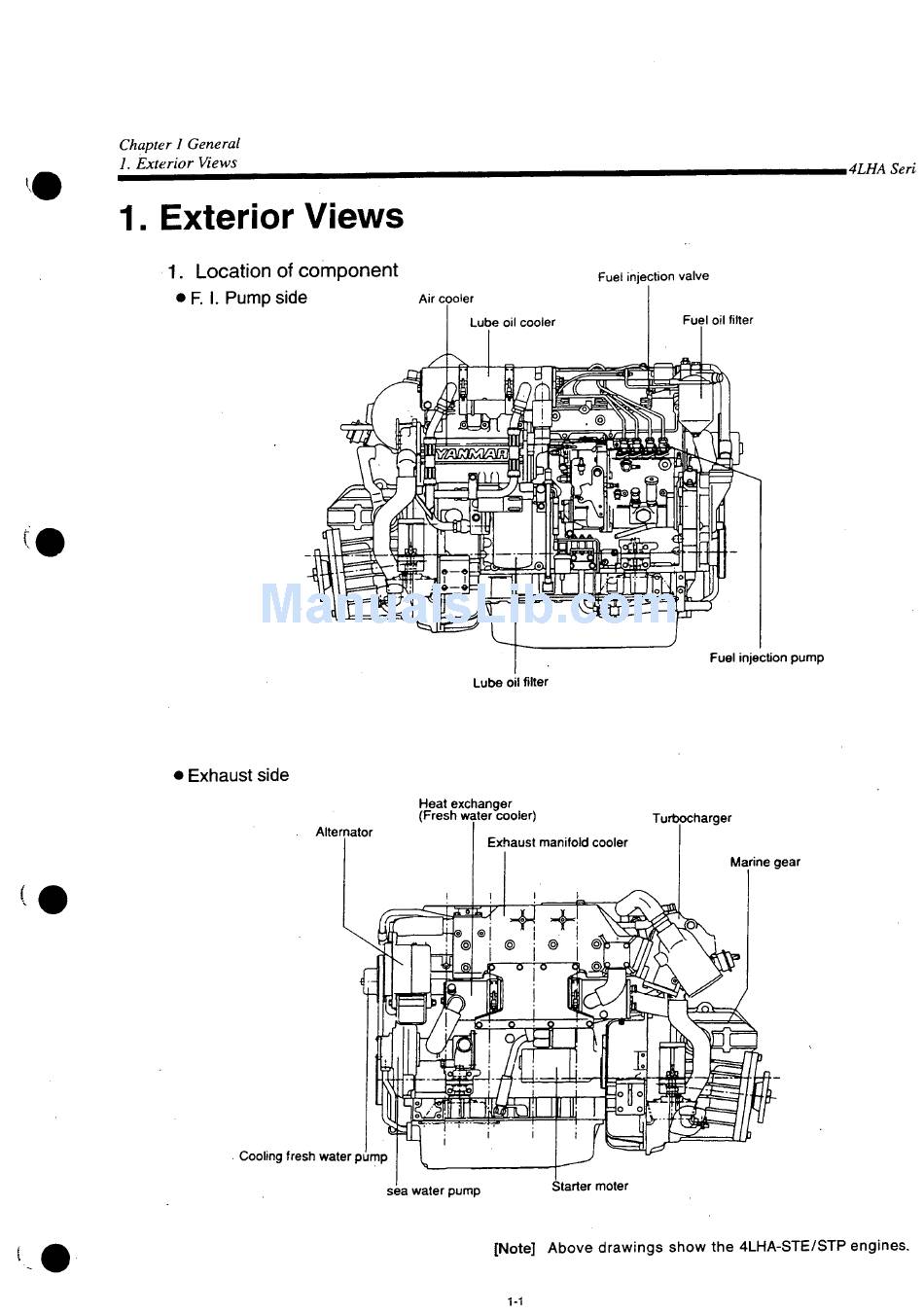

1. Exterior Views

1. Exterior Views
1. Location of component
• F. I. P u m p S i d e
Exhaust side
Cooling fresh water pump
Air cooler
Lube oil filter
Heat exchanger
(Fresh water cooler)
Alternator
sea water pump
Fuel injection valve
Turbocharger
Starter moter
[Note] A b o v e d r a w i n g s s h o w t h e 4 L H A - S T E / S T P e n g i n e s .
,4LHA Seri
Fuel oil filter
Fuel injection pump
Marine gear
