Chapter 7 Reduction and Reversing Gear

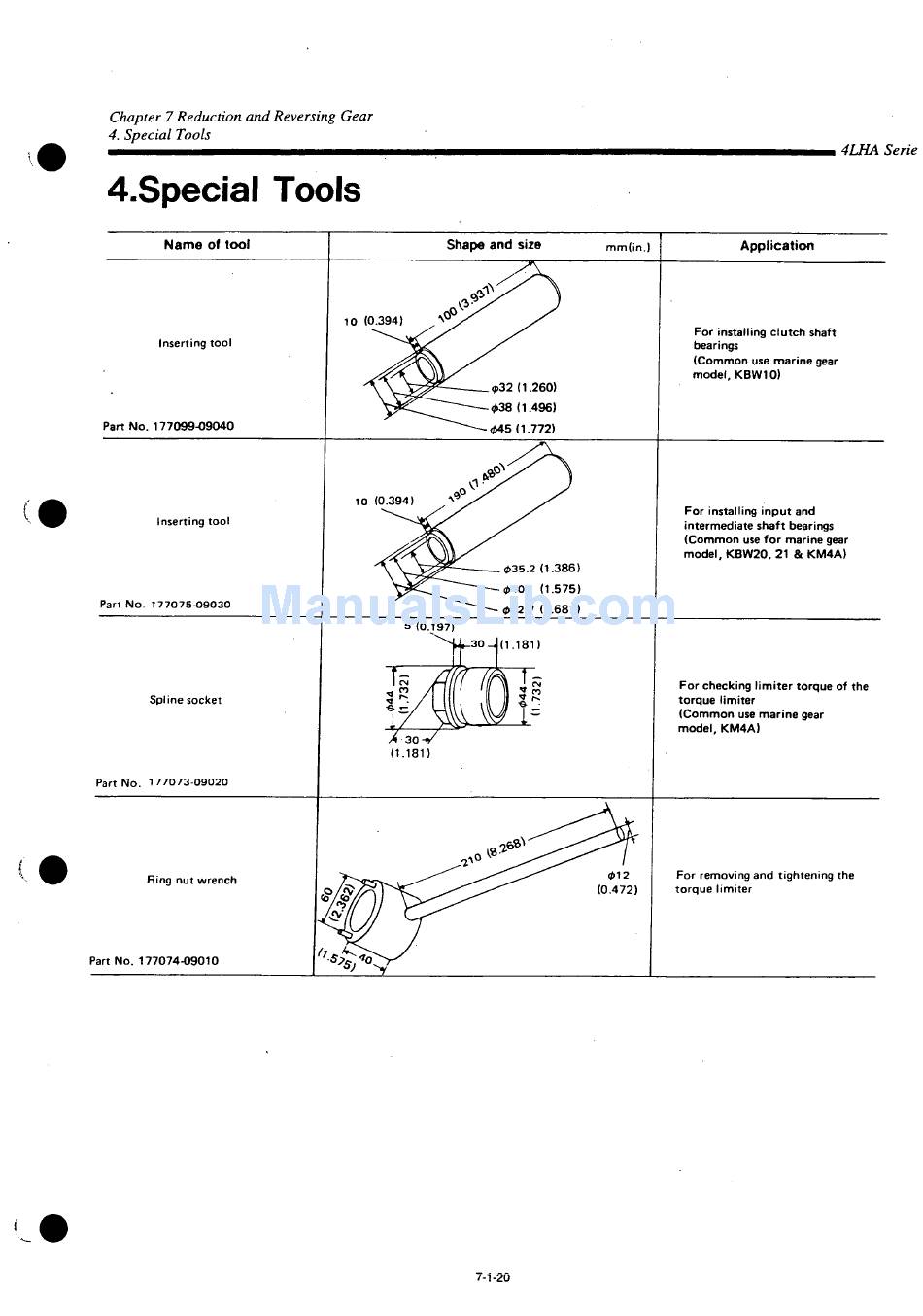

4. Special Tools

4.Special Tools
Name ol tool
Inserting tool
Part N o . 177099-09040
Inserting tool
Part N o . 177075 09030
Spline socket
Part N o . 177073 09020
Ring nut wrench
Part N o . 177074-09010
Shape and size
10 (0.394)
-_032 (1.260)
038 (1.496)
045 (1.772)
10 (0.394)
035.2 (1.386)
040
042.7 (1.681)
5 (0.197)
3 0 ^ (1.181)
-. co A I 1 1 ^ n
•<t
i
A 30 V
(1.181)
7-1-20
mm(in.)
For installing clutch shaft
bearings
(Common use marine gear
model, K B W 1 0 )
For installing input and
intermediate shaft bearings
(Common use f o r marine gear
model, K B W 2 0 , 21 & K M 4 A )
(1.575)
F o r checking limiter torque of the
torque limiter
(Common use marine gear
model, K M 4 A )
012 For removing and tightening the
torque limiter
(0.472)
4LHA Serie
Application
