4.8 Operation Procedure

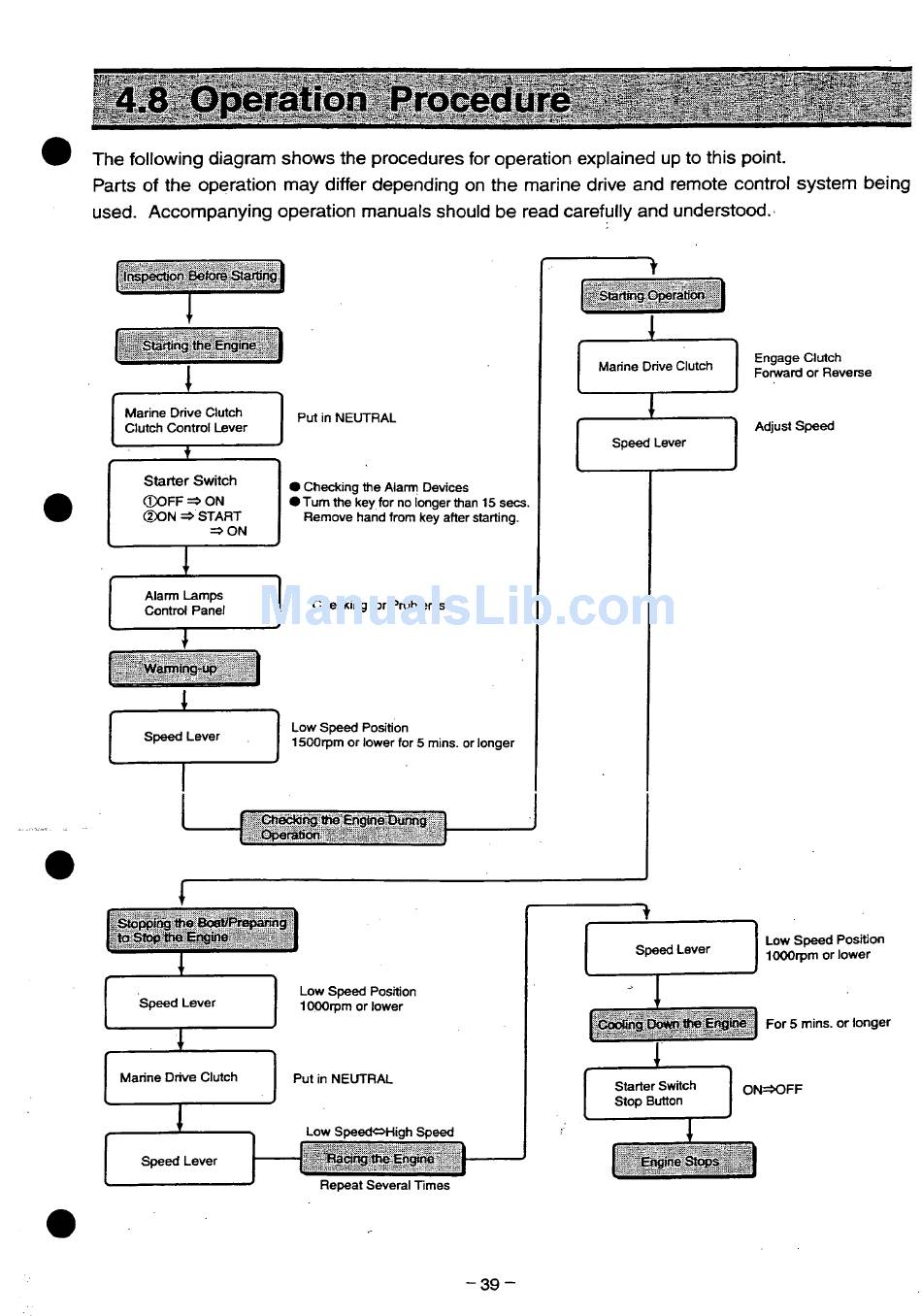

The following diagram shows the procedures for operation explained up to this point.
Parts of the operation may differ depending on the marine drive and remote controi system being
used. Accompanying operation manuals should be read carefully and understood.
Incpecfcn Bvl'irt S l j r i i n i j l
t t i t i m ; thf> E r g m t
Marine Drive Clutch
Clutch Control Lever
Starter Switch
(DOFF => O N
© O N =*• S T A R T
=>ON
Alarm Lamps
Control Panel
Warming-up
Speed Lever
Checking the Engine Dunng
Operation
Stopping the Boat/Prepanng
to Stop the Engine
I
Speed Lever
~~r~
Marine Drive Clutch
I
Speed Lever
Put in NEUTRAL
t Checking the Alarm Devices
• Tum the key for no longer than 15 sees.
Remove hand from key after starting.
Checking for Problems
Low Speed Position
1 SOOrpm or lower for 5 mins. or longer
Low Speed Position
lOOOrpm or lower
Put in N E U T R A L
Low SpeecKs+High Speed
Racing the Era.nt.
Repeat Several Times
- 3 9 -
I
Starting Operation I
Engage Clutch
Marine Drive Clutch
Forward or Reverse
Adjust Speed
Speed Lever
Low Speed Position
Speed Lever
lOOOrpm or lower
Cooling Down the Engine*| For 5 mins. or longer
Starter Switch
ON=*OFF
Stop Button
I
Engine Stops
